| Markenname: | NO |
| Model Number: | K04 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Size: | 37.84/50.96mm | Type: | Turbochargers |
|---|
1. MODEL:K04 forward

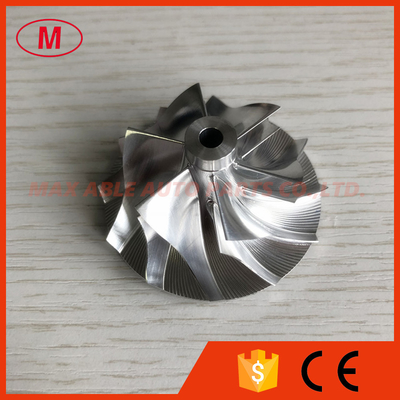

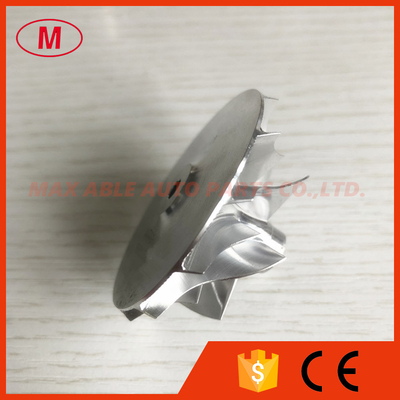

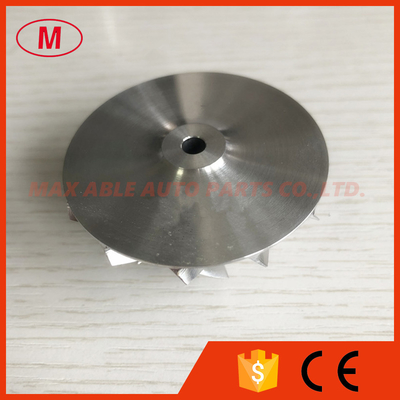

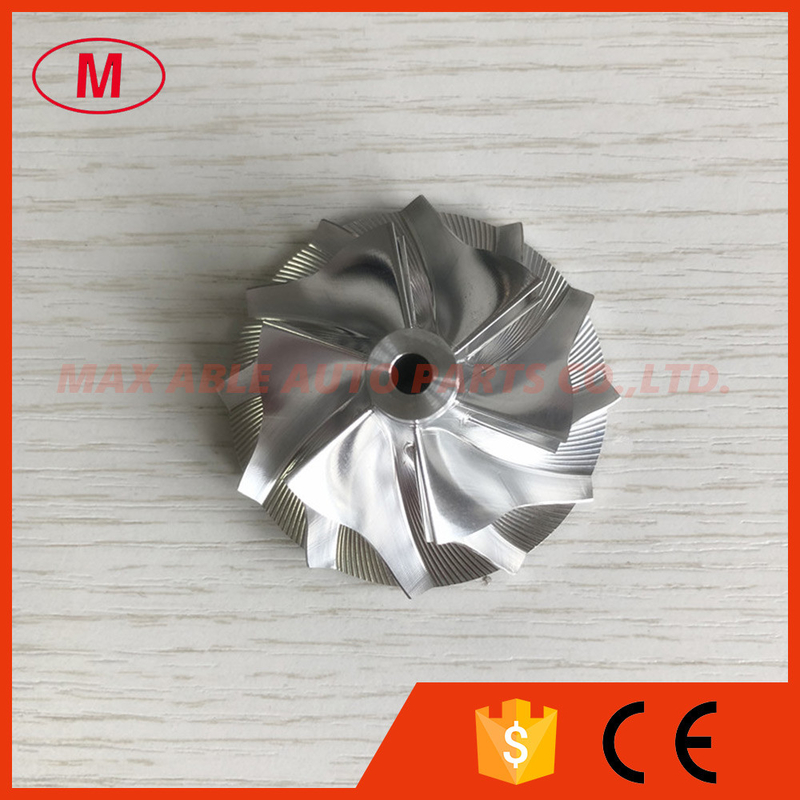

2.K04 5304-123-2043 37.84/50.96mm 6+6 blades turbo billet/milling/aluminum 2618 compressor wheel for 5303-988-0099/102/110/112/117/118/122/142/150/151/162, 5304-988-0057
3.Size:
Nose diamter:10.74mm
inducer:37.84mm
Exduder:50.96mm
Tapered tip exducer:53.00mm
Tip height:4.14mm
Superback:1.80mm
Overall height:25.70mm
bore size :4.61mm
bore type:through
Trailing Angle:45
Cutback:0.0
Blades height:18.20mm
Splitter height:11.50mm
SP Height angle:-5.20
6+6 blades
forward rotation
Fit for OE compressor housing
Tapered tip Angle:18 degree
Forward rotation
Application:
5303-988-0099
5303-988-102
5303-988-110
5303-988-112
5303-988-117
5303-988-118
5303-988-122
5303-988-142
5303-988-150
5303-988-151
5303-988-162
5304-988-0057
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
All the billet compressor wheels have been balanced
The more models we also have.
