| Place of Origin: | CHINA |
| Markenname: | NO |
| Model Number: | HX82 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
1. MODEL:HX82 Forward

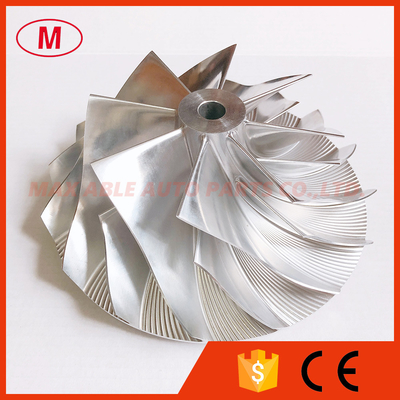

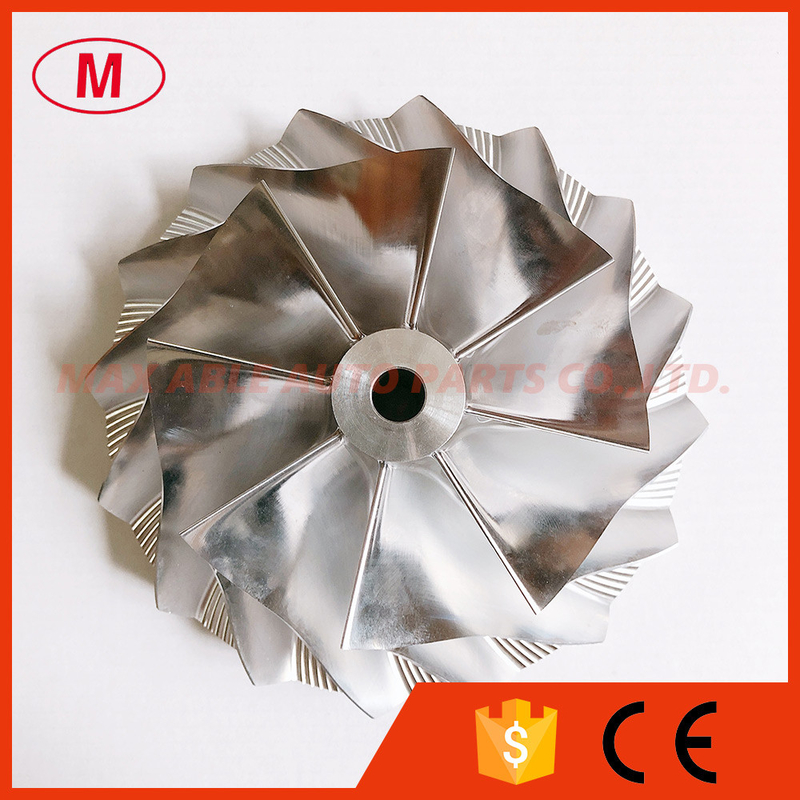

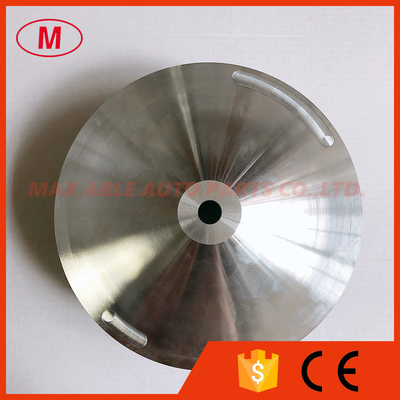

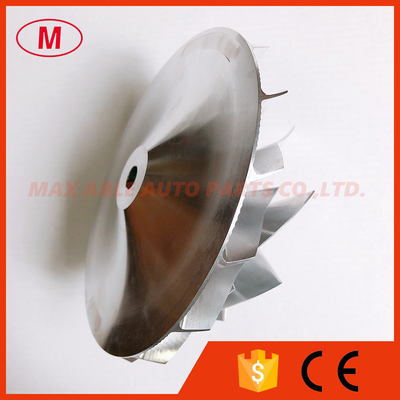

2.HX82 106.56/152.04mm 8+8 blades Turbo milling/aluminum 2618 /billet compressor wheel
3.Size:
Nose diameter:27.64mm
Inducer:106.56mm
Exducer:152.04mm
Tapered tip exducer:156.80mm
Tip height:11.80mm
Superback:10.08mm
Overall height:63.37mm
Bore size:11.12mm
Trailing angle:55
Blade height:50.48mm
Cutback:0.0
SP height angle:-1.00
Splitter height:28.45mm
8+8 blades
Forward rotation
Tapered tip angle:13 degree
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.Any questions please send email to me
We can produce as your requirement.
All the compressor wheel have been balanced.
