| Model Number: | GT15-25 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 10000pcs |
1.Model:GT15-25 forward

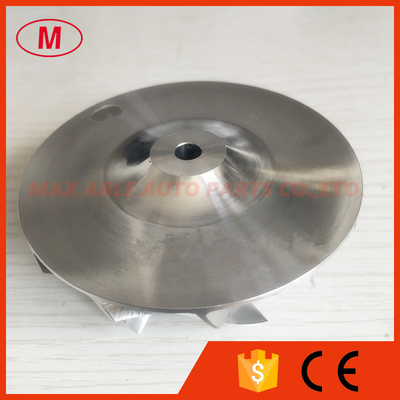

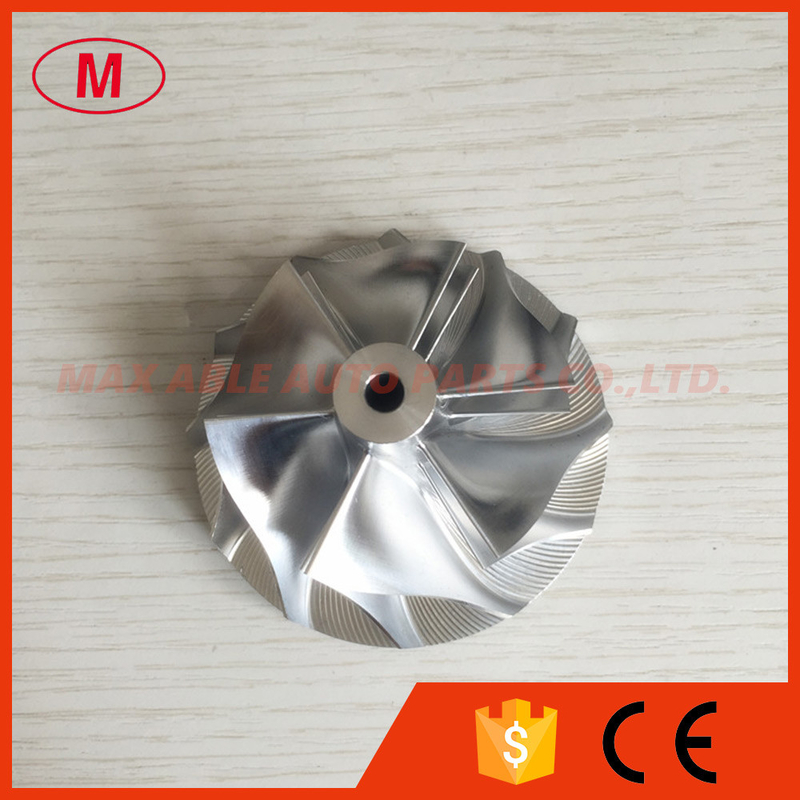

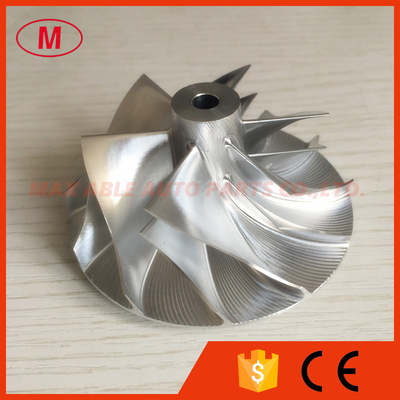

2. GT15-25 50.20/65.00mm 6+6 Blades 702549-0008HF V1 turbo billet/aluminum 2618/milling compressor wheel
3.Size:
Nose diameter:13.50mm
Inducer:50.20mm
Exducer:65.00mm
Tip height:5.94mm
Superback:3.68mm
Overall height:32.28mm
Bore:5.08mm
bore type:through
Trailing angle:60 degree
Cutback:1.0
SP Height angle:-4.30
Blades height:23.02mm
Splitter height:15.70mm
6+6 blades forward
Tapered tip angle:0 degree
It is custom size ,please check carefully before buying.
4.Good quality and competitive price
5.if you want to know more details ,please send email to me !
6.Application:
702549-0008HF
All the compressor wheels have been balanced.
