| Model Number: | CT10 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
| Size: | 42.87/62.00mm | Type: | Turbochargers |
|---|
1. MODEL:CT10 Forward

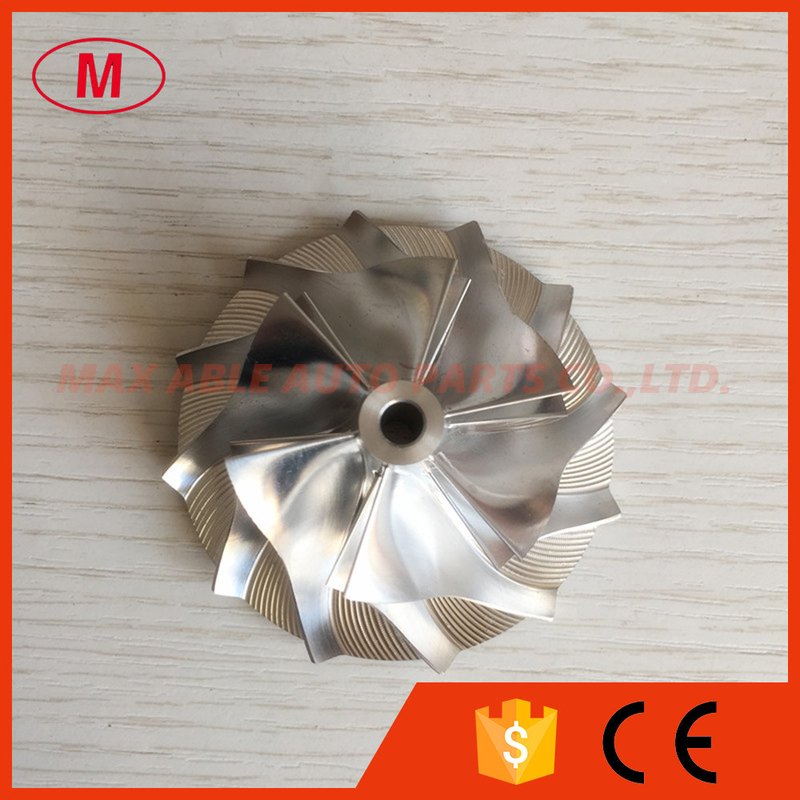

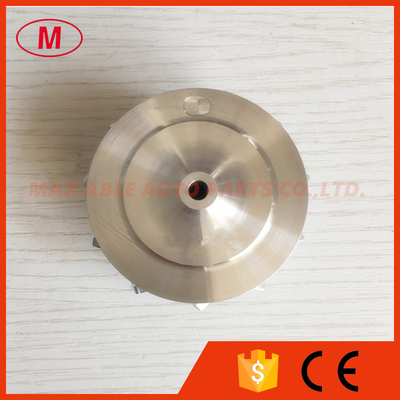

2.CT10 17291-0L020HF 42.87/62.00mm 6+6 blades turbo milling/aluminum 2618/billet compressor wheel for Upgrade 17201-0L020
3.Size:
Nose diameter:10.22mm
inducer:42.87mm
Exducer:62.00mm
Tapered tip Exducer:65.59mm
Tip height:3.98mm
Superback:2.45mm
Overall height:26.61mm
Bore size:5.10mm
bore type:through
Trailing angle:50 degree
Blades height:22.15mm
Cutback:0.0
Splitter height:15.40mm
Sp height angle:-6.00
6+6 blades
forward rotation
Tapered tip angle:30 degree
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.Any questions please send email to me,we have many size.
All the compressor wheels have been balanced.
