| Model Number: | TF035 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Type: | Turbochargers |
|---|

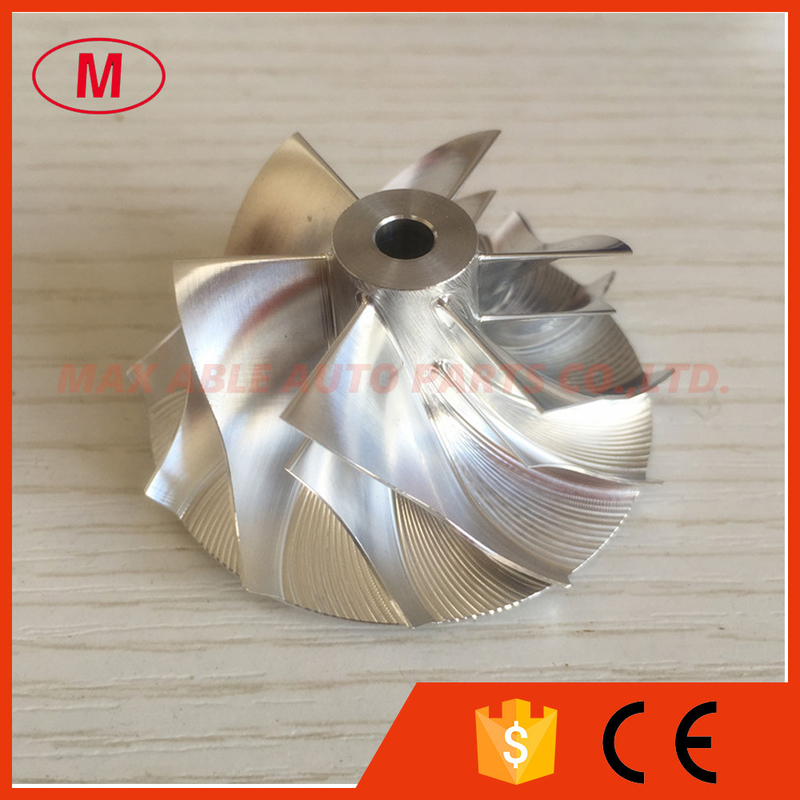

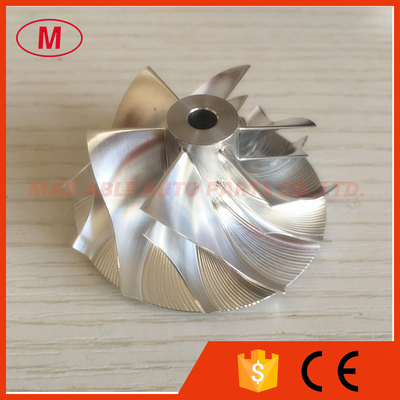

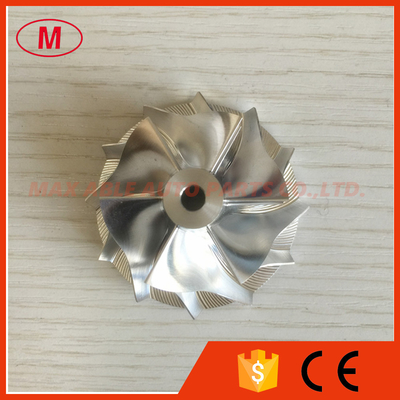

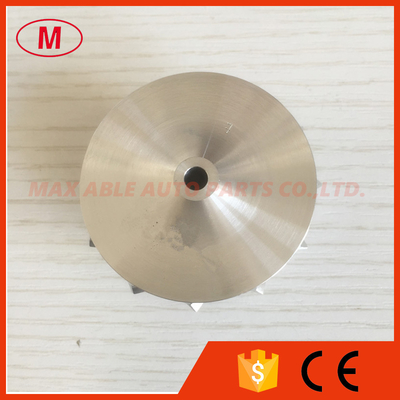

1. MODEL:TF035 13T Forward
2. TF035 13T 49377-00018 38.23/50.97mm 5+5 blades high performance design Turbo Billet/milling/alumin 2618 compressor wheel for 49135-05610, 49135-05611, 49135-05620, 49135-05621, 49135-05630, 49135-05631, 49135-05640, 49135-05641, 49135-05650, 49135-05651, 49135-05660, 49135-05661, 49135-05670, 49135-05671, 49135-05801, 49135-05801, 49135-05810, 49135-05830, 49135-05840, 49135-05841, 49135-05845, 49135-05850, 49135-05851, 49135-05860, 49135-05861, 49135-05865, 49135-05866, 49135-05870, 49135-05871, 49135-05875, 49135-05880, 49135-05881, 49135-05885, 49135-05886, 49135-05890, 49135-05891, 49135-05895, 49135-05896, 49335-00100, 49335-00200, 49335-00201, 49335-00230, 49335-00240, 49335-00241, 49335-00420, 49335-00430, 49335-00431, 49335-00440, 49335-00441, 49377-07401, 49377-07402, 49377-07403
3.Size:
Nose diameter:9.95mm
Inducer:38.23mm
Exducer:50.97mm
Tappered tip exducer :53.69mm
bore size :5.00mm
bore type:through
Superback:2.05mm
Tip height:3.36mm
Overall height:24.16mm
Trailing angle:45
Cutback:0.0
SP Height angle:-8.50
Blades height:20.13mm
Splitter height:14.60mm
5+5 blades
forward rotation
Tapered tip angle:30 degree
Fits OE Compressor Housing
4.High quality and competitive price.
5.Any questions please send email to me.
6.Application: TF035 13T 49377-00018 38.23/50.97mm 5+5 blades high performance design Turbo Billet compressor wheel for BMW 49135-05671/320D
