| Place of Origin: | CHINA |
| Markenname: | NO |
| Model Number: | GT15-25 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT/western union/paypal |
| Supply Ability: | 1000 |
1. MODEL:GT15-25 forward

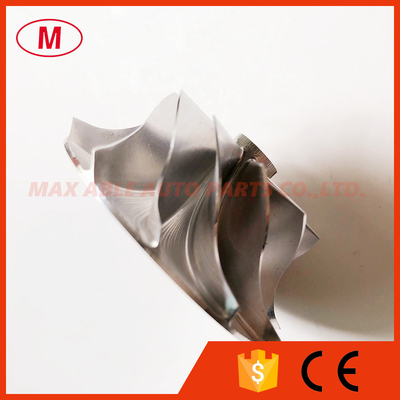

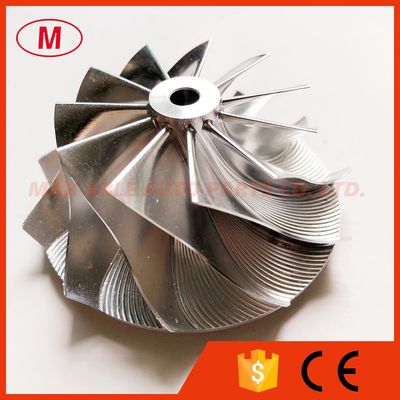

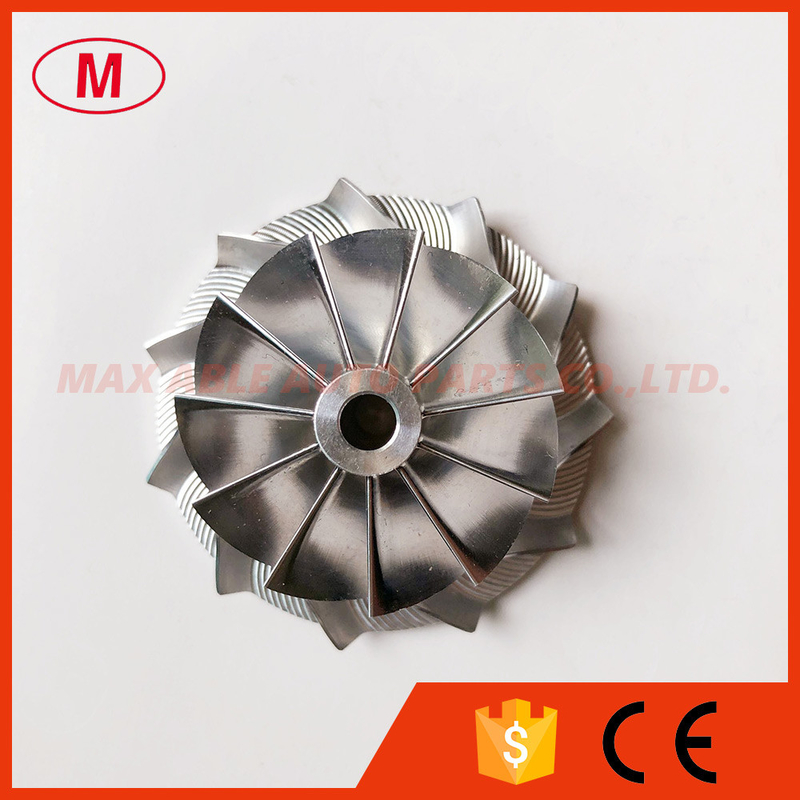

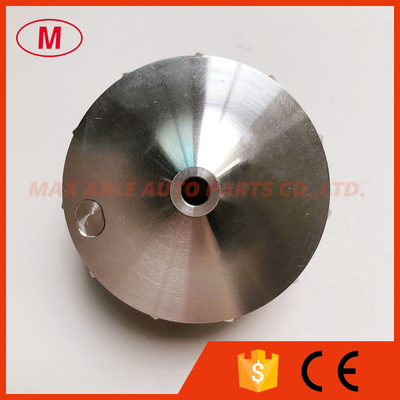

2.GT15-25 36.30/49.00mm 11+0 blades high performance turbo billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:9.70mm
inducer:36.30mm
Exduder:49.00mm
Tapered tip exducer:52.21mm
Tip height:3.78mm
Superback:2.40mm
Overall height:24.90mm
bore size :5.08mm
Trailing Angle:55 degree
Cutback:4.5
SP height angle:0.00
Blade height:20.26mm
Splitter height:0.00
11+0 blades
Forward rotation
It is custom size ,please check carefully before buying.
Tapered tip Angle:30 degree
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
