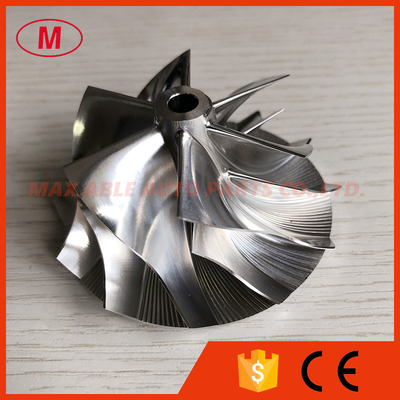

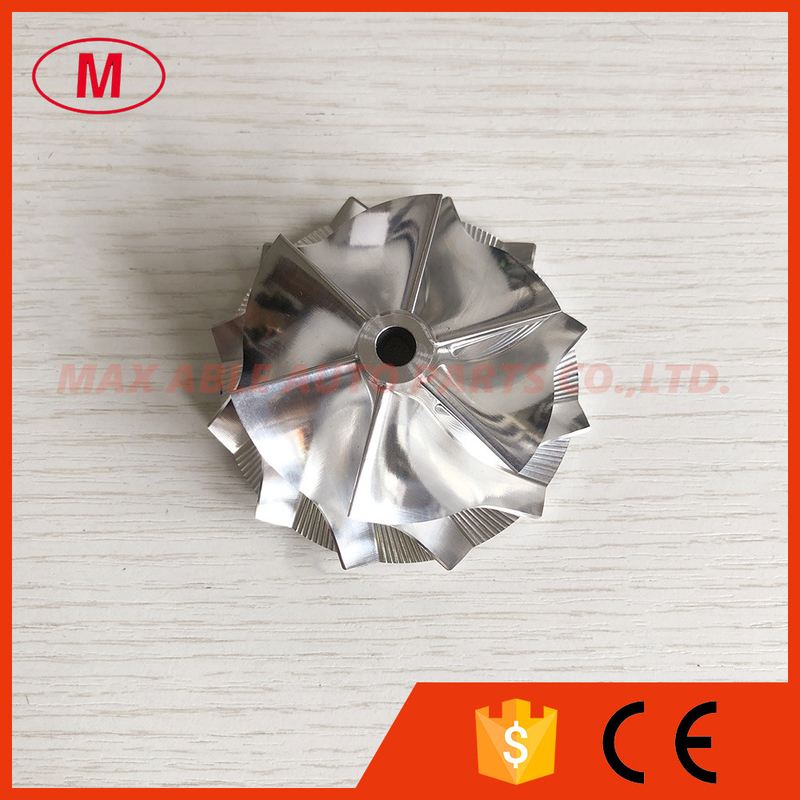

TD05H 56.00/70.00mm 6+6 blades Turbocharger milling/aluminum 2618/Billet compressor wheel

TD05H 56.00/70.00mm 6+6 blades Turbocharger milling/aluminum 2618/Billet compressor wheel

    • TD05H 56.00/70.00mm 6+6 blades Turbocharger milling/aluminum 2618/Billet compressor wheel
    • TD05H 56.00/70.00mm 6+6 blades Turbocharger milling/aluminum 2618/Billet compressor wheel
    • TD05H 56.00/70.00mm 6+6 blades Turbocharger milling/aluminum 2618/Billet compressor wheel
    • TD05H 56.00/70.00mm 6+6 blades Turbocharger milling/aluminum 2618/Billet compressor wheel

    Produktdetails:

    Place of Origin: CHINA
    Markenname: NO
    Model Number: TD05H

    Zahlung und Versand AGB:

    Minimum Order Quantity: 1pcs
    Packaging Details: neutral packing
    Delivery Time: 3-7 days
    Payment Terms: TT/western union/paypal
    Supply Ability: 1000
    Kontakt
    Ausführliche Produkt-Beschreibung

    1. MODEL:TD05H Forward
    2.TD05H 56.00/70.00mm 6+6 blades Turbocharger milling/aluminum 2618/Billet compressor wheel
    3.Size:
    Nose diameter:12.25mm
    Inducer:56.00mm
    exducer:70.00mm
    Tapered tip exducer:74.79mm
    Tip height:5.50mm
    Superback:2.80mm
    bore size :6.50mm
    Overall height:37.00mm
    Trailing angle:45
    Cutback:2.8
    SP height angle:-5.90
    Splitter height:19.10mm
    Blade height:31.08mm
    6+6 blades forward
    Tapered tip angle:28 degree
    It is for custom size ,please check carefully before buying.
    4.High quality and competitive price.
    5.if you want more details, please send email to me.

    All the compressor wheel have been balanced.
    TD05H 56.00/70.00mm 6+6 blades Turbocharger milling/aluminum 2618/Billet compressor wheelTD05H 56.00/70.00mm 6+6 blades Turbocharger milling/aluminum 2618/Billet compressor wheelTD05H 56.00/70.00mm 6+6 blades Turbocharger milling/aluminum 2618/Billet compressor wheel
