| Place of Origin: | CHINA |
| Markenname: | NO |
| Model Number: | K04 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days after payment |
| Payment Terms: | TT/western union/paypal |
| Supply Ability: | 1000 |
1. MODEL:K04 forward

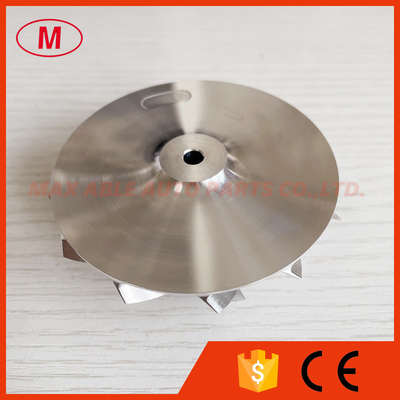

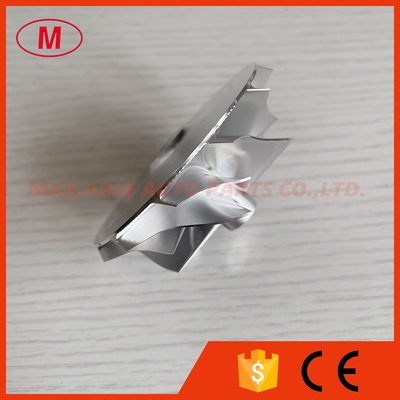

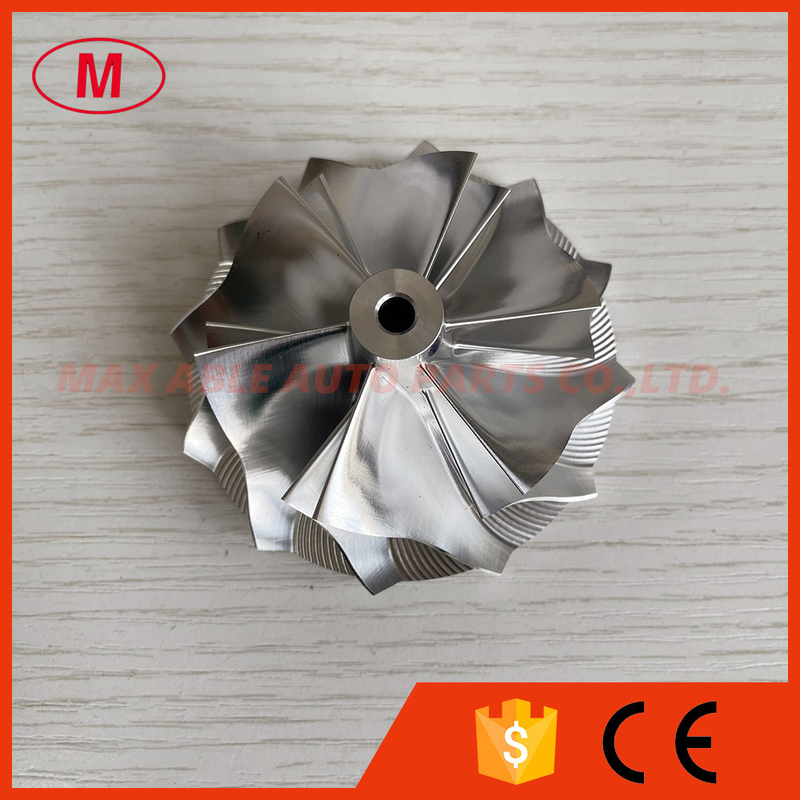

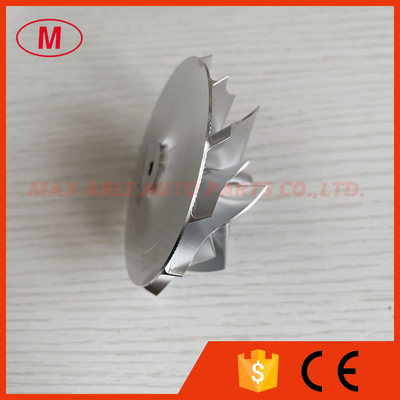

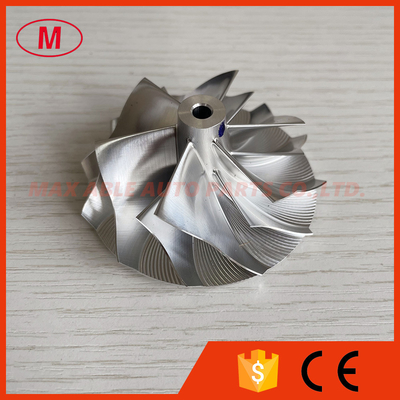

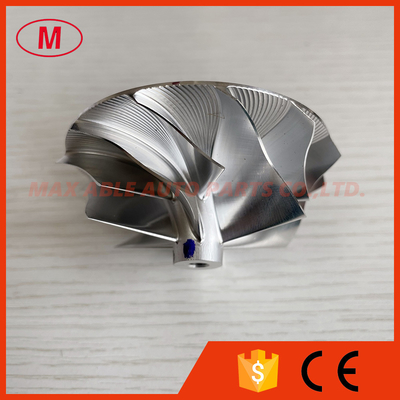

2.K04 54.20/66.56mm 6+6 blades turbo milling/aluminum 2618/billet compressor wheel
3.Size:
Nose diameter:11.80mm
inducer:54.20mm
Exduder:66.56mm
Tapered tip exducer:70.56mm
Tip height:4.93mm
Superback:2.67mm
Overall height:31.06mm
bore size :4.61mm
bore type:through
Trailing Angle:45 degree
Cutback:8.0
SP height angle:-4.00
Blade height:23.75mm
Splitter height:15.35mm
6+6 blades
forward rotation
Tapered tip angle:27 degree
It is Custom size,please check carefully before buying
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
