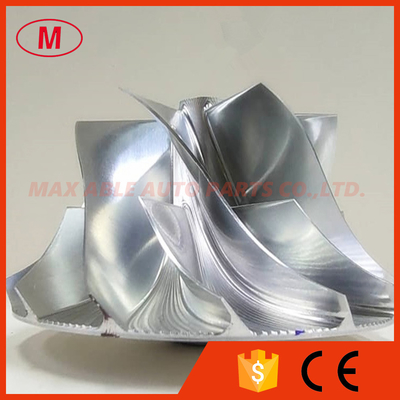

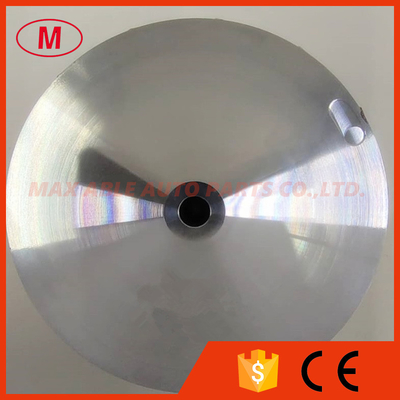

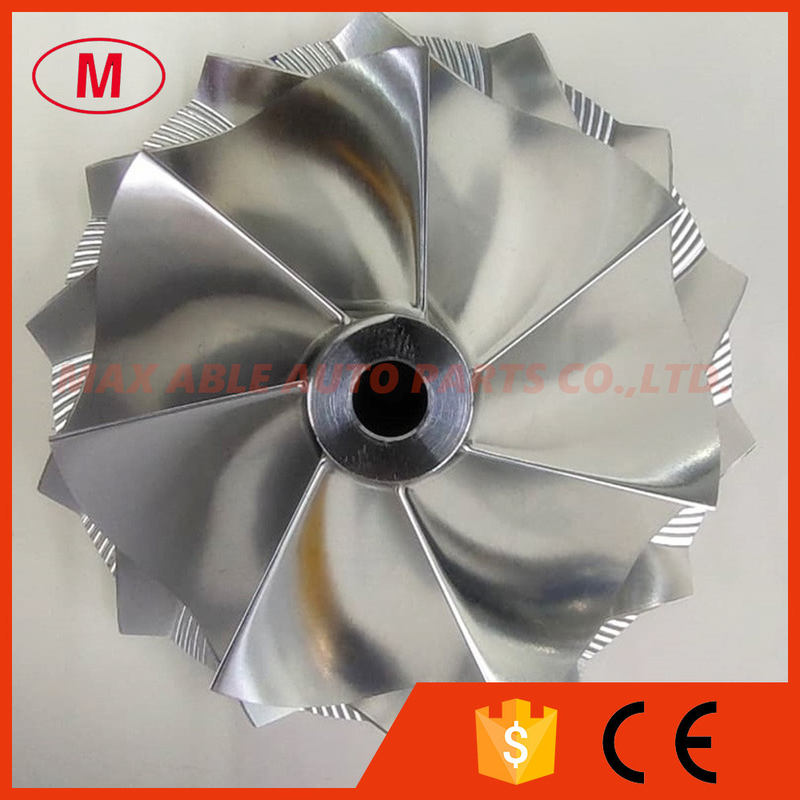

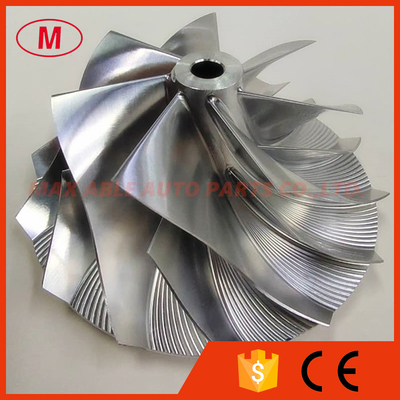

HE451 7+7blades 66.87/93.00mm high performance turbo milling/aluminum 2618/billet compressor wheel

3.Size:

Nose diamter:15.50mm

inducer:66.87mm

Exduder:93.00mm

Tapered tip exducer:97.79mm

Tip height:5.15mm

Superback:6.27mm

Overall height:44.90mm

bore size :7.00mm

bore type:through

Trailing angle:45 degree

Cutback:3.5mm

SP height angle:0.00

Blade height:36.30mm

Splitter height:18.20mm

It is custom size ,please check carefully before buying.

7+7 blades

Forward rotation

Tapered tip angle:30 degree

4.High quality and competitive price.

5.if you want more details, please send email to me.

We can produce as your requirement.

The more models we also have.

All the billet compressor wheels have been balanced.
