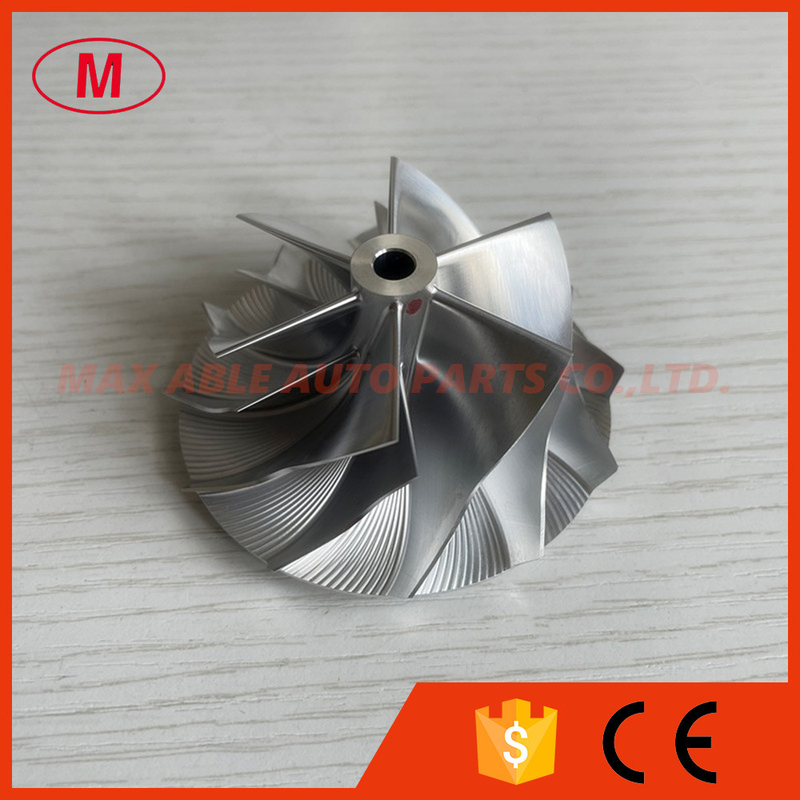

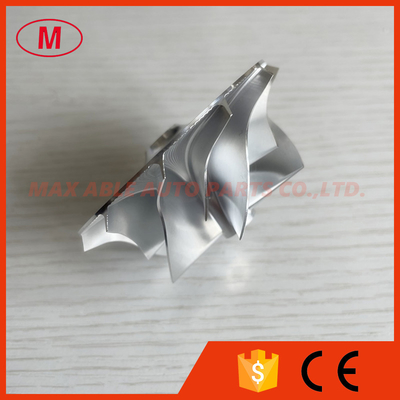

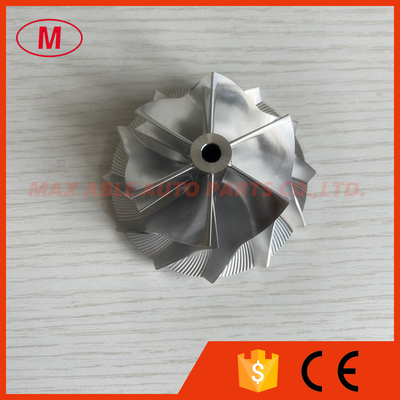

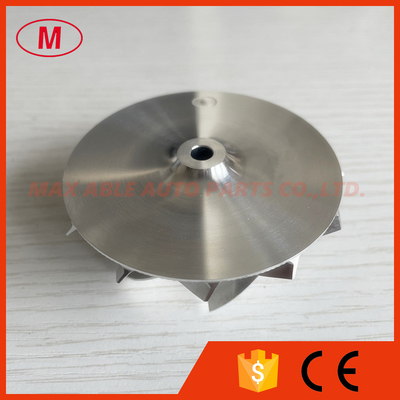

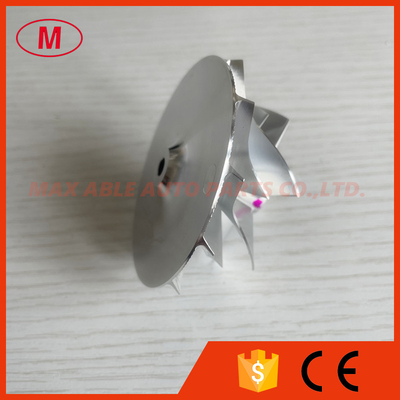

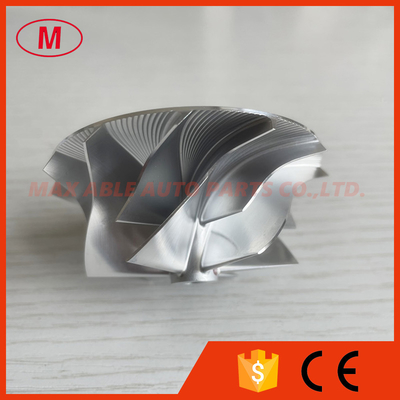

K16 reverse 51.80/68.00mm 6+6 blades turbo milling/alumimun 2618 /billet compressor wheel

3.Size:

Nose diamter:11.60mm

inducer:51.80mm

Exduder:68.00mm

Tapered tip exducer:72.08mm

Tip height:4.53mm

Superback:3.81mm

Overall height:33.40mm

bore size :5.41mm

bore type:through

Trailing Angle:60 degree

Cutback:3.0mm

SP Height Angle:-4.50

Blade height:27.63mm

Splitter Height:18.20mm

6+6 blades

reverse rotation

Tapered tip angle:30 degree

It is custom size ,please check carefully before buying.

4.High quality and competitive price.

5.if you want more details, please send email to me.

We can produce as your requirement.

All the billet compressor wheels have been balanced.
