| Markenname: | NO |
| Model Number: | CT10 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Size: | 40.60/55.69mm | Type: | Turbochargers |
|---|
1. MODEL:CT10 forward

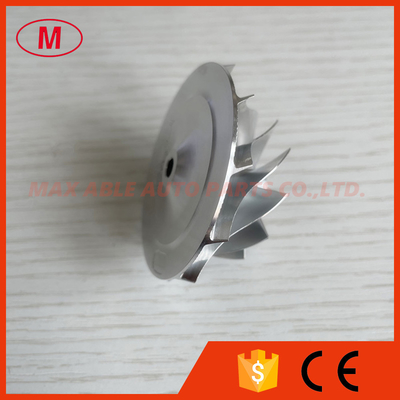

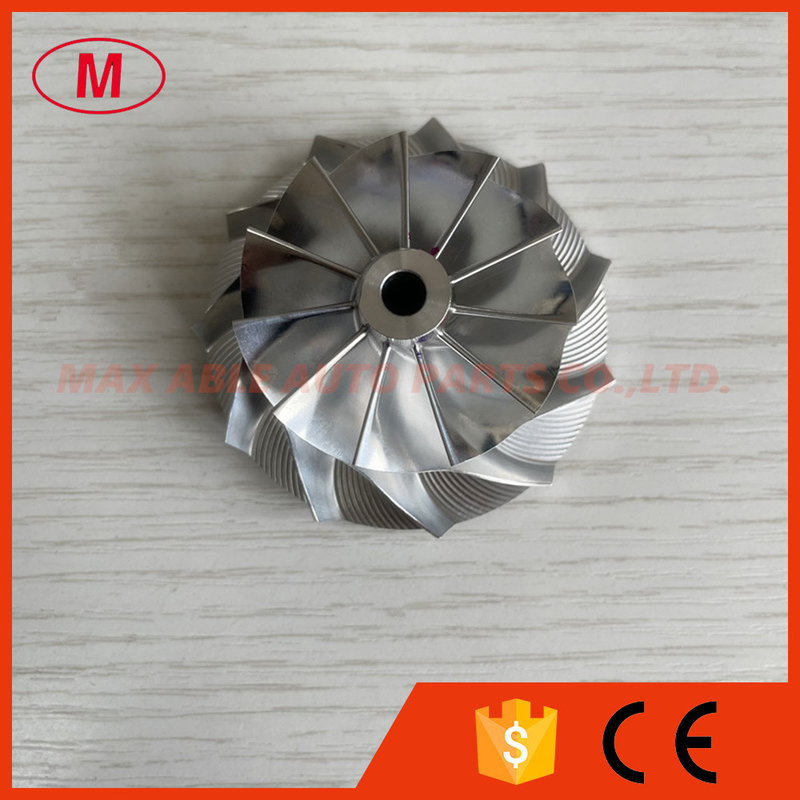

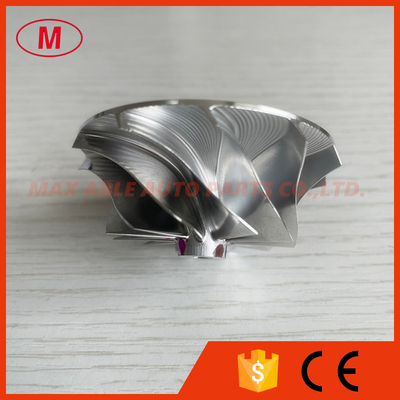

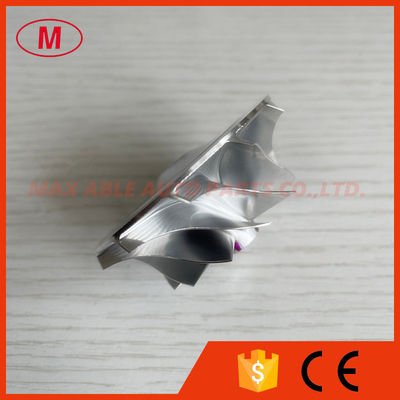

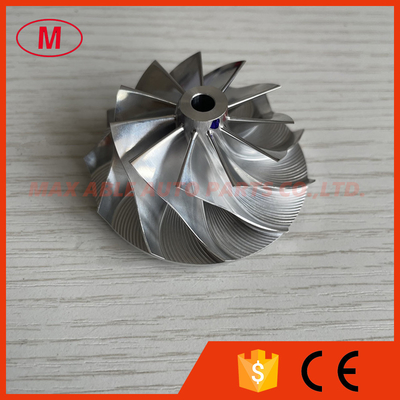

2. CT10 40.60/55.69mm 17201-0L020HF 11+0 blades turbo milling/aluminum 2618/billet compressor wheel FOR Upgrade 17201-0L020
3.Size:
Nose diameter:10.78mm
inducer:40.60mm
Exducer:55.69mm
Tapered tip exducer:58.12mm
Tip height:4.73mm
Superback:2.65mm
Overall height:26.20mm
Bore size:5.10mm
bore type:through
Trailing angle:60 degree
Cutback:0.0mm
Blades height:20.17mm
Splitter height:0.00mm
Sp height angle:0.0
11+0 blades
forward rotation
Tapered tip angle:18 degree
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.Any questions please send email to me,we have many size.
All the compressor wheel have been balanced.
