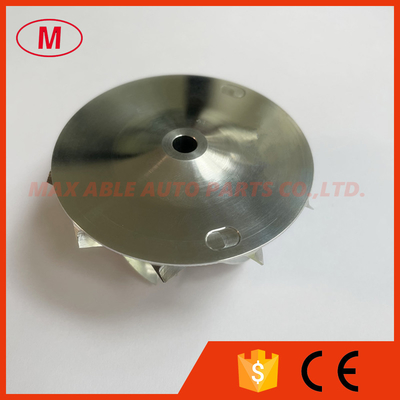

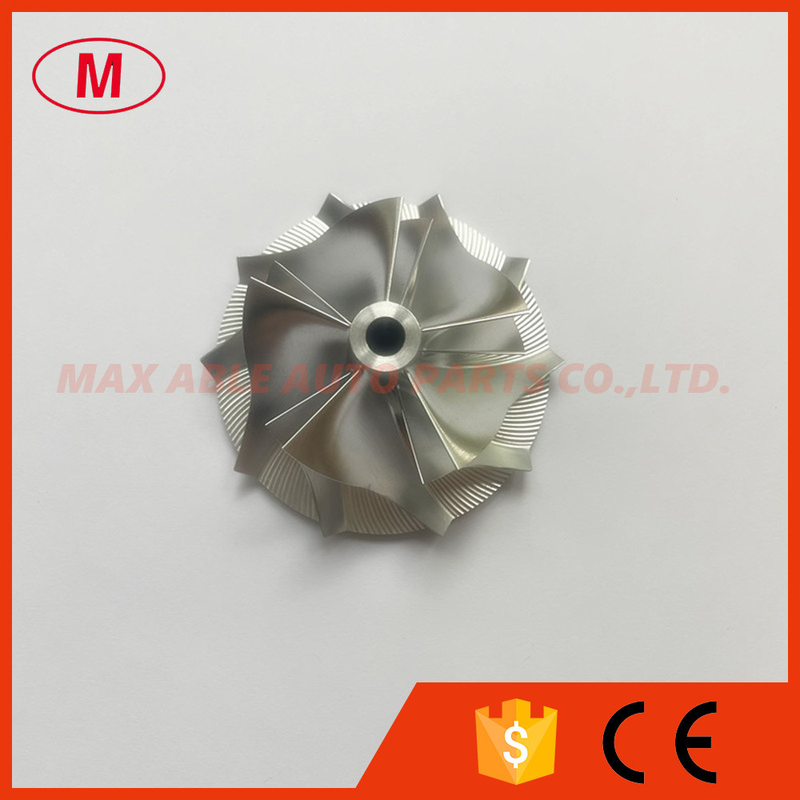

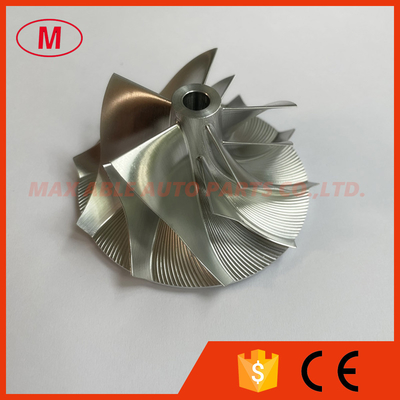

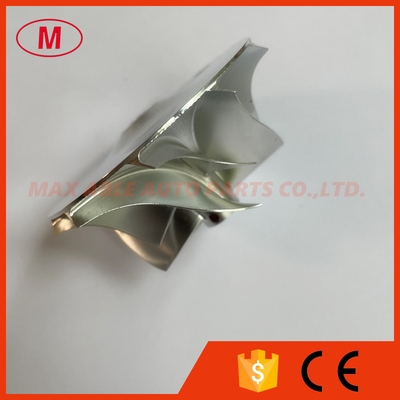

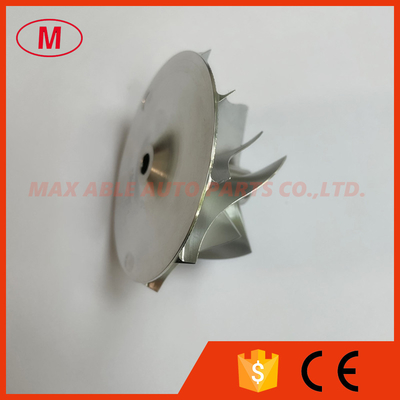

TD05H 18G 50.39/68.01mm 5+5 blades high performance high blade height turbo billet compressor wheel for 49378-01520

TD05H 18G 50.39/68.01mm 5+5 blades high performance high blade height turbo billet compressor wheel for 49378-01520

    • TD05H 18G 50.39/68.01mm 5+5 blades high performance high blade height turbo billet compressor wheel for 49378-01520
    • TD05H 18G 50.39/68.01mm 5+5 blades high performance high blade height turbo billet compressor wheel for 49378-01520
    • TD05H 18G 50.39/68.01mm 5+5 blades high performance high blade height turbo billet compressor wheel for 49378-01520
    • TD05H 18G 50.39/68.01mm 5+5 blades high performance high blade height turbo billet compressor wheel for 49378-01520
    • TD05H 18G 50.39/68.01mm 5+5 blades high performance high blade height turbo billet compressor wheel for 49378-01520
    • TD05H 18G 50.39/68.01mm 5+5 blades high performance high blade height turbo billet compressor wheel for 49378-01520
    • TD05H 18G 50.39/68.01mm 5+5 blades high performance high blade height turbo billet compressor wheel for 49378-01520

    Produktdetails:

    Markenname: NO
    Model Number: TD05H 18G

    Zahlung und Versand AGB:

    Minimum Order Quantity: 1PC
    Packaging Details: neutral packing
    Delivery Time: 3-7 days
    Payment Terms: TT ,western union ,paypal
    Supply Ability: 1000
    Kontakt
    Ausführliche Produkt-Beschreibung
    Size: 40.27/52.00mm Type: Turbochargers



    1.Model:TD05H 18G forward

    2.TD05H 18G 50.39/68.01mm 5+5 blades high performance high blade height turbo billet compressor wheel for 49378-01520

    3.Size:

    Nose diameter:11.96mm

    inducer:50.39mm

    Exduder:68.01mm

    Tappeared tip exducer:72.46mm

    Tip height:4.85mm

    Superback:2.90mm

    Overall height:35.20mm

     bore size :6.50mm

    bore type:through

    Trailing Angel:50 degree

    Cutback:0.0mm

    SP Height angle:-9.10

    Blades height:29.10mm

    Splitter height:21.55mm

    5+5blades

    Forward rotation

    Tapered tip angle:30 degree

    Fit for OE compressor housing

    4.High quality and competitive price.

    5.if you want more details, please send email to me.

    We can produce as your requirement.

     All the billet compressor wheels have been balanced.

    The more models we also have.

    Skype: maxabledieselparts

    Wechat/Whatsapp:+86-18018657719

    TD05H 18G 50.39/68.01mm 5+5 blades high performance high blade height turbo billet compressor wheel for 49378-01520


    TD05H 18G 50.39/68.01mm 5+5 blades high performance high blade height turbo billet compressor wheel for 49378-01520TD05H 18G 50.39/68.01mm 5+5 blades high performance high blade height turbo billet compressor wheel for 49378-01520TD05H 18G 50.39/68.01mm 5+5 blades high performance high blade height turbo billet compressor wheel for 49378-01520TD05H 18G 50.39/68.01mm 5+5 blades high performance high blade height turbo billet compressor wheel for 49378-01520TD05H 18G 50.39/68.01mm 5+5 blades high performance high blade height turbo billet compressor wheel for 49378-01520TD05H 18G 50.39/68.01mm 5+5 blades high performance high blade height turbo billet compressor wheel for 49378-01520
