| Markenname: | NO |
| Zertifizierung: | ISO |
| Model Number: | B03G |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:B03G forward

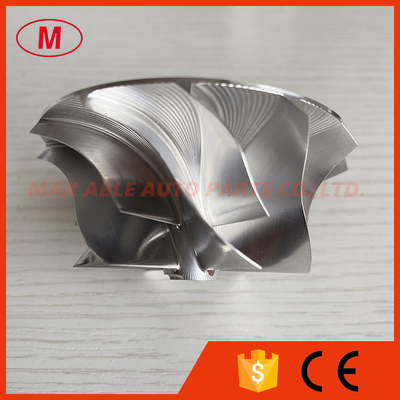

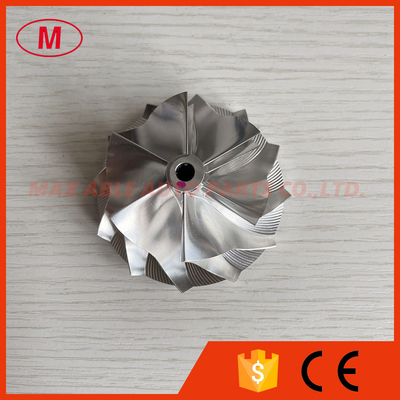

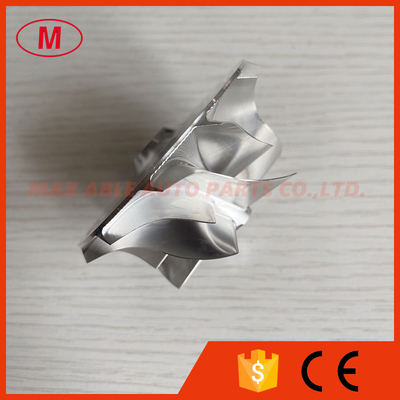

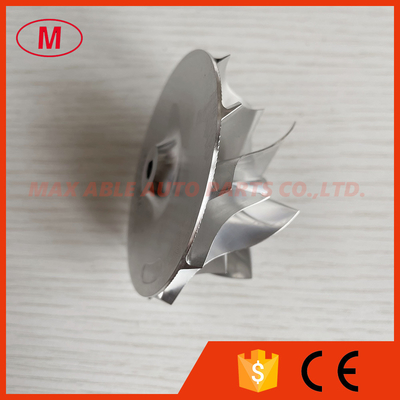

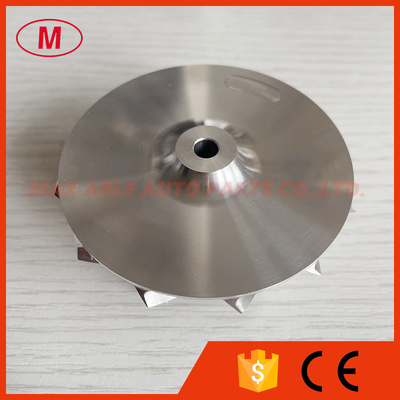

2. B03G 52.01/68.00mm 6+6 blades high performance turbo billet/milling/aluminum 2618 Compressor wheel
Size:
Nose diameter:11.50mm
inducer:52.01mm
Exducer:68.00mm
Tapered tip exducer:72.17mm
Tip height:4.61mm
Superback:4.00mm
Overall height:35.00mm
Bore size:5.61mm
Trailing angle:50 degree
Cutback:0.0mm
SP height angle:0.00
Blade height:28.90mm
Splitter height:19.90mm
6+6 blades
Forward rotation
Tapered tip angle:30 degree
It is custom size ,please check carefully before buying.
3.High quality and competitive price.
4.Any questions please send email to me,we have many size.
All the compressor wheels have been balanced.
