| Markenname: | NO |
| Zertifizierung: | ISO |
| Model Number: | GT15-25 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1.Model:GT15-25 FORWARD

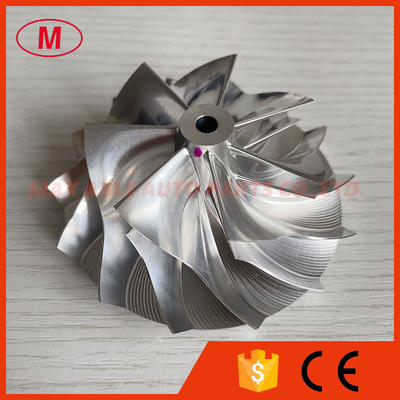

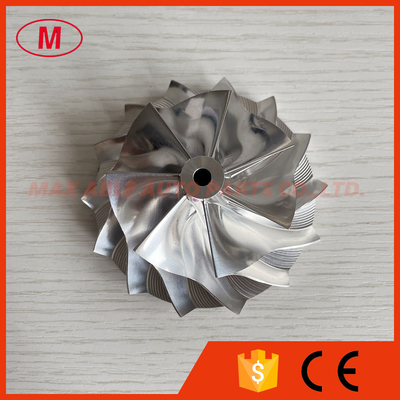

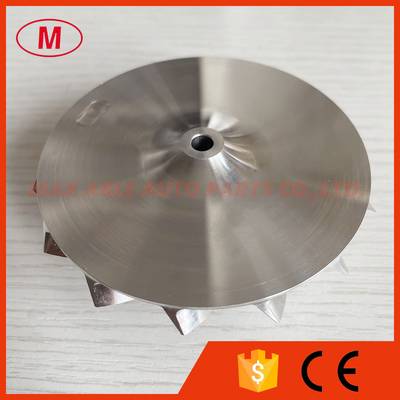

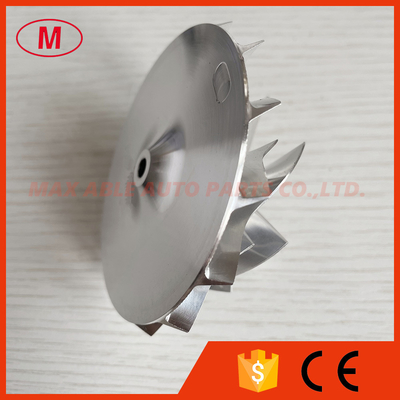

2. GT15-25 56.00/76.00mm 7+7 Blades high performance turbo billet/aluminum 2618/Milling compressor wheel
3.Size:
Nose diameter:12.43mm
Inducer:56.00mm
Exducer:76.00mm
Tapered tip exducer:81.99mm
Tip height:6.19mm
Trailing angle:60 degree
Superback:3.68mm
Bore:5.08mm
bore type:through
Cutback:1.0mm
Overall height:32.28mm
SP Height angle:-4.50
Blades height:26.30mm
Splitter height:17.10mm
7+7 blades
Tapered tip angle:30 degree
Forward rotation
It is custom size ,please check carefully before buying.
4.Good quality and competitive price
5.if you want to know more details ,please send email to me !
ALL the billet compressor wheels have been balanced.
