| Markenname: | NO |
| Zertifizierung: | ISO |
| Model Number: | K04 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Preis: | DISCUSS |
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |
1. MODEL:K04 reverse

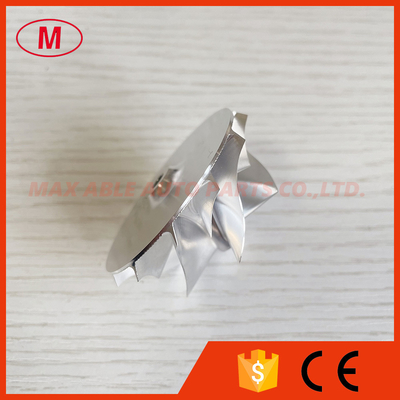

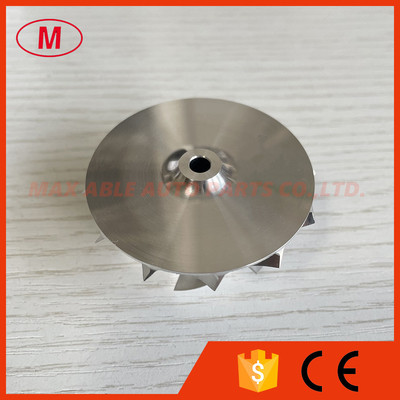

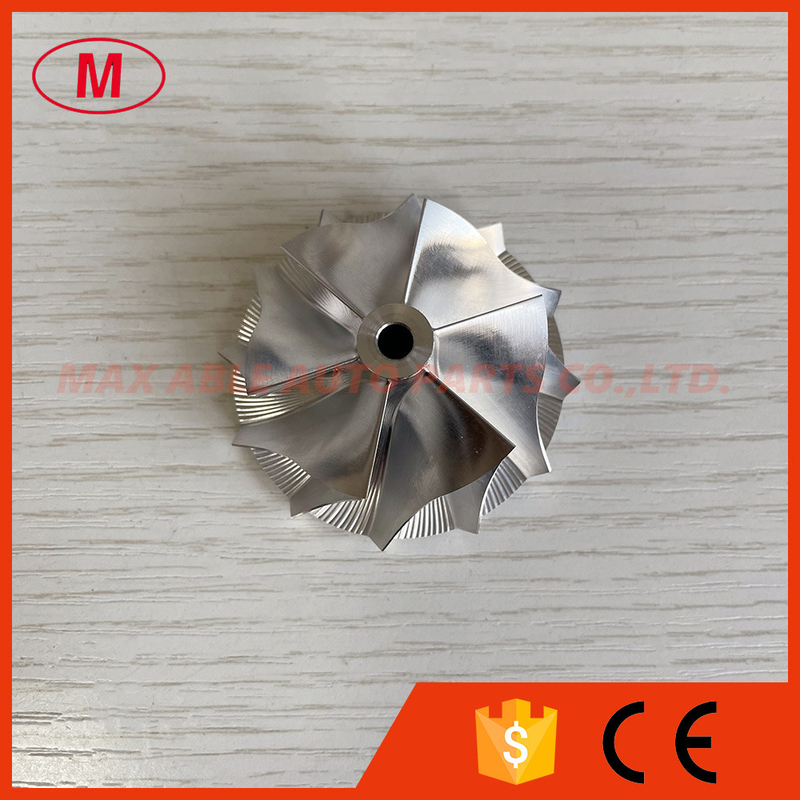

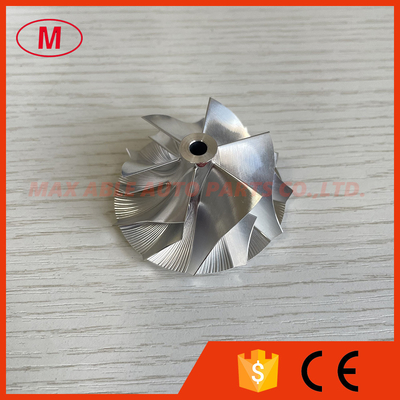

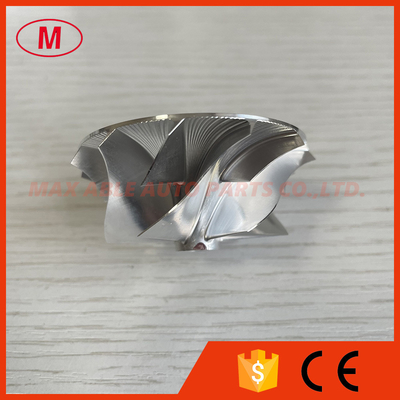

2.K04 reverse 40.80/51.00mm 6+6 blades high performance turbo milling/aluminum 2618/billet compressor wheel
3.Size:
Nose diameter:10.00mm
inducer:40.80mm
Exduder:51.00mm
Tapered tip exducer:54.70mm
Tip height:4.21mm
Superback:2.60mm
Overall height:25.65mm
bore size :4.61mm
Bore type:through
Trailing Angle:60 degree
Cutback:2.2mm
Blades height:21.00mm
SP height Angle:-11.00
Splitter height:11.10mm
6+6 blades
reverse rotation
Tapered tip angle:30 degree
It is for custom size ,please check carefully before buyig.
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
ALL the billet compressor wheels have been balanced.
The more models we also have.
