| Markenname: | NO |
| Zertifizierung: | ISO |
| Model Number: | TD05H |
| Minimum Order Quantity: | 1PC |
|---|---|
| Preis: | DISCUSS |
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |
1. MODEL:TD05H 16G small forward

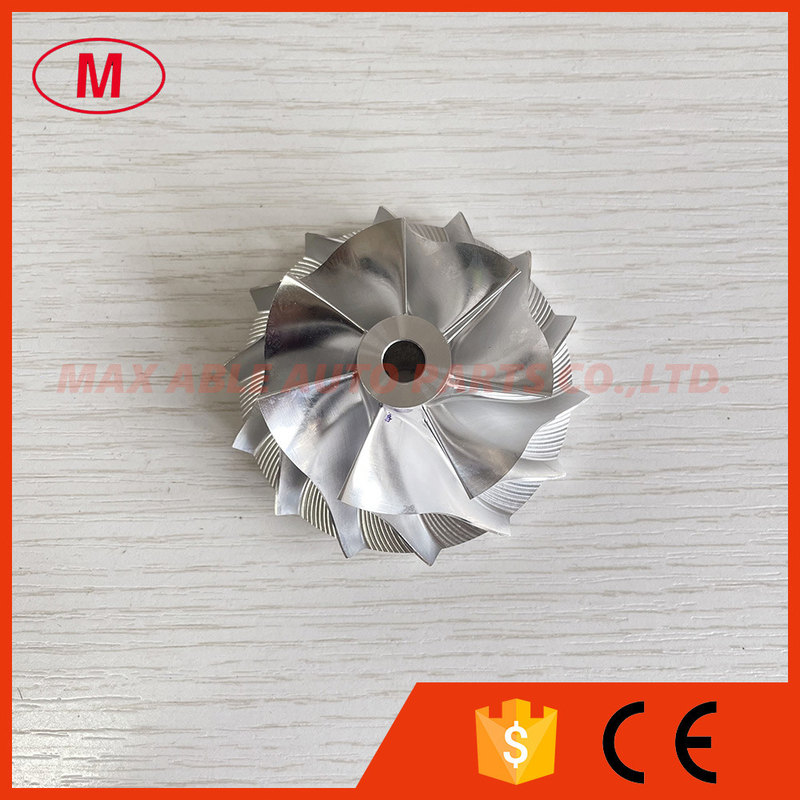

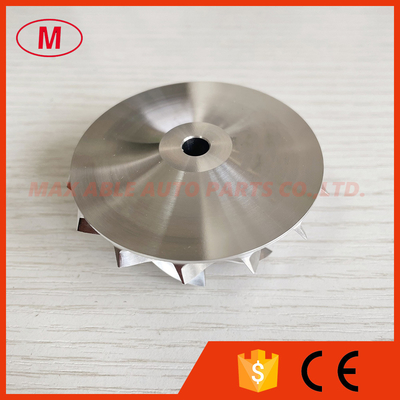

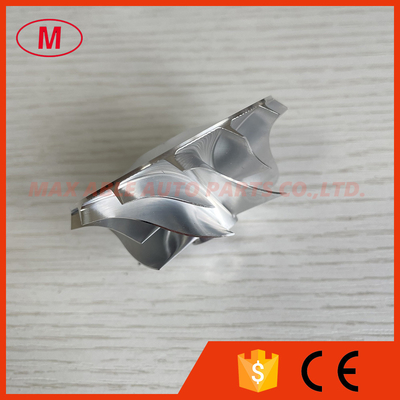

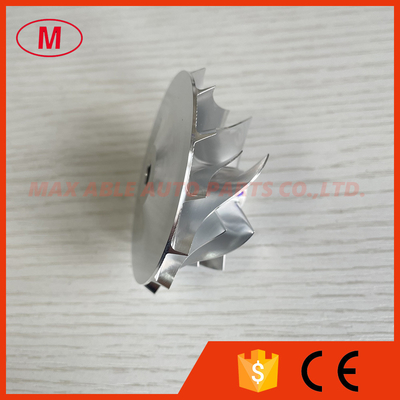

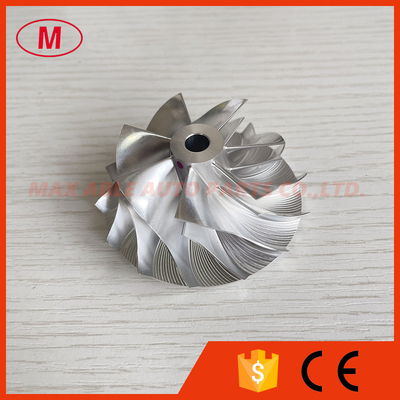

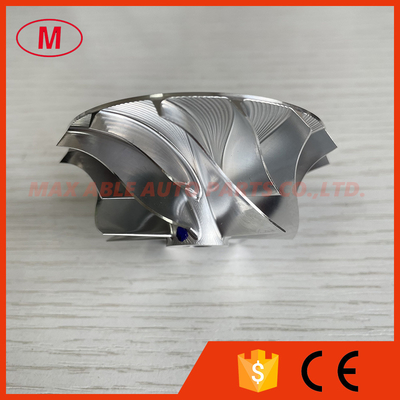

2.TD05H 16G small 46.48/60.00mm 7+7 blades 49178-43300 high performance Turbo Billet/milling/Aluminum 2618 compressor wheel for 49178-02001, 49178-01460, 49178-04340, 49178-04400, 49178-04500, 49178-04510, 49178-05200,49178-06200, 49178-06290, 49178-06300, 49178-06310, 49178-06380, 49178-06390
3.Size:
Nose diameter:14.35mm
Inducer:46.48mm
Exducer:60.00mm
Tapered tip exducer:64.60mm
Tip height:4.99mm
Superback:2.80mm
Overall height:27.61mm
bore size :6.50mm
bore type:through
Trailing angle:65 degree
Cutback:0.00mm
Blades height:22.93mm
Splitter height:15.60mm
Sp height angle:-5.40
7+7 Blades
forward rotation
Tapered tip angle:30 degree
It is for OE compressor housing
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the billet wheels have been balanced.
