| Place of Origin: | China |
| Markenname: | no |
| Model Number: | K04 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT,western union ,paypal |
| Supply Ability: | 1000pcs |
1.Model:K04 FORWARD

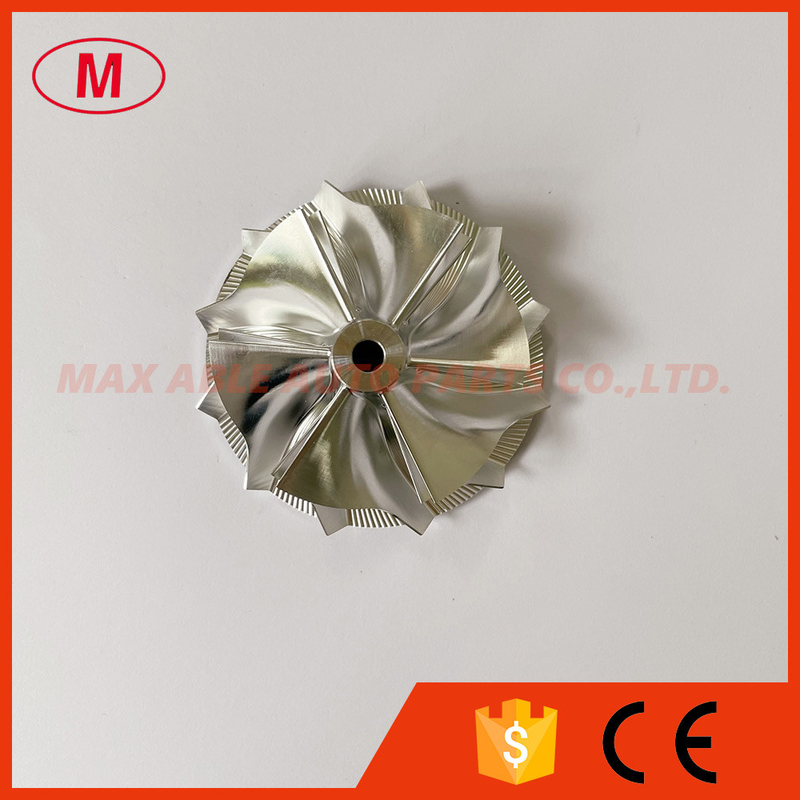

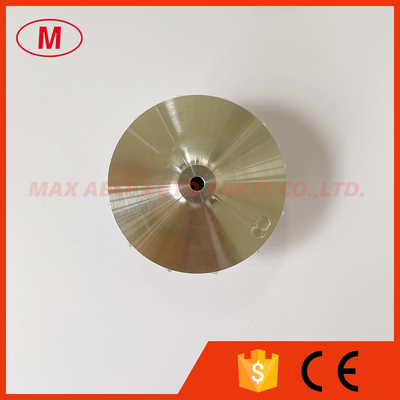

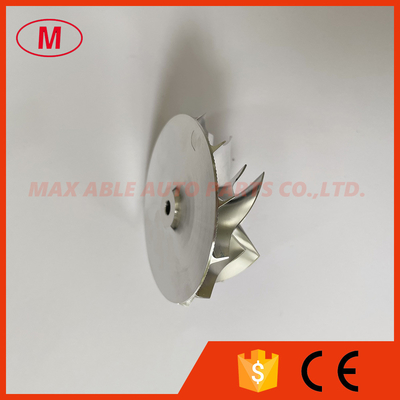

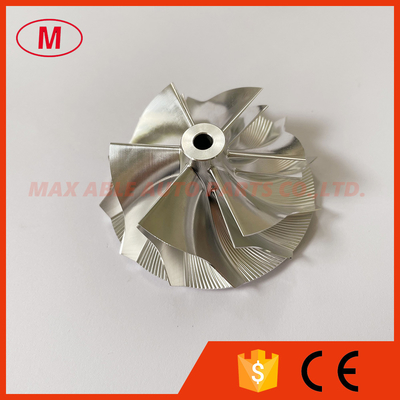

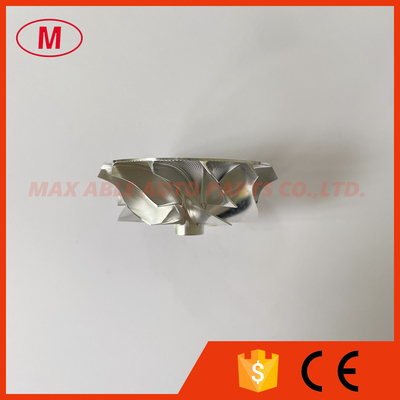

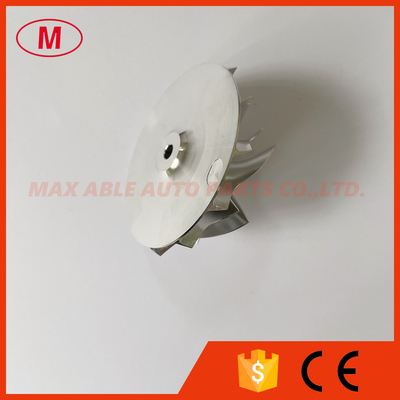

2.K04 48.35/58.00mm 6+6 Blades turbo aluminum 2618/Milling/billet compressor wheel
3.Size:
Nose diameter:10.95mm
Inducer:48.35mm
Exducer:58.00mm
Tapered tip exducer:61.43mm
Tip height:4.65mm
Trailing angle:60 degree
Superback:1.80mm
Bore size:4.61mm
bore type:through
Cutback:2.0mm
Overall height:25.55mm
SP Height angle:-3.00
Blades height:19.90mm
Splitter height:13.90mm
6+6 blades
Tapered tip angle:24 degree
Forward rotation
It is for OE compressor housing
4.Good quality and competitive price
5.if you want to know more details ,please send email to me !
ALL the billet compressor wheels have been balanced.
