| Place of Origin: | China |
| Markenname: | no |
| Model Number: | G25-660 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT,western union ,paypal |
| Supply Ability: | 1000pcs |

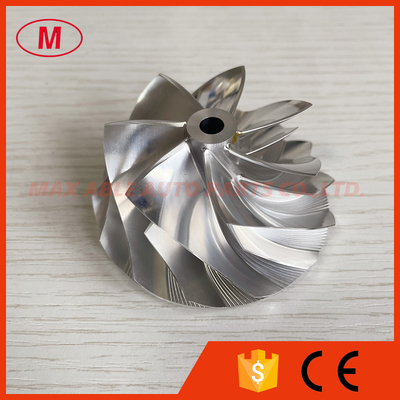

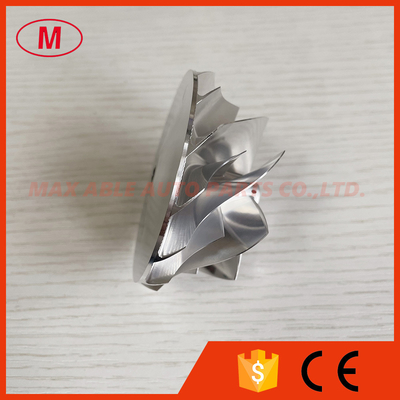

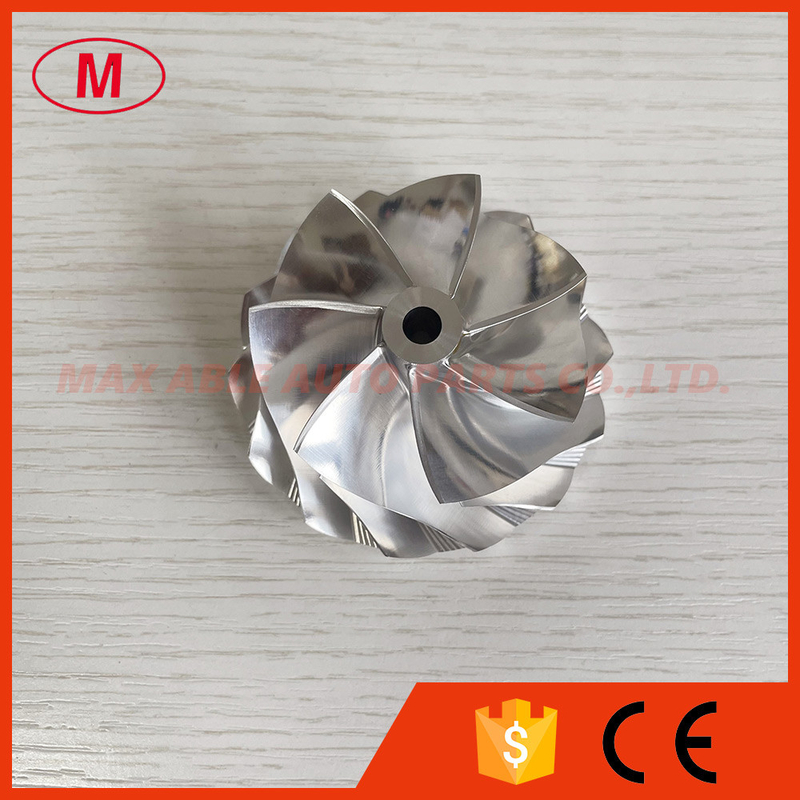

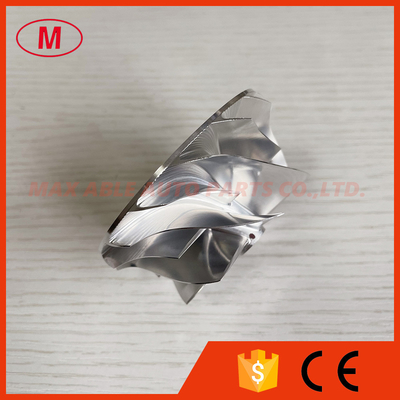

1.Model:GT25-660 FORWARD
2. G25-660 54.28/67.40mm 7+7 Blades LEP style turbo billet/aluminum 2618/Milling compressor wheel for 858161-5003S/877895-5002S/5005S/877895-5006S/871389-5010S-5011S
3.Size:
Nose diameter:12.40mm
Inducer:54.28mm
Exducer:67.40mm
Tapered tip exducer:69.80mm
Tip height:7.17mm
Trailing angle:35 degree
Superback:2.23mm
Bore:6.00mm
bore type:through
Cutback:0.0mm
Overall height:33.85mm
SP Height angle:0.00
Blades height:29.60mm
Splitter height:18.06mm
7+7 blades
Tapered tip angle:11.4 degree
Forward rotation
It is for OE compressor housing
4.Good quality and competitive price
5.if you want to know more details ,please send email to me !
6.Application:
858161-5003S/877895-5002S/5005S/877895-5006S/871389-5010S-5011S
All the compressor wheels have been balanced.
