Max Able Auto Parts Co.,Ltd.
Die Kundenzufriedenheit ist das ewige Ziel eines Unternehmens.
Die Kundenzufriedenheit ist das ewige Ziel eines Unternehmens.
 |
| Place of Origin: | CHINA |
| Markenname: | NO |
| Zertifizierung: | ISO |
| Model Number: | K04 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1.Model:K04 reverse

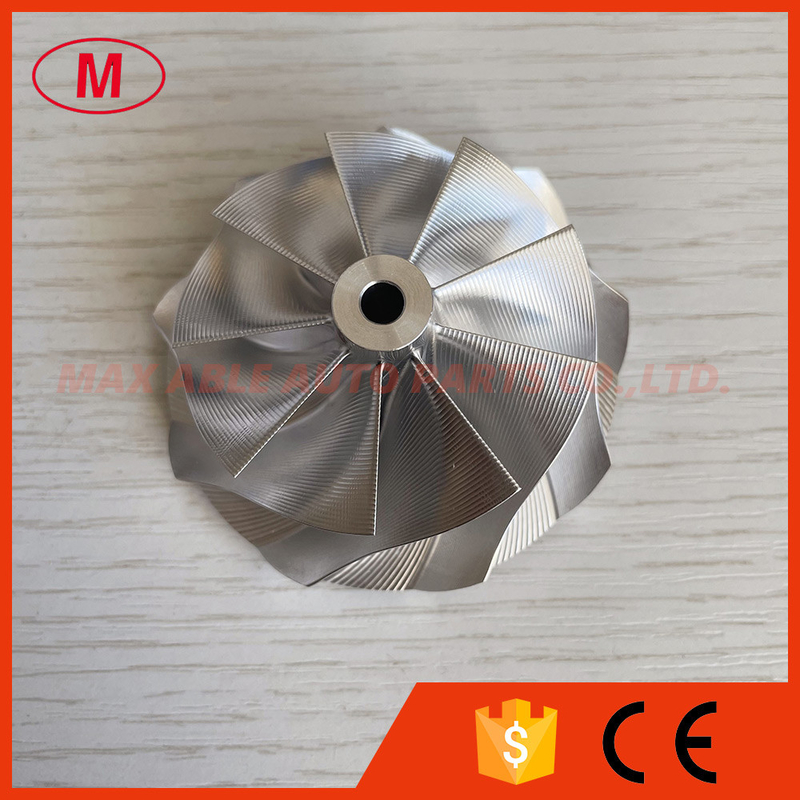

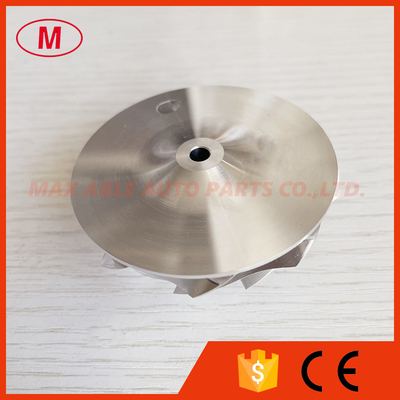

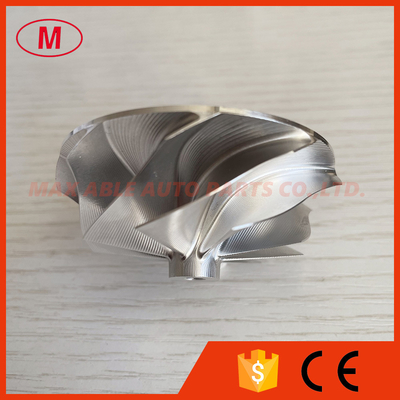

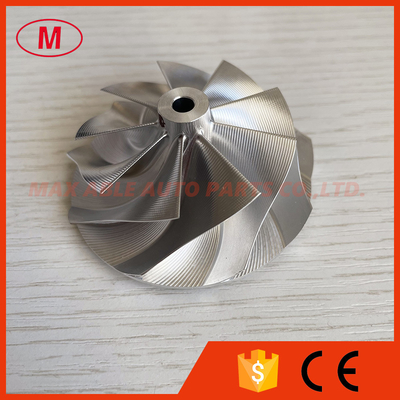

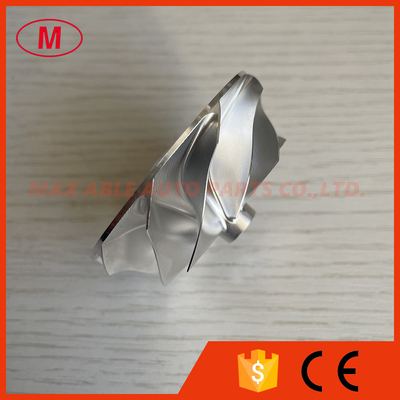

2.K04 reverse 48.35/60.00mm 9+0 Blades Point milling turbo aluminum 2618/Milling/billet compressor wheel
3.Size:
Nose diameter:10.87mm
Inducer:48.35mm
Exducer:60.00mm
Tapered tip exducer:62.16mm
Tip height:6.40mm
Trailing angle:35 degree
Superback:2.48mm
Bore size:4.61mm
bore type:through
Cutback:6.6mm
Overall height:27.58mm
SP Height angle:0.00
Blades height:21.03mm
Splitter height:0.00mm
9+0 blades
Tapered tip angle:11.5 degree
reverse rotation
It is custom size ,please check carefully before buying.
4.Good quality and competitive price
5.if you want to know more details ,please send email to me !
ALL the billet compressor wheels have been balanced.
