| Place of Origin: | CHINA |
| Markenname: | NO |
| Model Number: | GT15-25 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
1. MODEL:GT15-25 forward

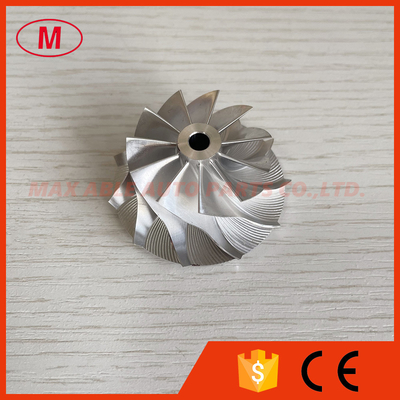

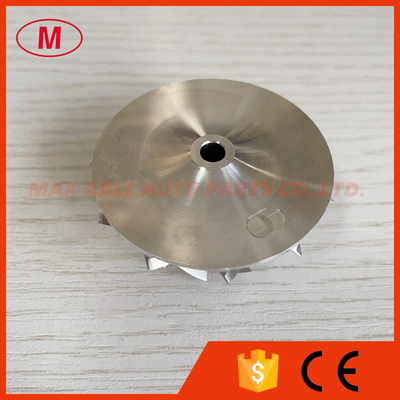

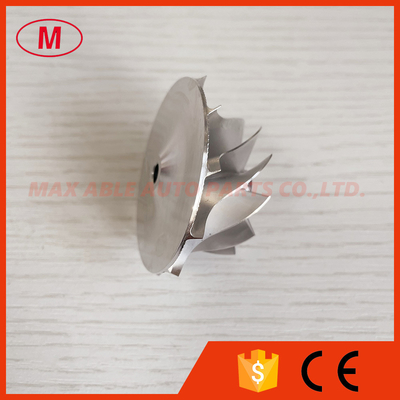

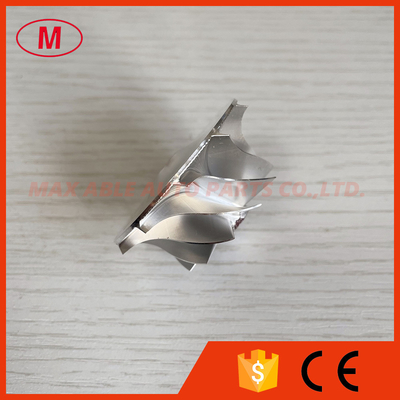

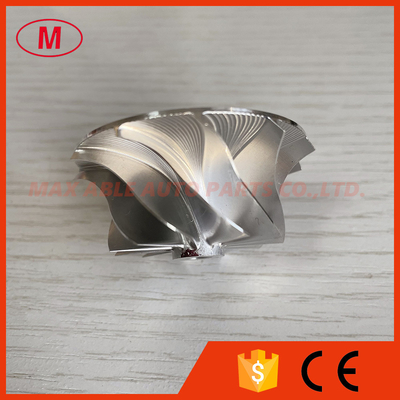

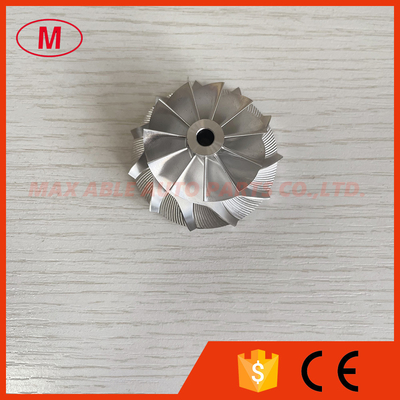

2.GT15-25 11+0 blades 702489-0005C 36.39/49.00mm turbo billet/milling/aluminum 2618 compressor wheel for 717382-0002/717478-0004/0005/0006/7214021-0003/0004/0005/0006/724495-0002/0003/729853-0001/750431-0004/0006/0007/0009/0010/0012/0015/753556-0002/0006/753847-0002/0006/756047-0002/0004/0005/760698-0002/0003/0004/760774-0002/0003/765993-0004
3.Size:
Nose diameter:10.70mm
inducer:36.39mm
Exduder:49.00mm
Tapered tip exducer:52.00mm
Tip height:3.60mm
Superback:2.40mm
Overall height:24.89mm
bore size :5.08mm
bore type:through
Trailing Angle:60 degree
Cutback:0.0mm
SP Height angle:0.00
Blades height:20.50mm
Splitter height:0.00mm
Tapered tip Angle:30 degree
11+0 blades
Forward rotation
Fit for OE compressor housing
Application:
717382-0002/717478-0004/0005/0006/7214021-0003/0004/0005/0006/724495-0002/0003/729853-0001/750431-0004/0006/0007/0009/0010/0012/0015/753556-0002/0006/753847-0002/0006/756047-0002/0004/0005/760698-0002/0003/0004/760774-0002/0003/765993-0004
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
ALL the billet compressor wheels have been balanced
