1. MODEL:CT10 Forward

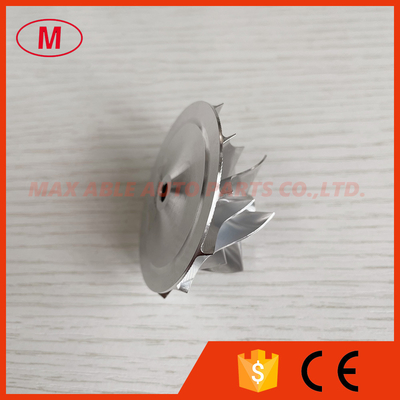

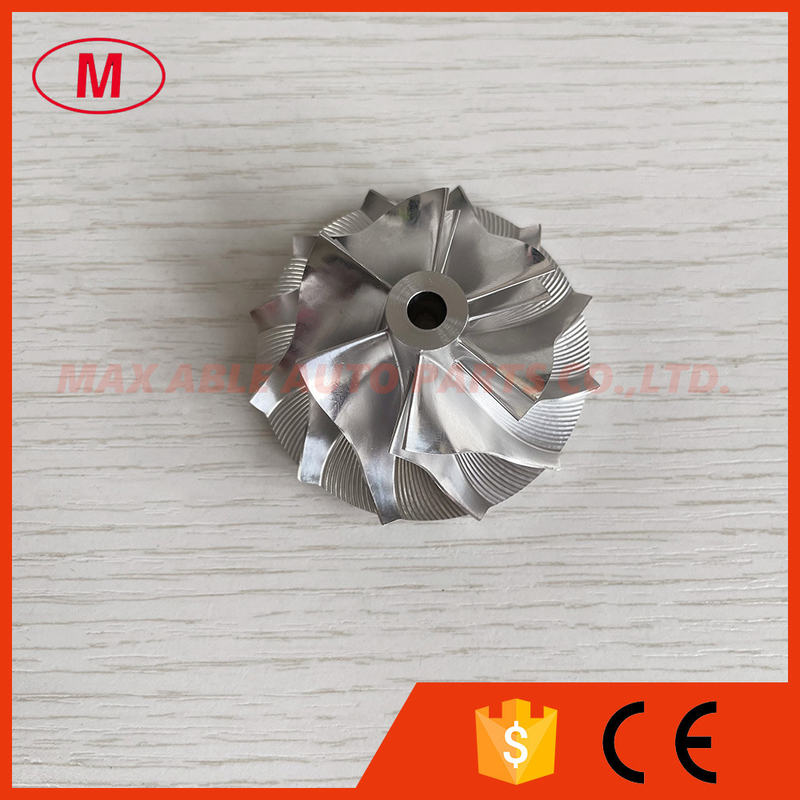

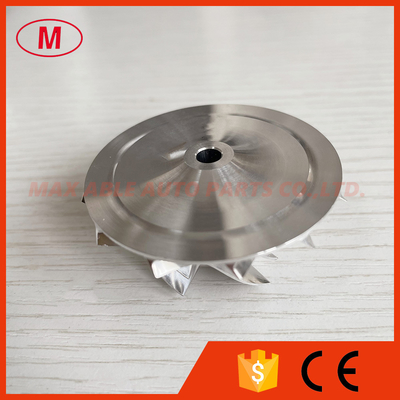

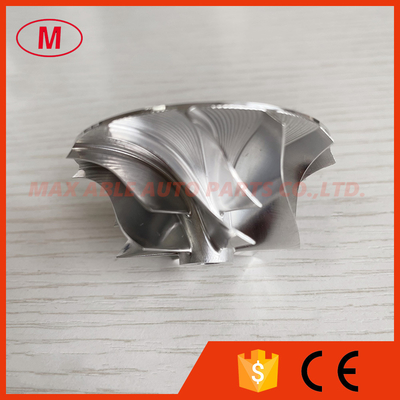

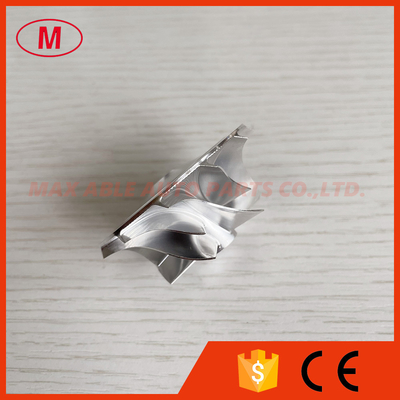

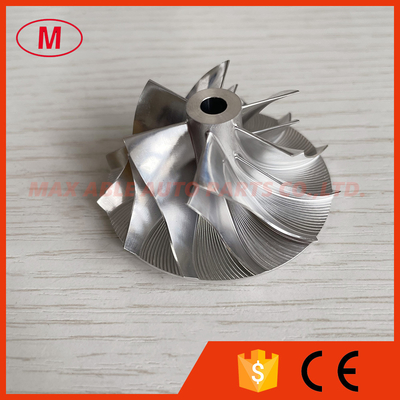

2. CT10 36.00/50.96mm 6+6 blades turbo billet/milling/aluminum 2618 compressor wheel for 2KD-FTV
3.Size:
Nose diameter:10.59mm
inducer:36.00mm
Exducer:50.96mm
Tapered tip exducer:53.81mm
Tip height:3.47mm
Superback:2.65mm
Overall height:25.00mm
Bore size:5.10mm
bore type:through
Trailing angle:55
Cutback:0.0
Sp height angle:-4.50
Blade height:20.35mm
Splitter height:14.30mm
6+6 blades
Forward rotation
Tapered tip angle:30 degree
It is for OE compressor housing
4.High quality and competitive price.
5.Any questions please send email to me,we have many size.
All the compressor wheel have been balanced.
