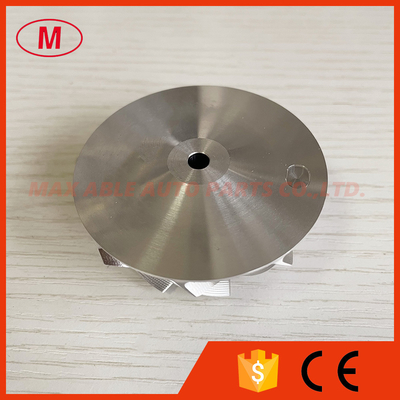

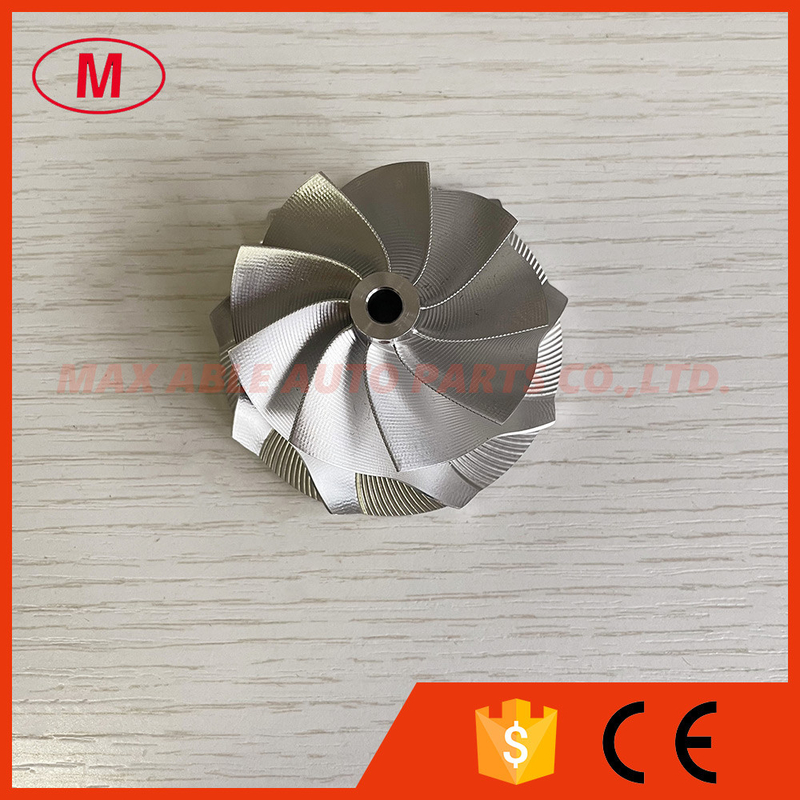

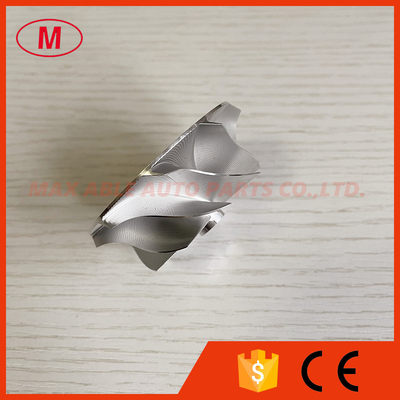

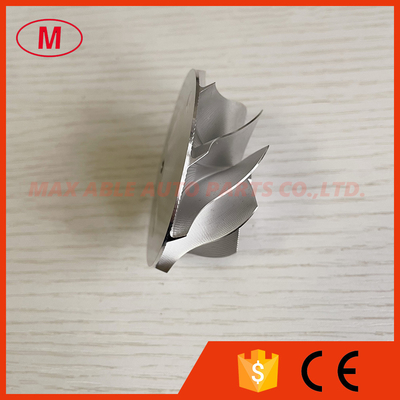

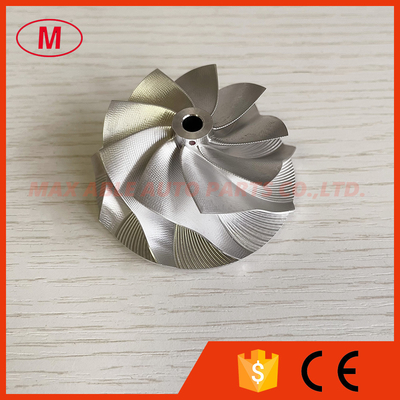

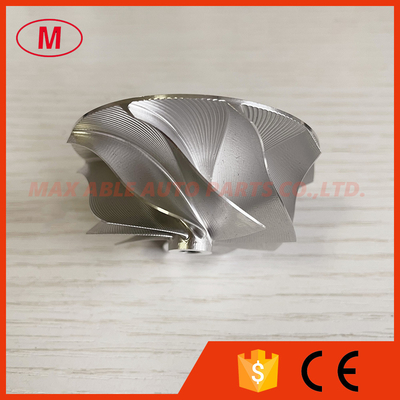

TD04HL 20T 49189-X 47.04/58.00mm 9+0 blades point milling Turbocharger milling/aluminum 2618/billet compressor wheel

TD04HL 20T 49189-X 47.04/58.00mm 9+0 blades point milling Turbocharger milling/aluminum 2618/billet compressor wheel

    • TD04HL 20T 49189-X 47.04/58.00mm 9+0 blades point milling Turbocharger milling/aluminum 2618/billet compressor wheel
    • TD04HL 20T 49189-X 47.04/58.00mm 9+0 blades point milling Turbocharger milling/aluminum 2618/billet compressor wheel
    • TD04HL 20T 49189-X 47.04/58.00mm 9+0 blades point milling Turbocharger milling/aluminum 2618/billet compressor wheel
    • TD04HL 20T 49189-X 47.04/58.00mm 9+0 blades point milling Turbocharger milling/aluminum 2618/billet compressor wheel
    • TD04HL 20T 49189-X 47.04/58.00mm 9+0 blades point milling Turbocharger milling/aluminum 2618/billet compressor wheel
    • TD04HL 20T 49189-X 47.04/58.00mm 9+0 blades point milling Turbocharger milling/aluminum 2618/billet compressor wheel
    • TD04HL 20T 49189-X 47.04/58.00mm 9+0 blades point milling Turbocharger milling/aluminum 2618/billet compressor wheel

    Produktdetails:

    Model Number: TD04HL

    Zahlung und Versand AGB:

    Minimum Order Quantity: 1PC
    Packaging Details: neutral packing
    Delivery Time: 3-7 days
    Payment Terms: TT ,western union ,paypal
    Supply Ability: 1000pcs
    Kontakt
    Ausführliche Produkt-Beschreibung
    Size: 47.04/58.00mm Type: Turbochargers

    1. MODEL:TD04HL 20T forward
    2.TD04HL 20T 49189-X 47.04/58.00mm 9+0 blades point milling Turbocharger Billet/milling/aluminum 2618 compressor wheel for 49189-07220 Chrysler
    3.Size:
    Nose Diameter:10.02mm
    Inducer:47.04mm
    exducer:58.00mm
    Tapered tip exducer:60.37mm
    Tip height:4.65mm
    Superback:1.90mm
    bore size :5.00mm
    bore type:through
    Overall height:26.13mm
    Trailing Angle:45
    Cutback:0.0
    Blades height:21.53mm
    Splitter height:0.00mm
    Sp height angle:0 degree
    9+0blades forward
    Tapered tip Angle:18 degree
    It is for OE compressor housing
    4.High quality and competitive price.
    5.if you want more details, please send email to me.

    All the compressor wheel have been balanced.
