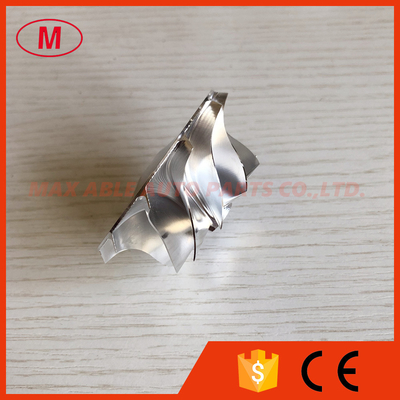

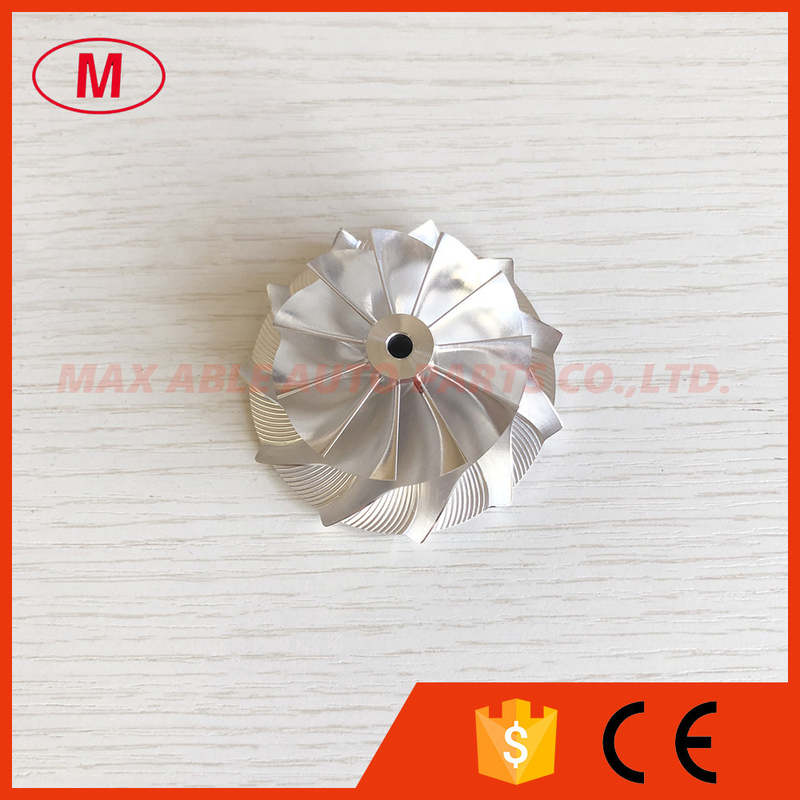

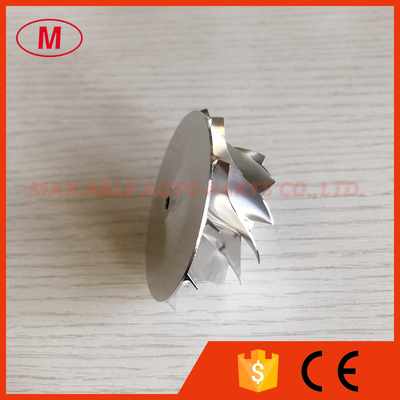

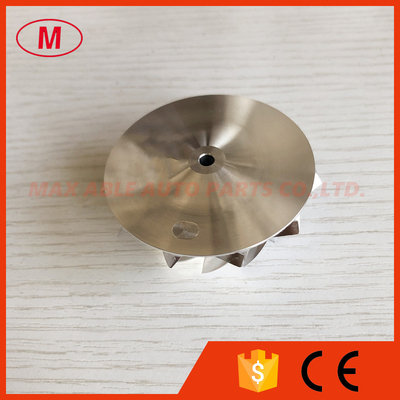

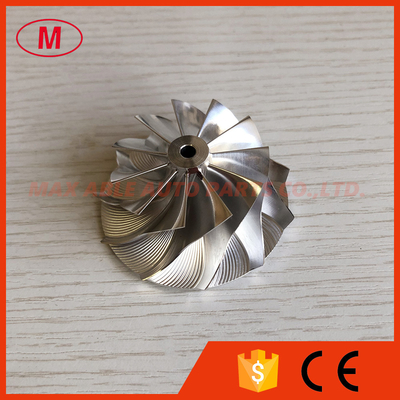

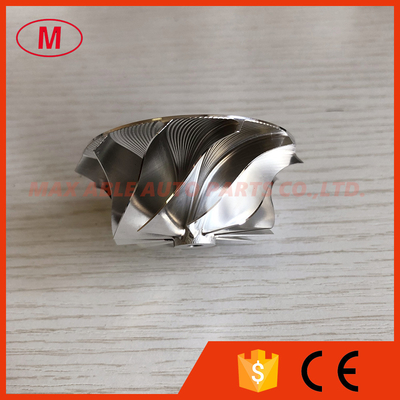

TD03 reverse 11+0 blades 42.00/56.02mm turbo milling/Aluminum 2618/billet compressor wheel

TD03 reverse 11+0 blades 42.00/56.02mm turbo milling/Aluminum 2618/billet compressor wheel

    • TD03 reverse 11+0 blades 42.00/56.02mm turbo milling/Aluminum 2618/billet compressor wheel
    • TD03 reverse 11+0 blades 42.00/56.02mm turbo milling/Aluminum 2618/billet compressor wheel
    • TD03 reverse 11+0 blades 42.00/56.02mm turbo milling/Aluminum 2618/billet compressor wheel
    • TD03 reverse 11+0 blades 42.00/56.02mm turbo milling/Aluminum 2618/billet compressor wheel
    • TD03 reverse 11+0 blades 42.00/56.02mm turbo milling/Aluminum 2618/billet compressor wheel
    • TD03 reverse 11+0 blades 42.00/56.02mm turbo milling/Aluminum 2618/billet compressor wheel
    • TD03 reverse 11+0 blades 42.00/56.02mm turbo milling/Aluminum 2618/billet compressor wheel

    Produktdetails:

    Markenname: NO
    Model Number: TD03

    Zahlung und Versand AGB:

    Minimum Order Quantity: 1PC
    Packaging Details: neutral packing
    Delivery Time: 3-7 days
    Payment Terms: TT ,western union ,paypal
    Supply Ability: 1000pcs
    Kontakt
    Ausführliche Produkt-Beschreibung

    1.Model:TD03 reverse
    2.TD03 reverse 11+0 blades 42.00/56.02mm turbo Billet/milling/Aluminum 2618 compressor wheel
    3.Size:
    Nose diameter:10.77mm
    Inducer:42.00mm
    exducer:56.02mm
    Tapered tip exducer:59.95mm
    Tip height:4.41mm
    Superback:1.83mm
    bore size :4.00mm
    Overall height:26.20mm
    Cutback:0.0
    Trailing Angle:55
    Blade height:22.38mm
    SP height angle:0.00
    Splitter height:0.00
    11+0 blades
    reverse rotation
    It is for Custom size ,please check carefully before buying.
    Tapered tip Angle:30 degree
    4.High quality and competitive price.
    5.if you want more details, please send email to me.

    All the compressor wheel have been balanced.
