| Markenname: | no |
| Zertifizierung: | ISO |
| Model Number: | G25-660 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Preis: | DISCUSS |
| Packaging Details: | Neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |
1.Model:G25-660 reverse

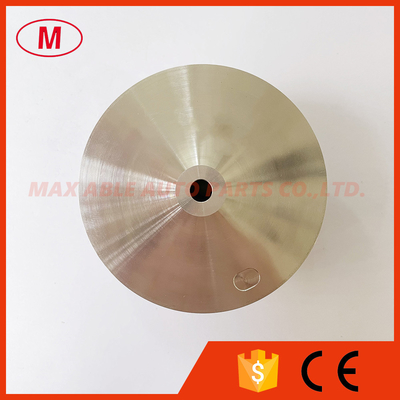

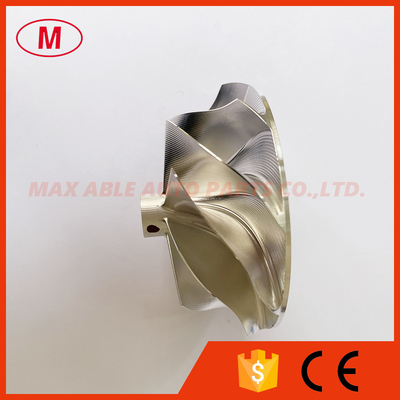

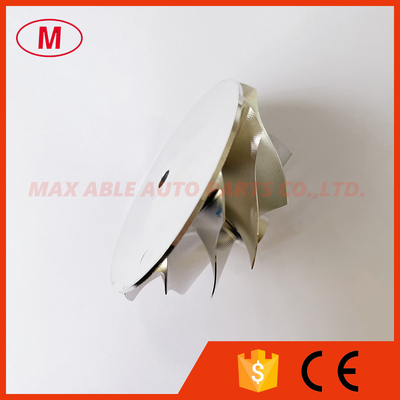

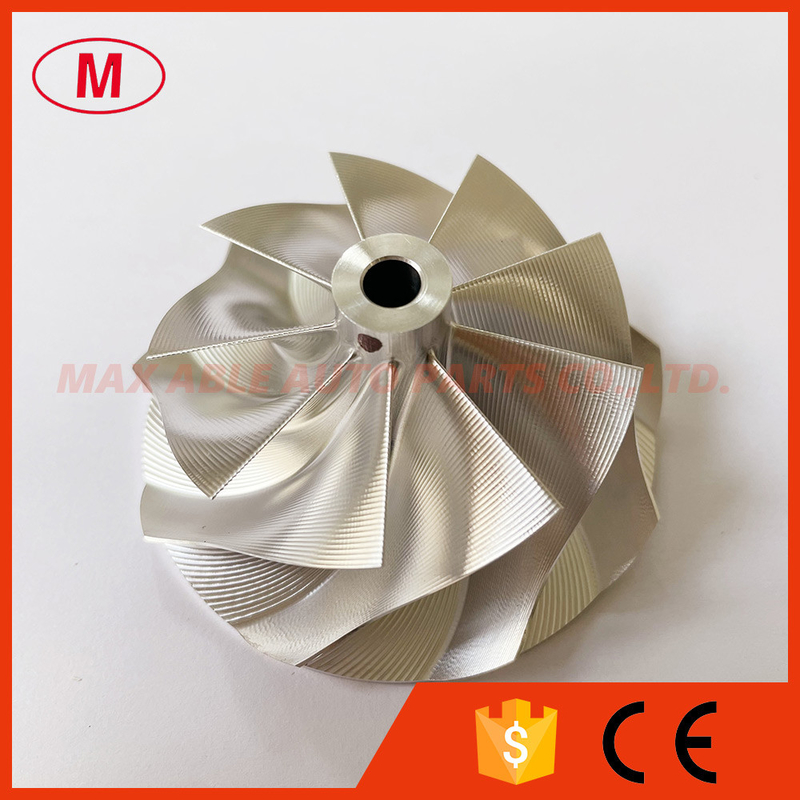

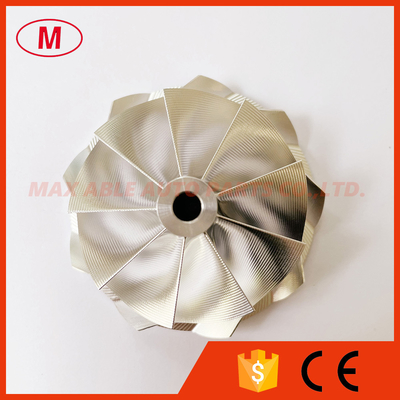

2.G25-660 reverse 54.28/67.40mm 9+0 Blades point milling turbo billet/aluminum 2618/Milling compressor wheel
3.Size:
Nose diameter:12.40mm
Inducer:54.28mm
Exducer:67.40mm
Tapered tip exducer:69.80mm
Tip height:7.17mm
Trailing angle:35
Superback:1.53mm
Bore:6.00
Cutback:6.6
Overall height:33.85mm
SP Height angle:0.00
Blades height:26.05mm
Splitter height:0.00mm
9+0 blades
Tapered tip angle:11.4 degree
reverse rotation
It is for OE compressor housing
4.Good quality and competitive price
5.if you want to know more details ,please send email to me !
All the compressor wheel have been balanced.
we can produce as your requirement ,the minimum order is 5pcs.
