Max Able Auto Parts Co.,Ltd.
Die Kundenzufriedenheit ist das ewige Ziel eines Unternehmens.
Die Kundenzufriedenheit ist das ewige Ziel eines Unternehmens.
 |
| Markenname: | NO |
| Zertifizierung: | ISO |
| Model Number: | TD03 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Size: | 35.53/50.96mm | Type: | Turbochargers |
|---|
1. MODEL:TD03 forward

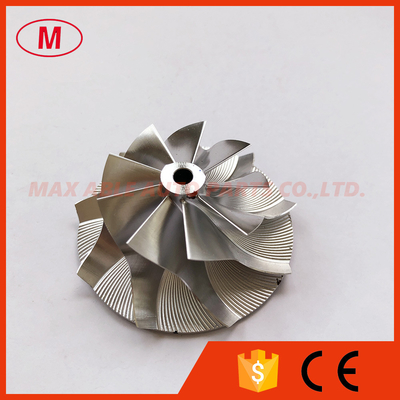

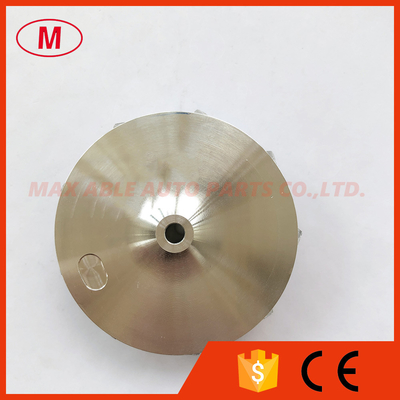

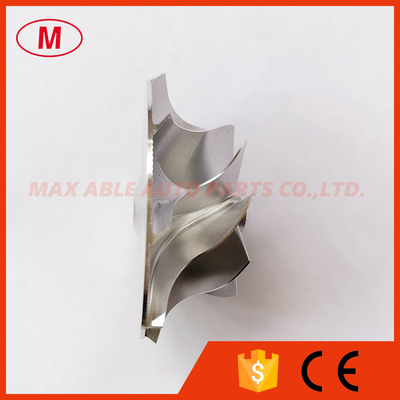

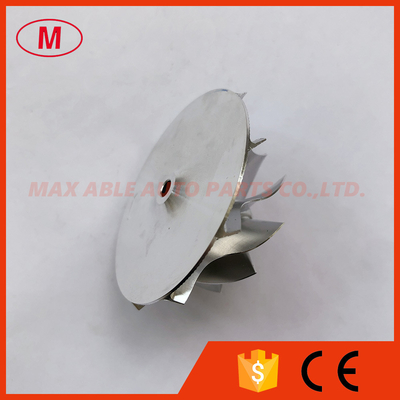

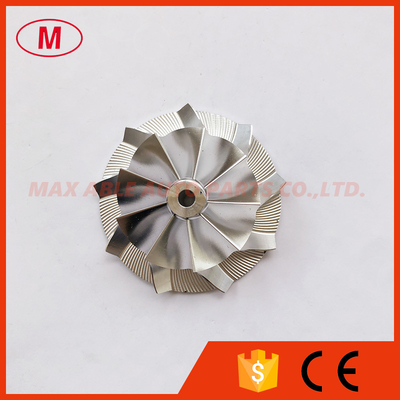

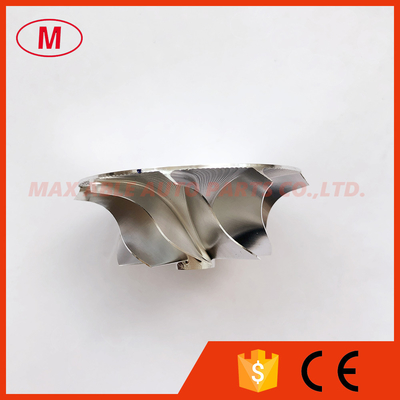

2.TD03 forward 35.53/50.96mm 9+0 blades high performance Turbo Billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:9.10mm
Inducer:35.53mm
Exducer:50.96mm
Tapered tip exducer:53.83mm
Tip height:3.49mm
Superback:1.80mm
Overall height:22.55mm
blade height:18.85mm
bore size :4.00mm
Trailing angle:45
Cutback:0.0
SP height angle:0.00
Splitter height:0.00mm
Tapered tip angle:30 degree
9+0 Blades
forward rotation
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the compressor wheel have been balanced
we can also produce as your requirement.
