Startseite ProdukteKompressorrad für Schiefer

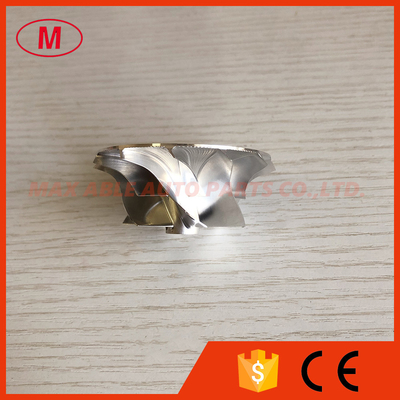

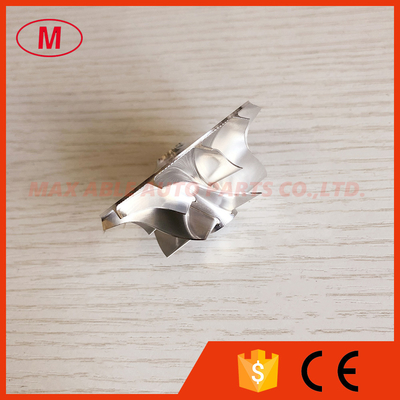

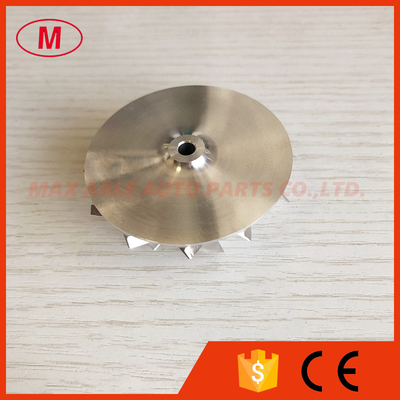

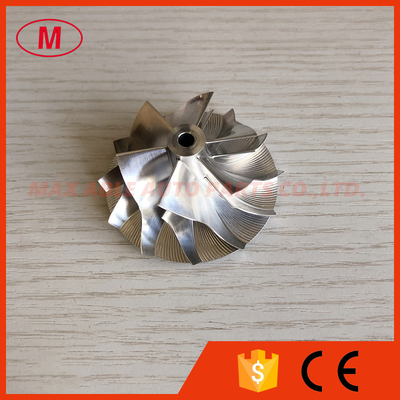

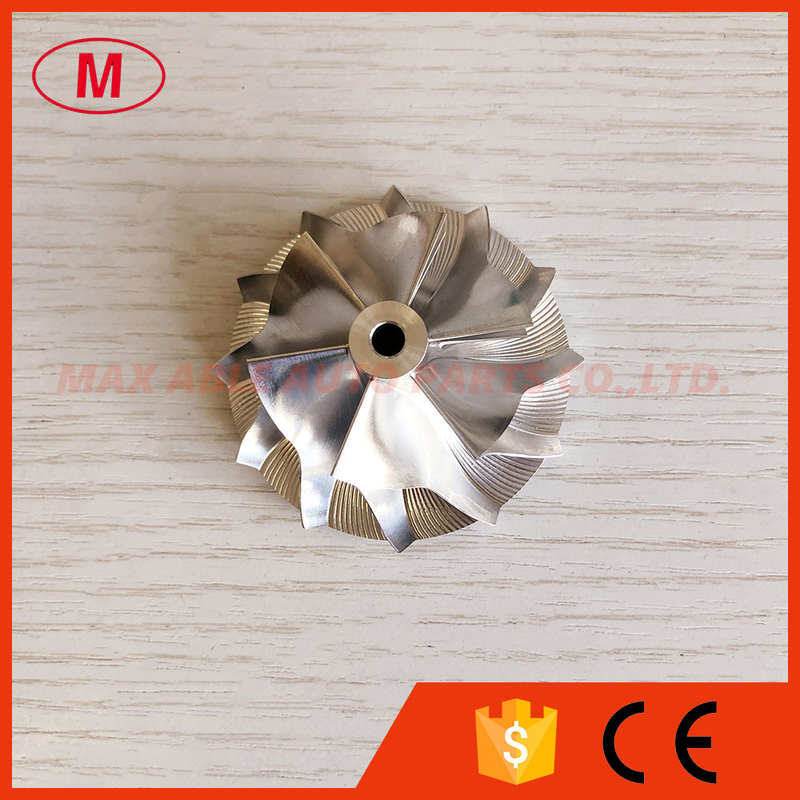

K04 5306-123-2047 40.50/56.08mm 6+6 blades performance aluminum 2618/milling/billet compressor wheel for 5304-970-0189

K04 5306-123-2047 40.50/56.08mm 6+6 blades performance aluminum 2618/milling/billet compressor wheel for 5304-970-0189

    • K04 5306-123-2047 40.50/56.08mm 6+6 blades performance aluminum 2618/milling/billet compressor wheel for 5304-970-0189
    • K04 5306-123-2047 40.50/56.08mm 6+6 blades performance aluminum 2618/milling/billet compressor wheel for 5304-970-0189
    • K04 5306-123-2047 40.50/56.08mm 6+6 blades performance aluminum 2618/milling/billet compressor wheel for 5304-970-0189
    • K04 5306-123-2047 40.50/56.08mm 6+6 blades performance aluminum 2618/milling/billet compressor wheel for 5304-970-0189
    • K04 5306-123-2047 40.50/56.08mm 6+6 blades performance aluminum 2618/milling/billet compressor wheel for 5304-970-0189
    • K04 5306-123-2047 40.50/56.08mm 6+6 blades performance aluminum 2618/milling/billet compressor wheel for 5304-970-0189
    • K04 5306-123-2047 40.50/56.08mm 6+6 blades performance aluminum 2618/milling/billet compressor wheel for 5304-970-0189

    Produktdetails:

    Place of Origin: CHINA
    Model Number: K04

    Zahlung und Versand AGB:

    Minimum Order Quantity: 1PC
    Packaging Details: neutral packing
    Delivery Time: 3-7 days
    Payment Terms: TT/western union/paypal
    Supply Ability: 1000
    Kontakt
    Ausführliche Produkt-Beschreibung

    1. K04 5306-123-2047 40.50/56.08mm 6+6 blades high performance aluminum 2618/milling/billet compressor wheel for 5304-970-0189

    2.SIZE:

    Nose diameter:10.95mm

    inducer:40.50mm

    Exducer:56.08mm

    Tapered tip exducer :59.62mm

    tip height:4.06mm

    trailing angle:55 degree

    Superback:2.60mm

    Overall height:27.70mm

    bore size :4.61mm

    bore type:through

    cutback:2.1

    splitter height:13.80mm

    sp height angle:-3.40

    Blade height:23.00mm

    6+6 blades

    It is for OE compressor housing.

    tapered tip angle:30 degree

    4.Good quality and competitive price

    5.Please send email to me or talk to me on online ,if you want to know more details.

    All the billet compressor wheel have been balanced.

    skype:maxabledieselparts

    wechat/whatsapp:+86-18018657719

    K04 5306-123-2047 40.50/56.08mm 6+6 blades performance aluminum 2618/milling/billet compressor wheel for 5304-970-0189K04 5306-123-2047 40.50/56.08mm 6+6 blades performance aluminum 2618/milling/billet compressor wheel for 5304-970-0189K04 5306-123-2047 40.50/56.08mm 6+6 blades performance aluminum 2618/milling/billet compressor wheel for 5304-970-0189K04 5306-123-2047 40.50/56.08mm 6+6 blades performance aluminum 2618/milling/billet compressor wheel for 5304-970-0189K04 5306-123-2047 40.50/56.08mm 6+6 blades performance aluminum 2618/milling/billet compressor wheel for 5304-970-0189K04 5306-123-2047 40.50/56.08mm 6+6 blades performance aluminum 2618/milling/billet compressor wheel for 5304-970-0189
