1.Model:GT2056/GT2256 Forward

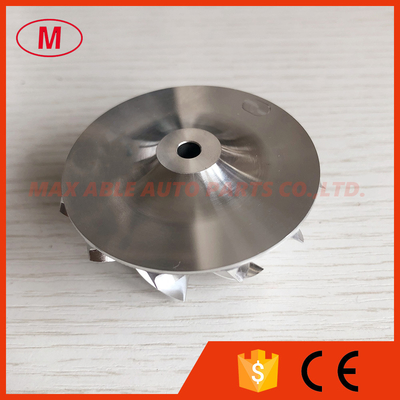

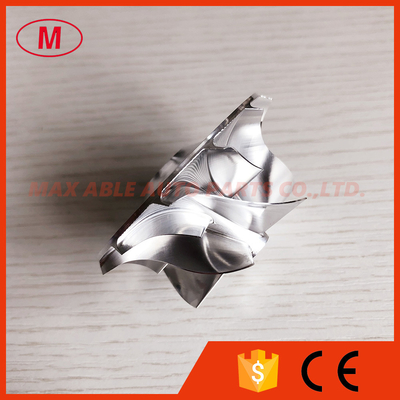

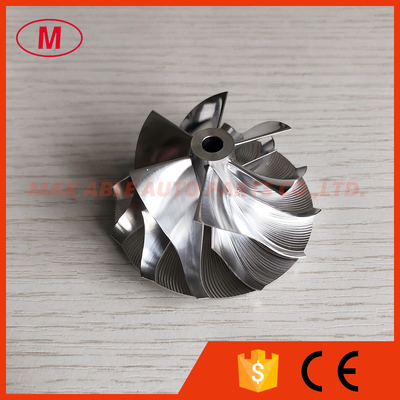

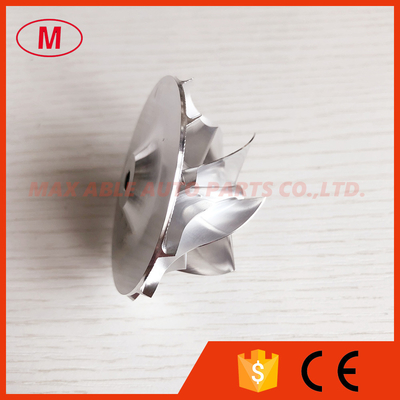

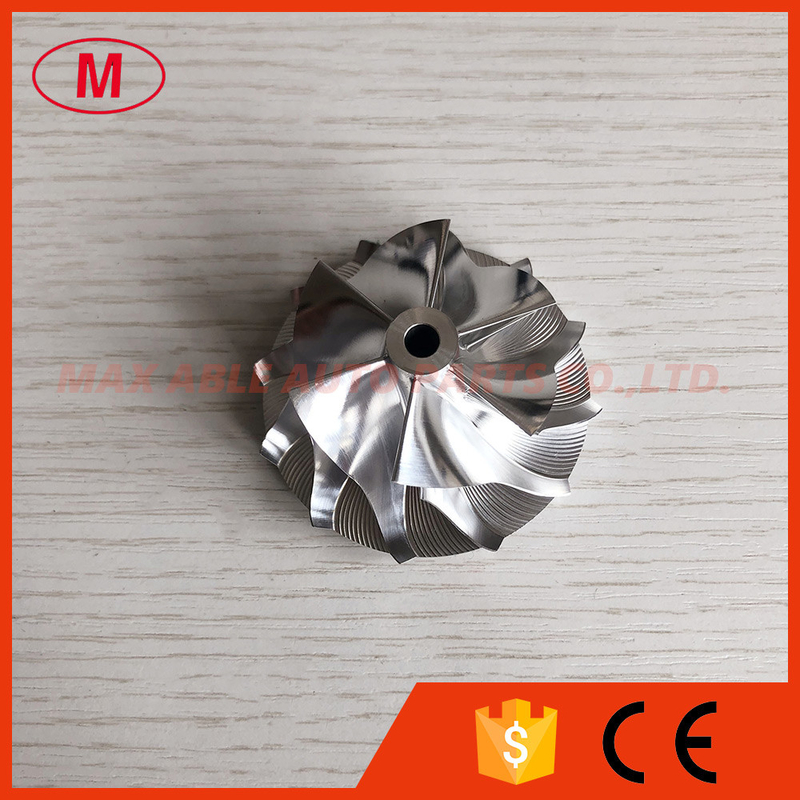

2.GT2056/GT2256 436563-0001/436563-0009 41.50/56.03mm 6+6 blades high performance turbocharger billet/milling/aluminum 2618 compressor wheel for 700935-0001, 700935-0002, 700935-0003, 700935-0004, 700935-0006, 700935-0007 / 704361-0004, 704361-0005, 704361-0006 / 711009-0001, 711009-0002 / 712541-0001, 712541-0002, 712541-0003, 712541-0004 / 765326-0002 / 715568-0001, 715568-0002 / 707114-0001 / 721204-0001 / 727463-0001, 727463-0002, 727463-0003, 727463-0004, 727463-0006 / 742289-0001, 742289-0002 / 750510-0001/ 751578-0001, 751578-0002 / 751758-0001, 751758-0002 / 763263-0002, 763263-0003, 763263-0004, 763263-0006
3.Size:
Nose diameter:10.50mm
Inducer:41.50mm
Exducer:56.03mm
Tapered tip exducer:59.52mm
Tip height:4.02mm
Superback:3.68mm
Overall height:30.90mm
Bore size:5.08mm
bore type:through
Trailing angle:60 degree
Bore type:Through
Cutback:0.0
SP Height angle:0.00
Blade height:25.20mm
Splitter height:13.50mm
6+6 blades
Forward rotation
Tapered tip angle:30 degree
It is for OE COMPRESSOR HOUSING
4.High quality ,competitive price and good service.
5.We can also produce as your requirement.
the minimun order is 5pcs
All the compressor wheels have been balanced.
6.If you want more details, please send email to me or talk to me online.
We will try our best to meet your needs.
