| Markenname: | NO |
| Zertifizierung: | ISO |
| Model Number: | KTR90 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Preis: | DISCUSS |
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |
1. MODEL:KTR90 FORWARD

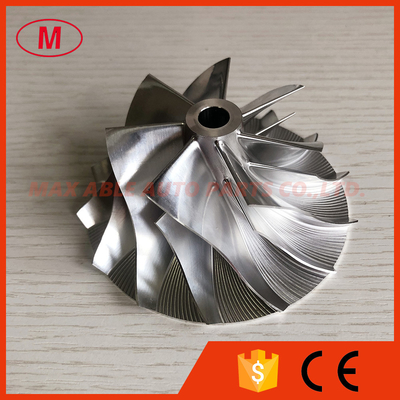

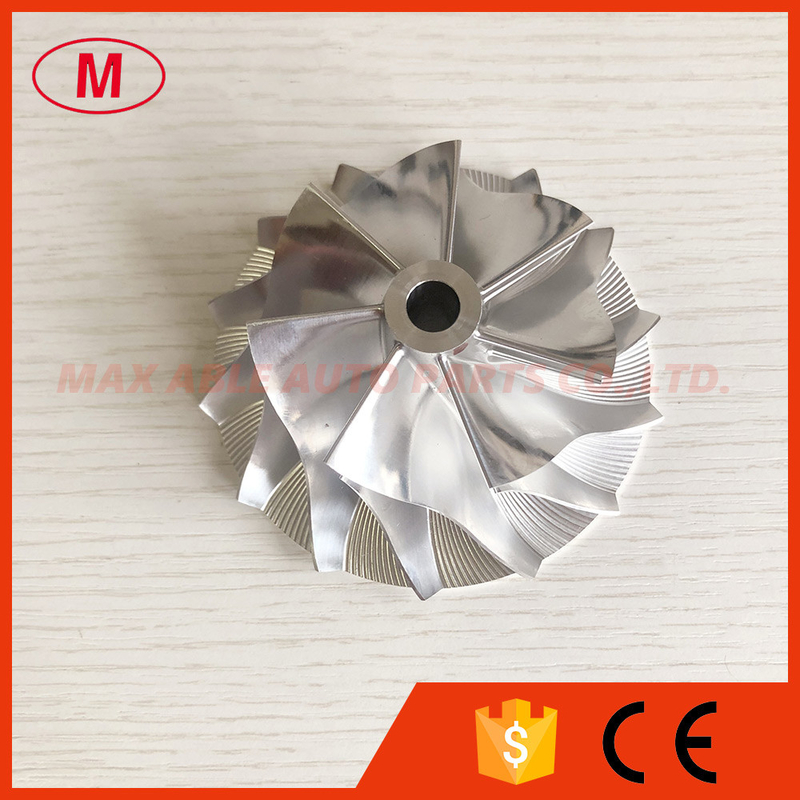

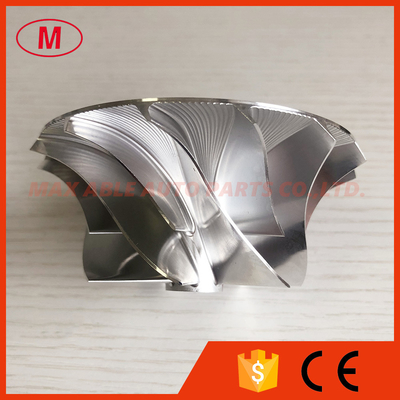

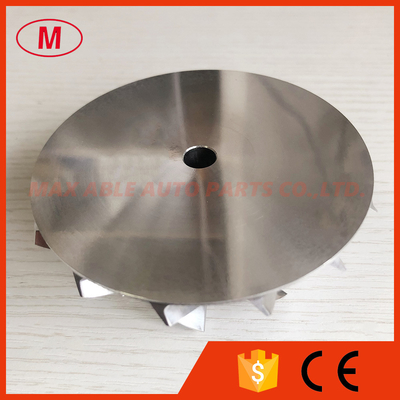

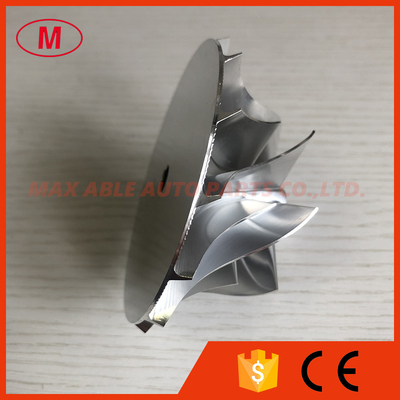

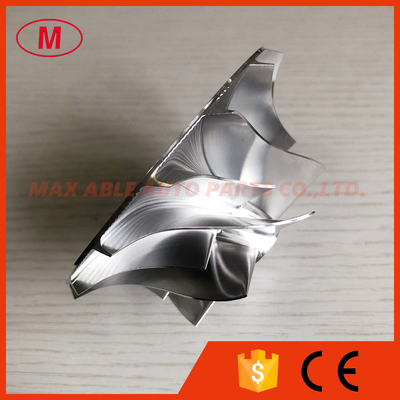

2.KTR90 59.90/85.90mm 7+7blades high performance turbo billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:15.50mm
inducer:59.90mm
Exduder:85.90mm
Tapered tip exducer:90.40mm
Tip height:5.30mm
Superback:0.00mm
Overall height:38.00mm
bore size :8.51mm
Trailing Angle:60
Cutback:0.00
Blade height:36.00mm
Tapered tip Angle:27.6 degree
SP height Angle:-4.20
Splitter Height:24.50mm
7+7 blades
Forward rotation
It is Custom size,please check carefully before buying.
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The minimun order is 5pcs.
The more models we also have.
