| Model Number: | K16 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Size: | 49.09/68.62mm | Type: | Turbochargers |
|---|
1. MODEL:K16 forward

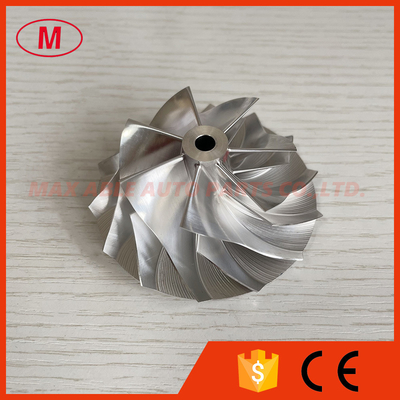

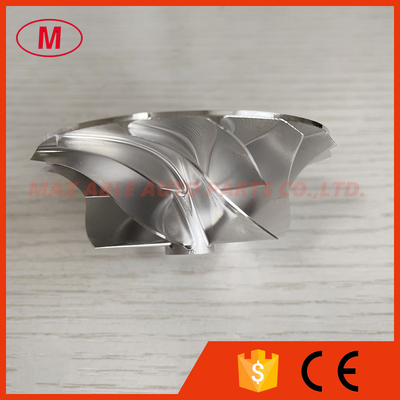

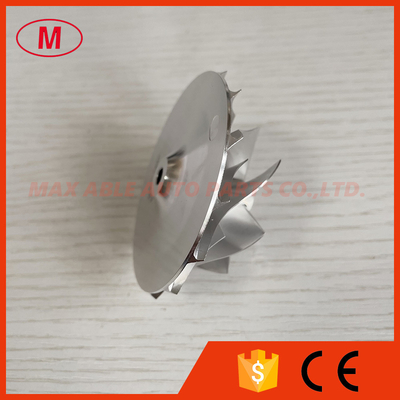

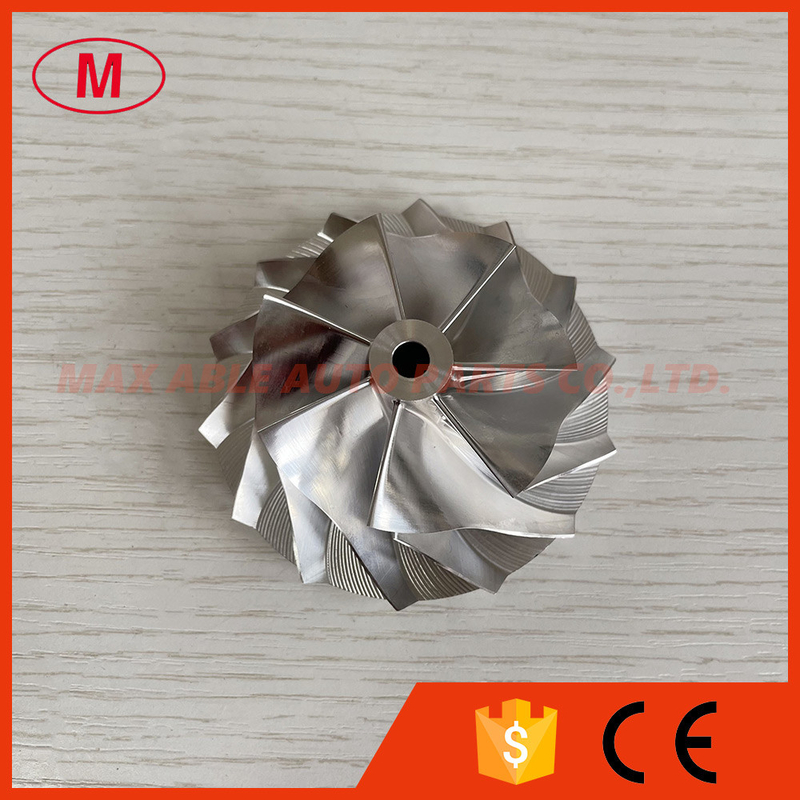

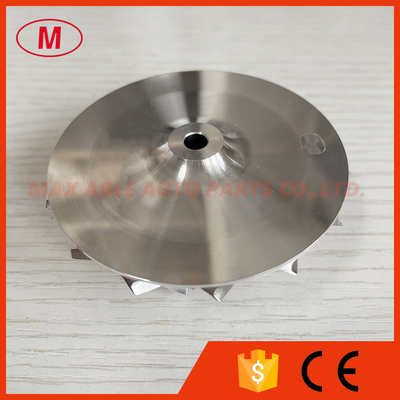

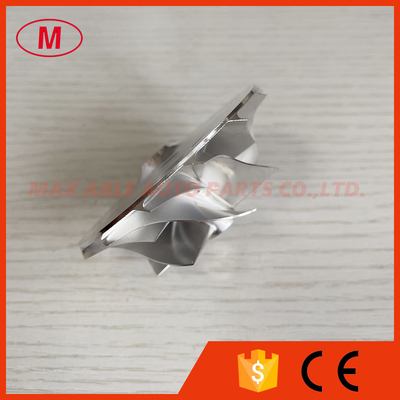

2.K16 49.09/68.62mm 7+7blades high performance billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:12.20mm
inducer:49.09mm
Exduder:68.62mm
Tapered tip exducer:71.84mm
Tip height:3.79mm
Superback:4.20mm
Overall height:30.05mm
bore size :5.41mm
bore type:through
Trailing Angle:50 degree
Cutback:2.5mm
Splitter height:11.90mm
SP height angle:-1.00
Blade height:23.70mm
7+7 blades
Tapered tip Angle:30 degree
Forward rotation
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
