| Place of Origin: | CHINA |
| Markenname: | NO |
| Model Number: | GT1246 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | netural packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT/western union/paypal |
| Supply Ability: | 10000 |
1. MODEL:GT1246 FORWARD

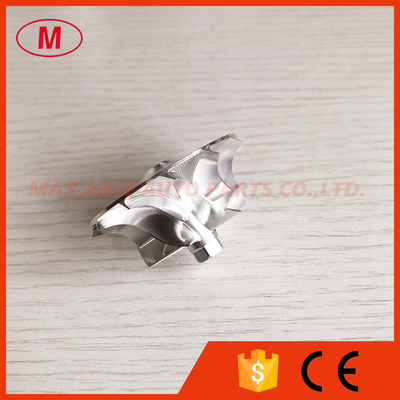

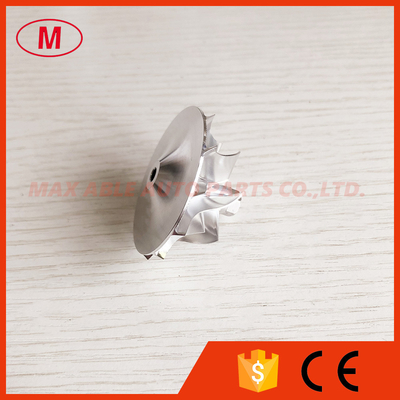

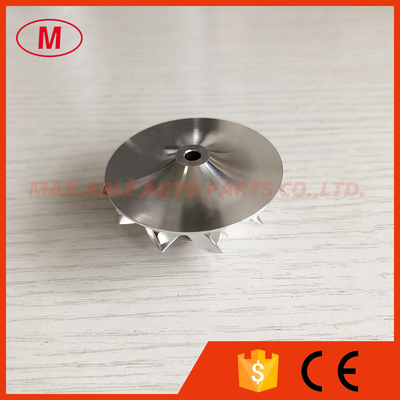

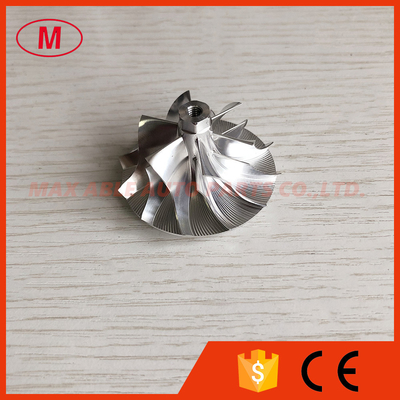

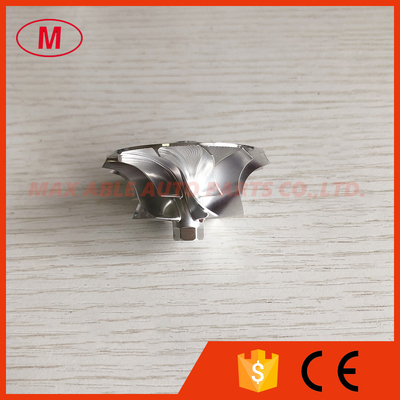

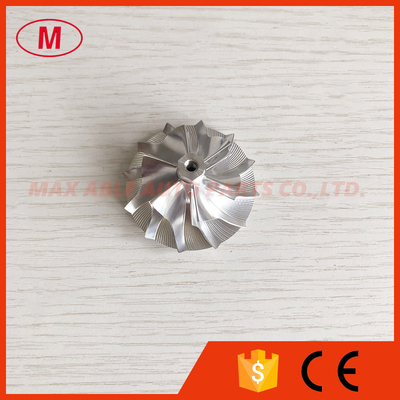

2.GT1246 784538-0003R 6+6 blades 32.50/46.00mm high performance turbo milling/aluminum 2618/billet compressor wheel
3.Size:
Nose diameter:9.15mm
inducer:32.50mm
Exduder:46.00mm
Tapered tip exducer:48.82mm
Tip height:3.45mm
Superback:3.90mm
Overall height:28.45mm
bore size :4.08mm
Bore type:Threaded-M4x0.7LHT
Trailing Angle:55
Cutback:0.0
Blades height:18.79mm
Splitter height:12.50mm
SP height angle:-1.00
Tapered tip Angle:30 degree
6+6 blades
forward rotation
Fit for OE compressor housing
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
