| Place of Origin: | CHINA |
| Markenname: | NO |
| Model Number: | PTE4202R |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
1. MODEL:PTE4202R forward

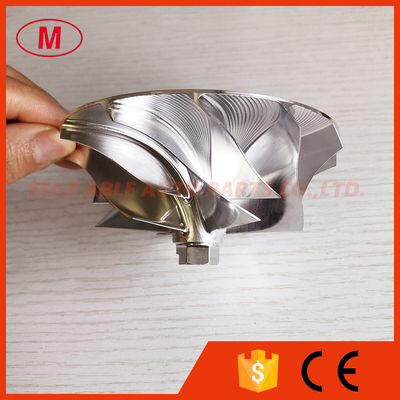

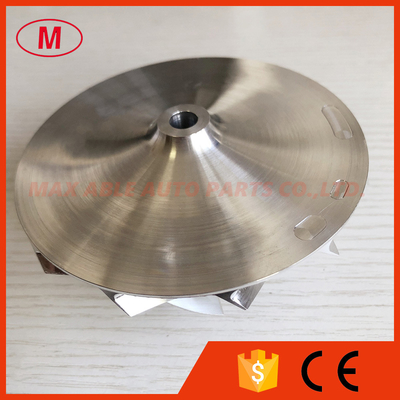

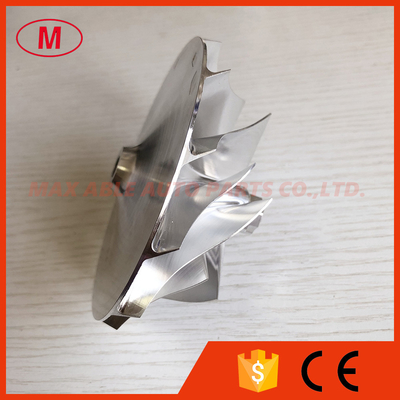

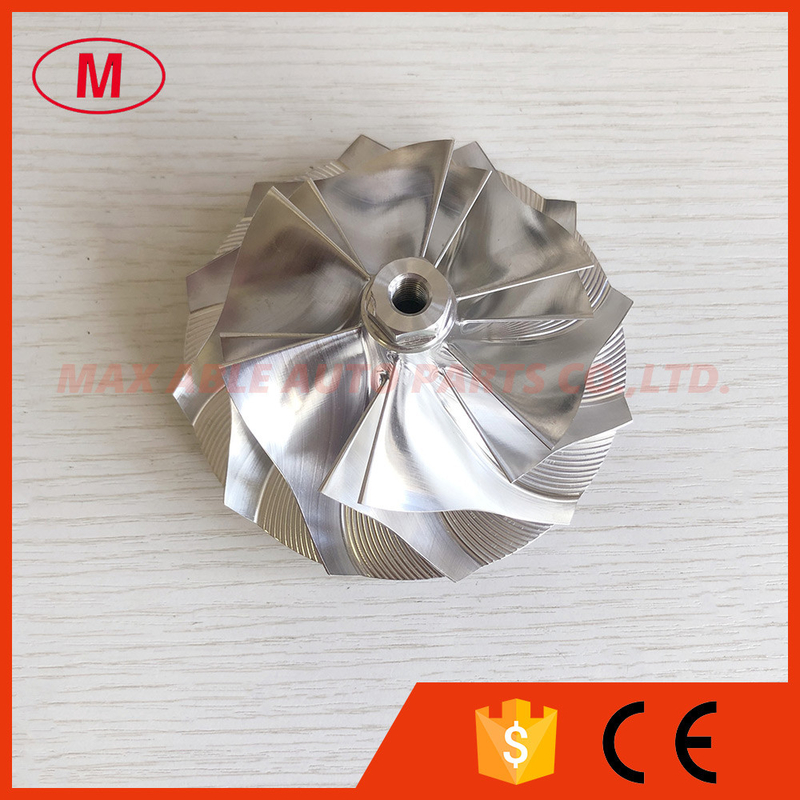

2.PTE4202R 95.00/117.57mm 6+6 blades Turbo aluminum 2618/milling/billet compressor wheel for racing
3.Size:
Nose diameter:18.58mm
inducer:76.85mm
Exduder:102.75mm
Tapered tip exducer:105.79mm
Tip height:8.14mm
Superback:9.51mm
Bore size :8.25mm
Overall height:56.49mm
Bore type:Threaded-M8x1.25LHT
Cutback:3.5
Sp height angle:25.85mm
SP height angle;-3.90
Trailing Angle:75-90
Blade height:35.63mm
6+6blades
Forward rotation
It is for OE compressor housing
Tapered tip angle:12 degree
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
