| Place of Origin: | CHINA |
| Markenname: | NO |
| Model Number: | K04 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
1. MODEL:K04 forward

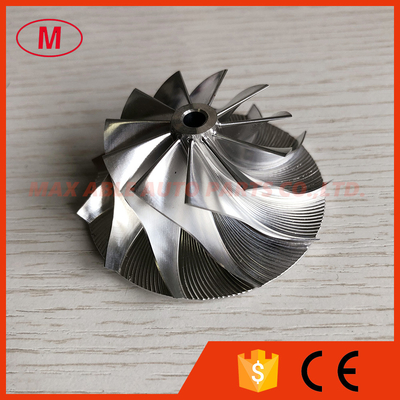

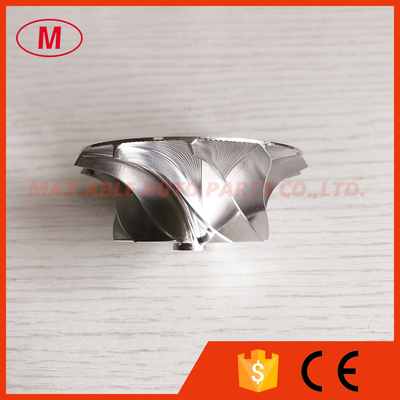

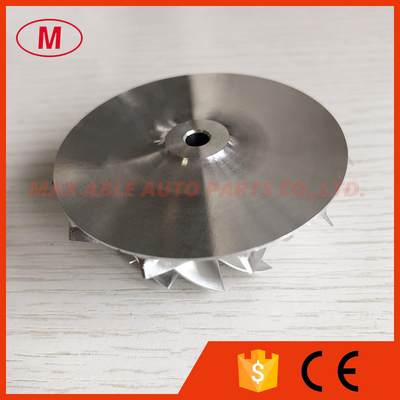

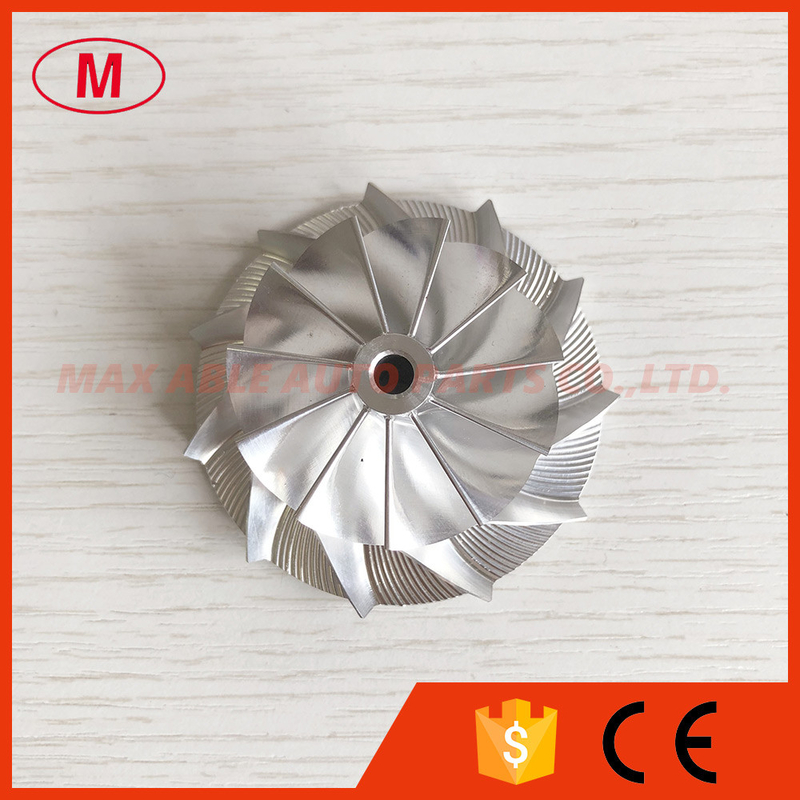

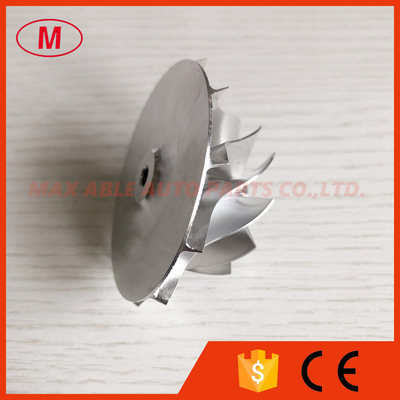

2. K04 5306-123-20166 39.30/56.08mm 11+0 blades high performance Turbo Billet/milling/aluminum 2618 compressor wheel for 5309-988-0129/0137/0207
3.Size:
Nose diameter:9.38mm
Inducer:39.30mm
Exducer:56.08mm
Tapered tip Exducer:59.43mm
Tip height:3.90mm
Superback:1.80mm
Bore size :4.61mm
Overall height:25.60mm
Trailing Angle:50
Cutback:3.0
Blade height:22.16mm
SP height Angle:0.00
Splitter height:0.00
Tapered tip Angle:30 degree
11+0 blades
Forward rotation
It is for OE compressor housing
3.Application:
5309-988-0129
5309-988-0137
5309-988-0207
5304-970-0086
5304-970-0103
5304-970-0129
5304-970-0139
4.High quality and competitive price.
