| Markenname: | NO |
| Zertifizierung: | ISO |
| Model Number: | TD0435 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:TD0435 Forward

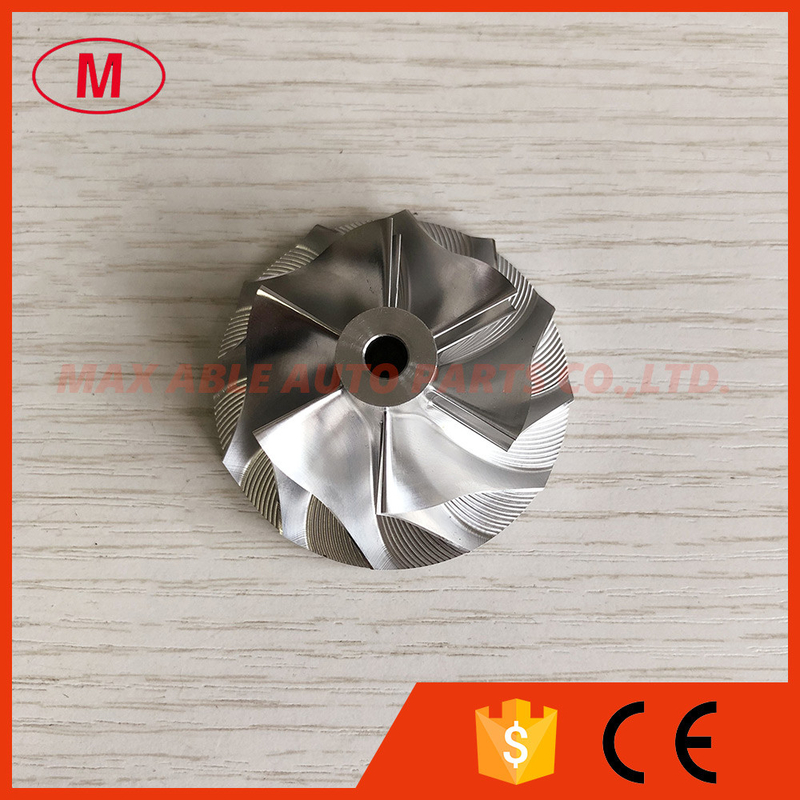

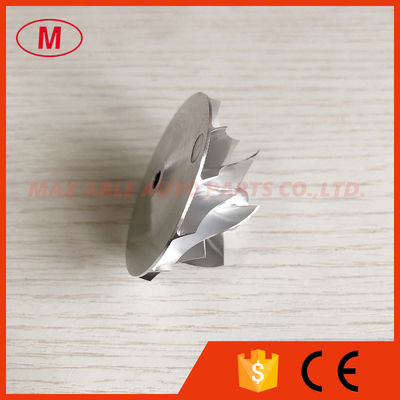

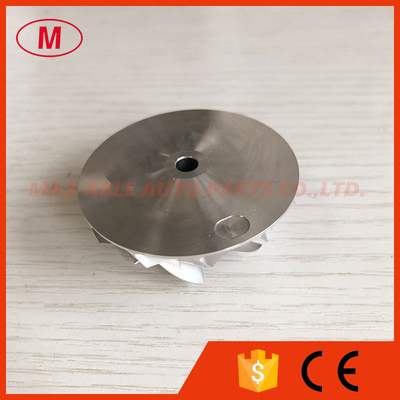

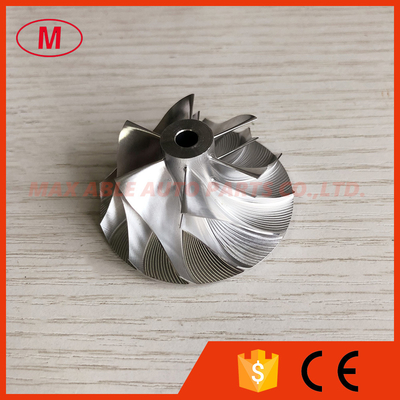

2.TD0435 10T-SB 35.50/49.00mm 6+6 blades Turbo Milling/billet compressor wheel for 49135-04000
3.Size:
Nose Diameter:11.81mm
inducer:35.50mm
Exducer:49.00mm
Tip height:4.56mm
Overall height:24.00mm
Superback:1.90mm
Bore size:5.00mm
Trailing Angle:50
Cutback:0.0
SP height angle:-6.60
Blade height:18.99mm
Splitter height:13.30mm
Tapered tip Angle:0 degree
6+6 blades
Fit for OE compressor housing
Forward rotation
4.High quality and competitive price.
5.Any questions please send email to me.
We have more size ,if you want ,please don't hesitate to contact me.
