| Markenname: | NO |
| Zertifizierung: | ISO |
| Model Number: | GT15-25 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:GT15-25 forward

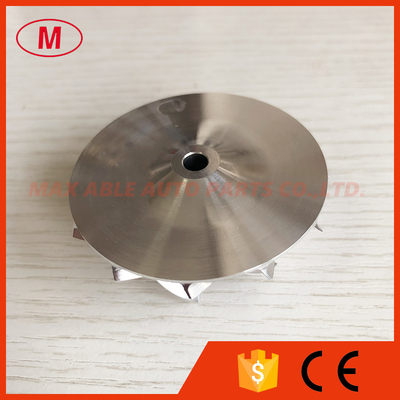

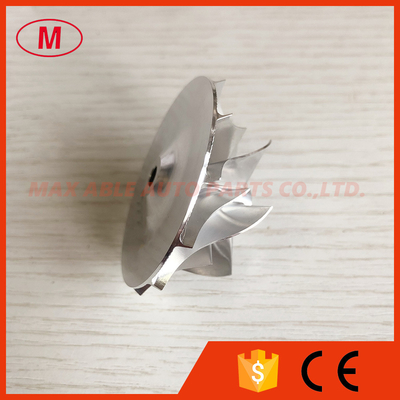

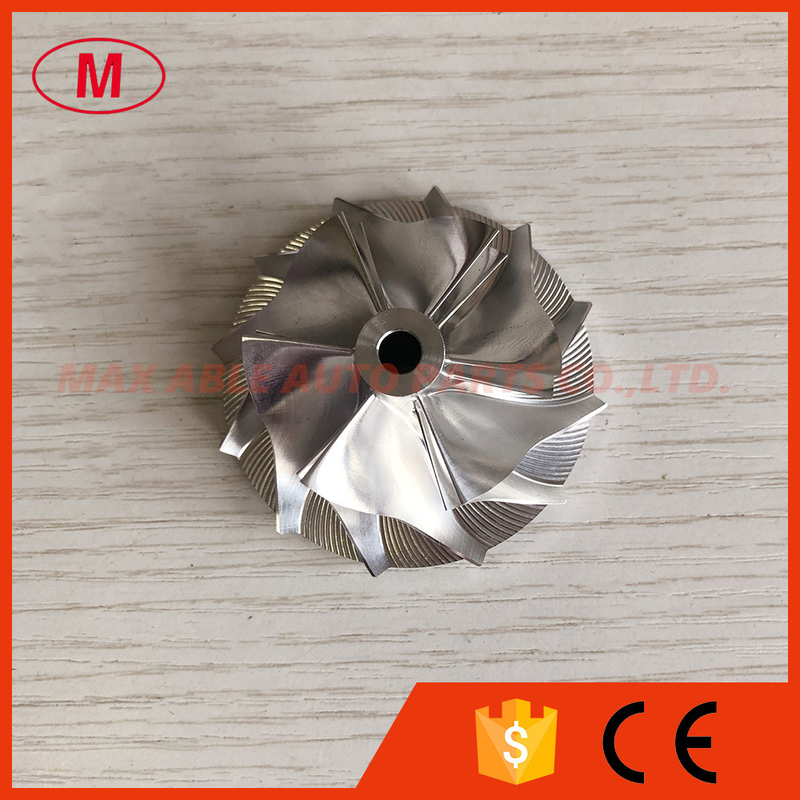

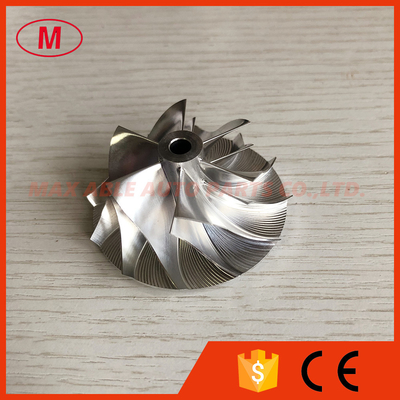

2.GT15-25 38.50/52.19mm 6+6 blades high performance turbo billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:10.60mm
inducer:38.50mm
Exduder:52.19mm
Tapered tip exducer:55.19mm
Tip height:3.60mm
Superback:2.39mm
Overall height:24.67mm
bore size :5.08mm
Trailing Angle:70
Cutback:0.00
SP height angle:-3.00
Splitter height:14.10
Blade height:20.35mm
6+6 blades
Forward rotation
Tapered tip angle:30 degree
Fit for OE compressor housing
4.if you want more details, please send email to me.
We can produce as your requirement.
All the compressor wheel have been balanced.
The more models we also have.
