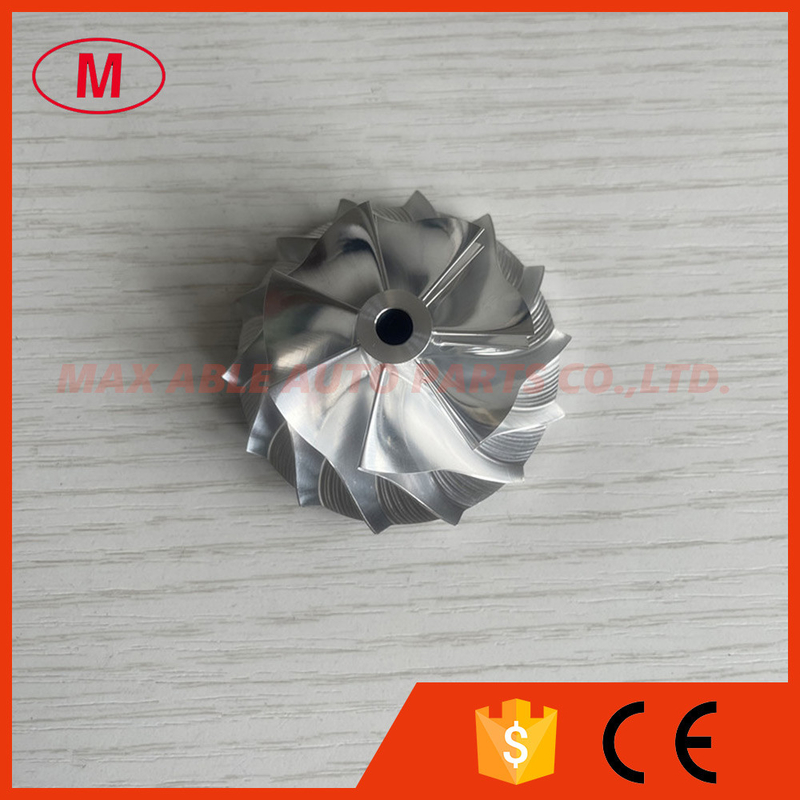

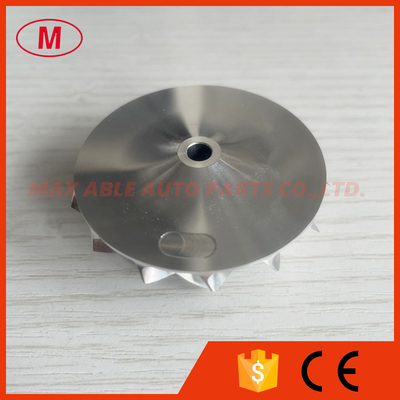

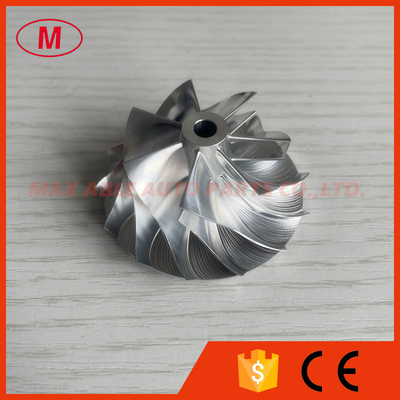

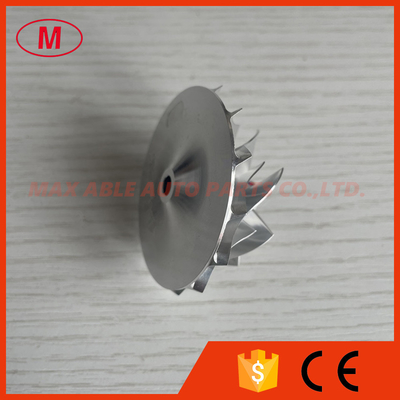

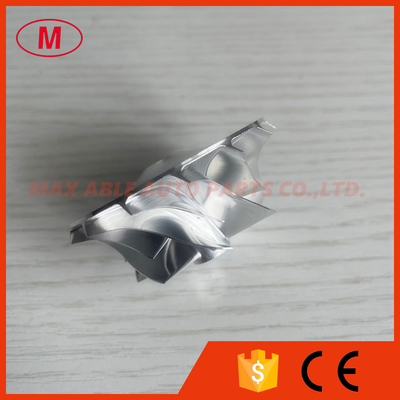

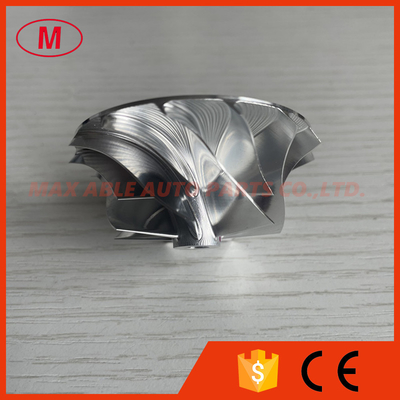

GT15-25 38.58/52.00mm 7+7 blades high performance turbo milling/aluminum 2618 /billet compressor wheel

3.Size:

Nose diamter:10.36mm

inducer:38.58mm

Exduder:52.00mm

Tapered tip exducer:55.39mm

Tip height:3.94mm

Superback:2.76mm

Overall height:26.10mm

bore size :5.08mm

bore type:through

Trailing angle:60 degree

Cutback:4.5mm

SP height angle:-8.50

Blade height:21.40mm

Splitter height:14.65mm

It is custom size ,please check carefully before buying.

7+7 blades

Forward rotation

Tapered tip angle:30 degree

4.High quality and competitive price.

5.if you want more details, please send email to me.

We can produce as your requirement.

The more models we also have.

All the billet compressor wheels have been balanced.
