| Markenname: | NO |
| Zertifizierung: | ISO |
| Model Number: | CT10V |
| Minimum Order Quantity: | 1PC |
|---|---|
| Preis: | DISCUSS |
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |
1. MODEL:CT10V forward

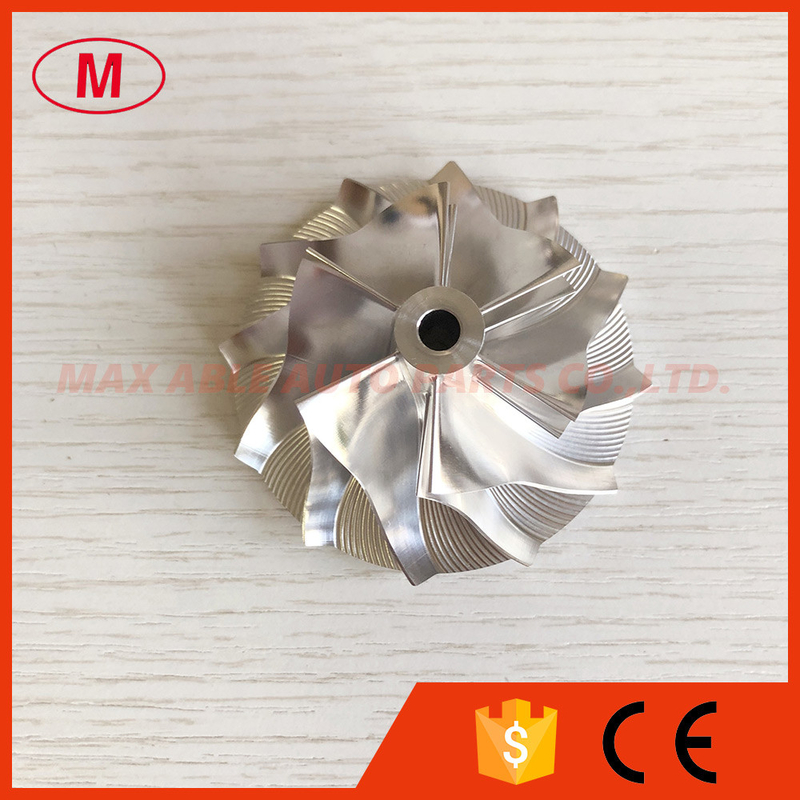

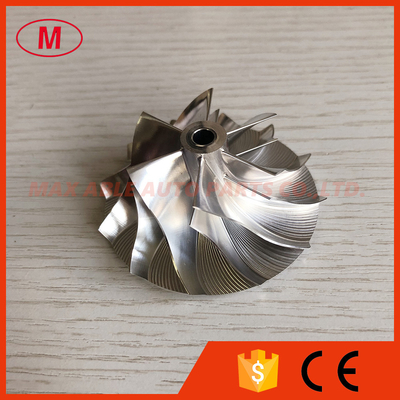

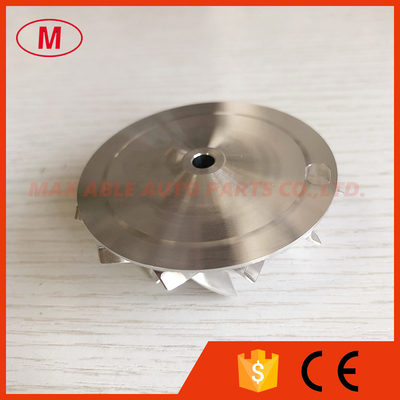

2. CT10V 38.87/58.01mm 17291-0L040 6+6 blades high performance turbo billet/milling/aluminum 2618 compressor wheel for Toyota Land Cruiser 2.0/3.0D 17201-0L040/30100/30101/30160/10181/30110/30010/33110/30180/30150
3.Size:
Nose diameter:10.99mm
inducer:38.87mm
Exducer:58.01mm
Tapered tip exducer:61.60mm
Tip height:4.11mm
Superback:2.45mm
Overall height:26.61mm
Bore size:5.10mm
Trailing angle:50
Cutback:0.0
Sp height angle:-4.20
Splitter height:15.50mm
Blade height:22.68mm
6+6 blades
Forward rotation
Tapered tip angle:30 degree
It is for OE compressor housing
Application:
17201-0L040
17201-30100
17201-30101
17201-30160
17201-10181
17201-30110
17201-30010
17201-33110
17201-30180
17201-30150
4.High quality and competitive price.
5.Any questions please send email to me,we have many size.
All the compressor wheel have been balanced.
