| Model Number: | K04 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 10000pcs |
1.Model:K04 forward

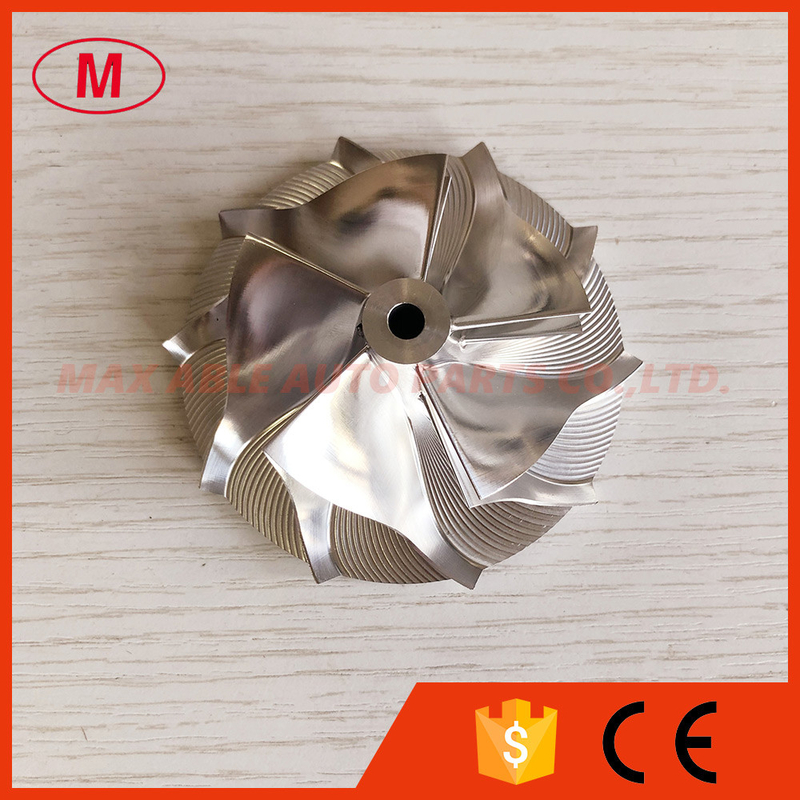

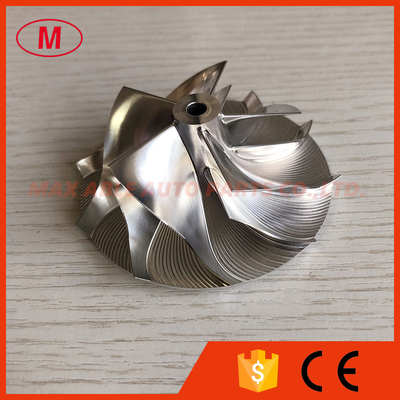

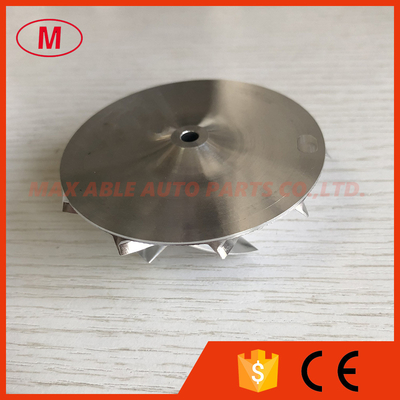

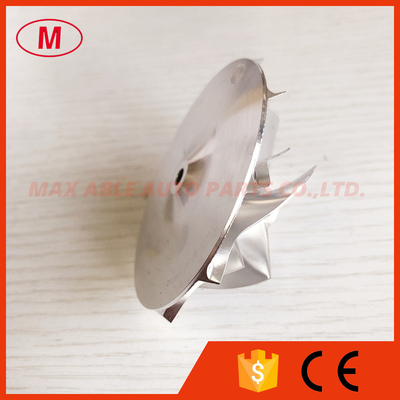

2.K04 5+5 blades 49.62/68.58mm high performance turbo milling/aluminum 2618/billet compressor wheel
3.SIZE:
Nose diameter:11.55mm
inducer:49.62mm
Exducer:68.58mm
Tapered tip exducer:72.83mm
Tip height:4.48mm
Superback:2.60mm
Overall height:27.95mm
bore size :4.61mm
bore type:through
Trailing Angle:60 degree
Cutback:4.9mm
SP Height angle:-5.00
Blades height:23.75mm
Splitter height:14.00mm
5+5 blades
Forward rotation
Tapered tip Angle:30 degree
It is custom size ,please check carefully before buying.
4.Good quality and competitive price
5.please email to me or talk to me on online ,if you want to know more details.
All the compressor wheels have been balanced.
We can produce as your requirement.
