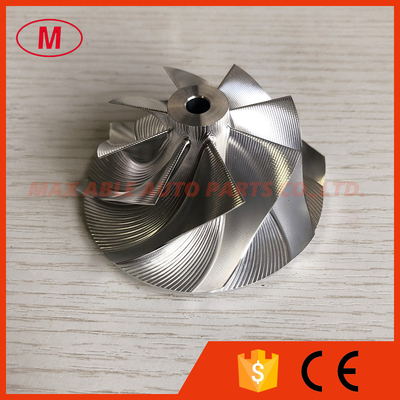

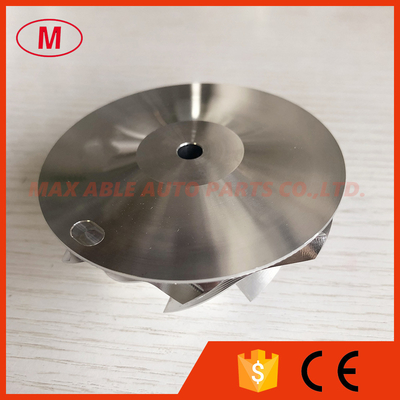

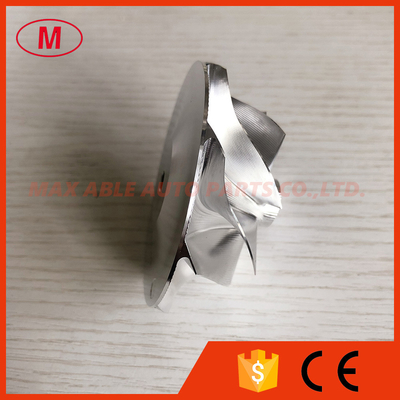

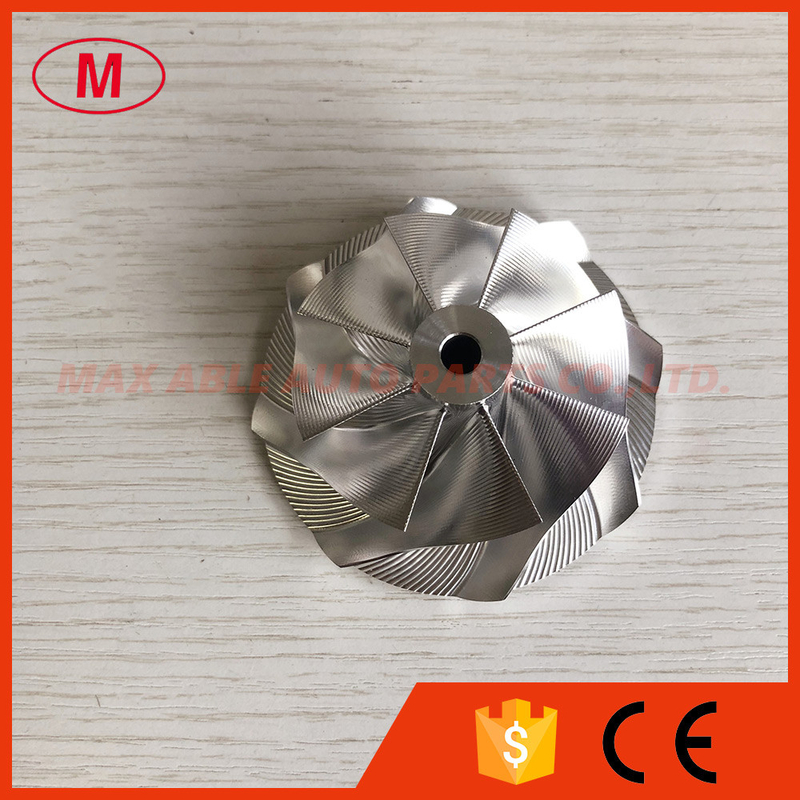

GTX3071 GEN ll reverse 8+0 blades 54.06/71.40mm point milling turbo billet/milling/aluminum 2618 compressor wheel

3.Size:

Nose diamter:15.30mm

inducer:54.06mm

Exduder:71.40mm

Tapered tip exducer:73.77mm

Tip height:5.78mm

Superback:2.36mm

Overall height:34.60mm

bore size :6.01mm

Traling angle:40

Cutback:6.6

SP height angle:0.00

Splitter height:0.00

Blade height:27.10mm

Splitter height:0.00

8+0blades

reverse rotation

Tapered tip angle:14 degree

It is for OE compressor housing

4.High quality and competitive price.

5.if you want more details, please send email to me.

We can produce as your requirement.

The more models we also have.
