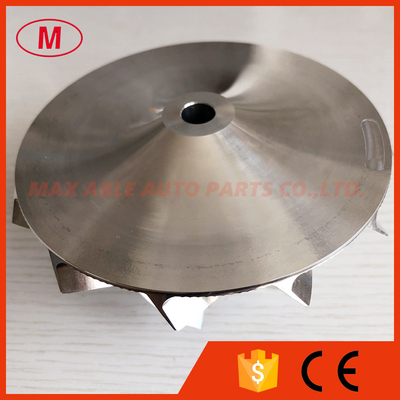

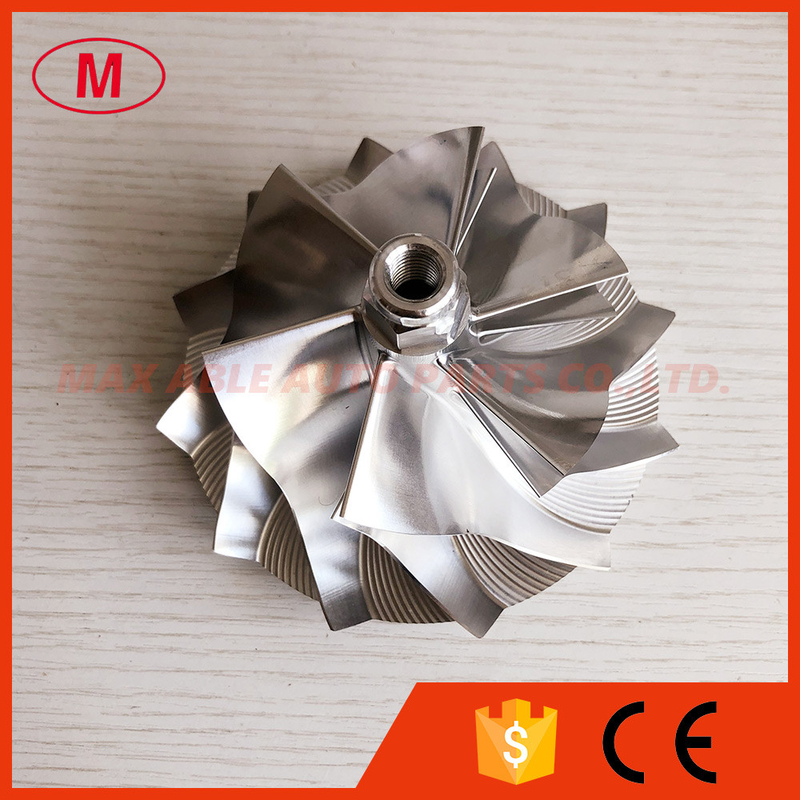

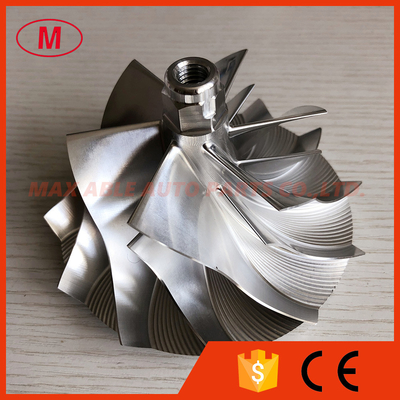

S400 174513 80.30/111.10mm 6+6 blades high performance turbo billet/milling/aluminum 2618 compressor wheel for racing

1. MODEL:S400 forward

2.S400 174513 80.30/111.10mm 6+6 blades high performance turbo billet/milling/aluminum 2618 compressor wheel for racing

3.Size:

Nose diameter:19.83mm

inducer:80.30mm

Exduder:111.10mm

Tapered tip exducer:120.44mm

Tip height:9.09mm

Superback:7.55mm

Overall height:75.40mm

bore size :10.00mm

Trailing Angle:55

Bore type:Threaded-M10x1.5LHT

Cutback:0.00

SP height angle:-9.80

Sp height :34.00mm

Blade height:48.33mm

6+6 blades

Tapered tip Angle:30 degree

Forward rotation

It is custom size ,please check carefully before buying.

4.High quality and competitive price.

5.if you want more details, please send email to me.

We can produce as your requirement.

The more models we also have.
