| Model Number: | TD04 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | , T/T, Western Union, MoneyGram |
| Supply Ability: | 1000PCS /MONTHS |
1. MODEL:TD04 Forward

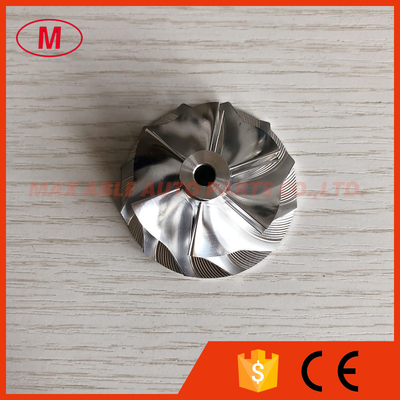

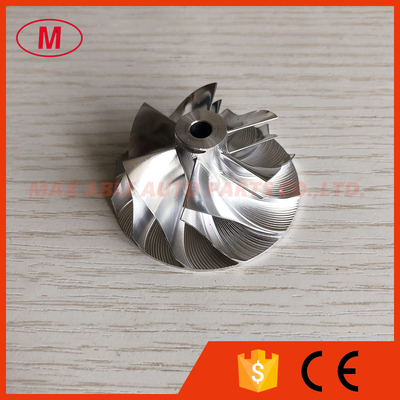

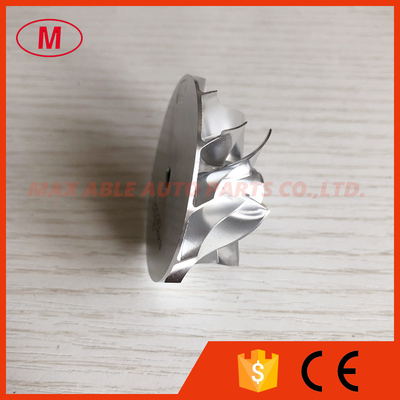

2. TD04 11G-FB 49177-43300 6+6 blades 37.90/49.00mm Turbo Billet/Milling/aluminum 2618 compressor wheel for 49177-02500
3.Size:
Nose diameter:11.76mm
Inducer:37.90mm
Exducer:49.00mm
Tip height:4.76mm
Superback:0.00mm
Overall height:22.49mm
Bore size:5.00mm
Trailing angle:50
Cutback:0.0
SP height angle:-6.70
Blade height:18.99mm
Splitter height:13.45mm
6+6 blades
forward rotation
Tapered tip angle:0 degree
It is for OE compressor housing
4.High quality and competitive price.
5.Any questions please send email to me.
We can do as your requirement .
All the compressor wheels have been balanced.
