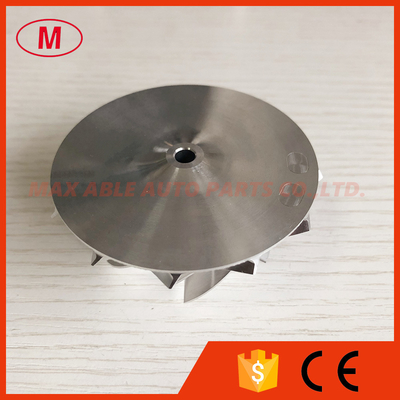

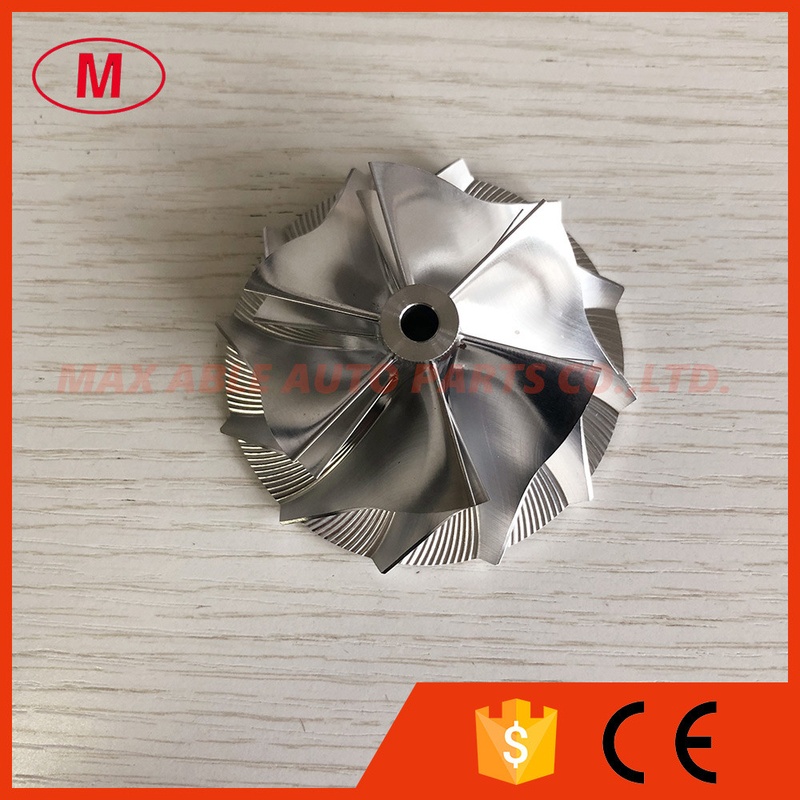

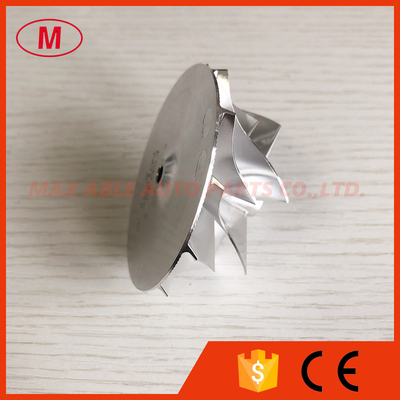

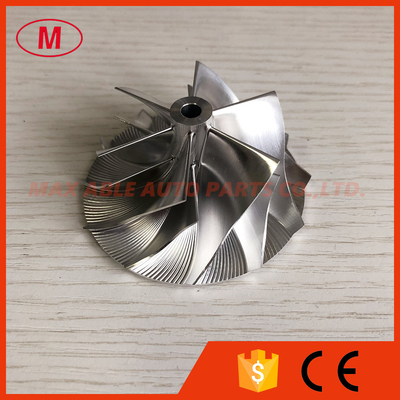

RHF5 reverse 50.50/66.00mm 6+6 blades high performance Turbo Billet/milling/aluminum 2618 compressor wheel

1. MODEL:RHF5 reverse

2.RHF5 reverse 50.50/66.00mm 6+6 blades high performance Turbo Billet/milling/aluminum 2618 compressor wheel

3.Size:

Nose diameter:10.60mm

inducer:50.50mm

Inducer:66.00mm

Tapered tip exducer:69.57mm

Tip height:4.09mm

Superback:1.53mm

Overall height:32.00mm

bore size :5.10mm

Trailing Angle:60 degree

Cutback:3.0

SP height angle:-4.30

Blade height:27.66mm

Splitter height:18.20mm

Tapered tip Angle: 30 degree

It is custom size ,please check carefully before buying

6+6 blades

reverse rotation

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheel have been balanced.
