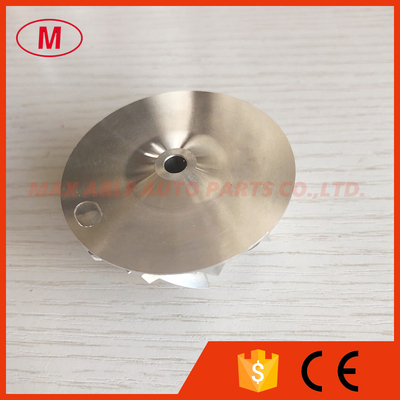

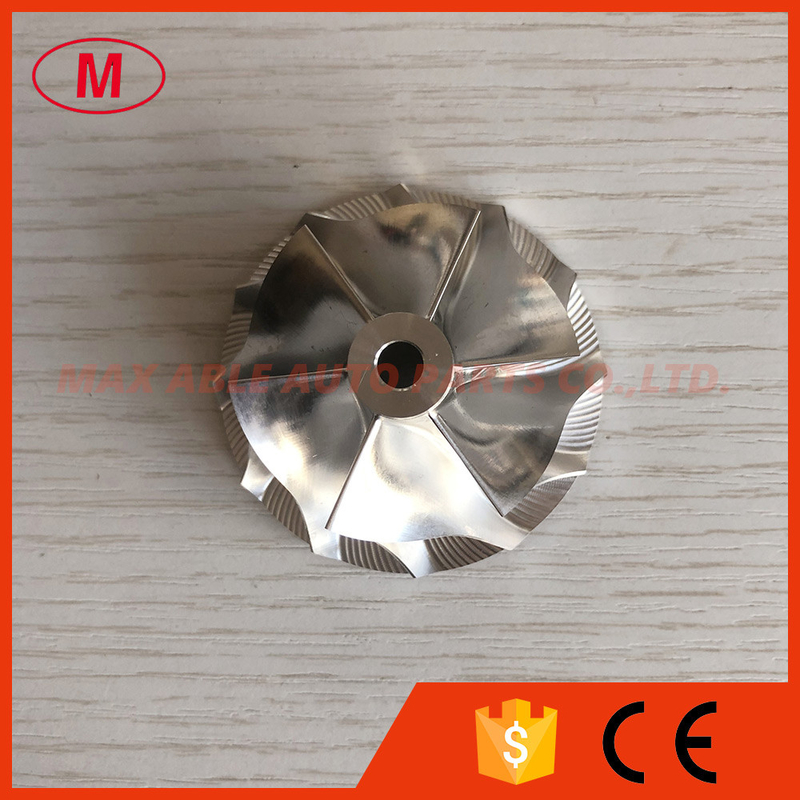

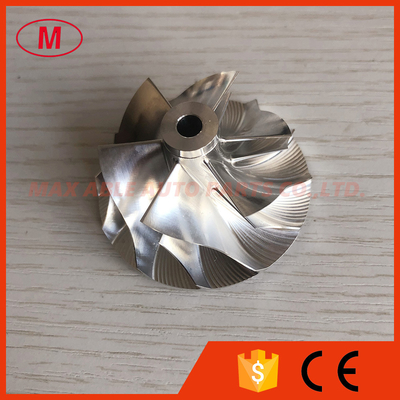

RHF5 40.65/52.50mm 6+6 blades turbo turbocharger aluminum 2618/milling/billet compressor wheel.

1. MODEL:RHF5 forward

2.RHF5 40.65/52.50mm 6+6 blades turbo turbocharger aluminum 2618/Billet/milling compressor wheel.
3.Size:

Nose diameter:11.90mm

Inducer:40.65mm

exducer:52.50mm

Tip height :4.61mm

superback:1.53mm

Overall height:28.30mm

Bore size:5.10mm

bore type:through

Trailing angle:60

SP height angle:0.00

Blade height:21.65mm

Splitter height:12.07mm

Cutback:3.5

6+6 blades

Forward rotation

Tapered tip angle:0 degree

It is for OE compressor housing

4.High quality and competitive price.

5.Any questions please send email to me.

All the compressor wheels have been balanced.

We can produce as your requirement.
