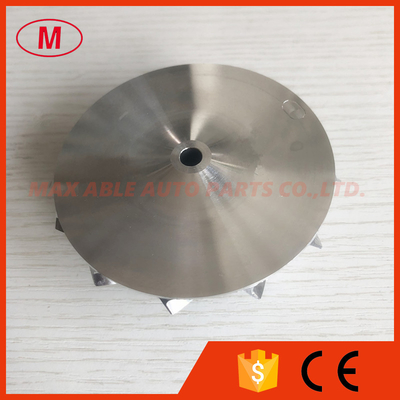

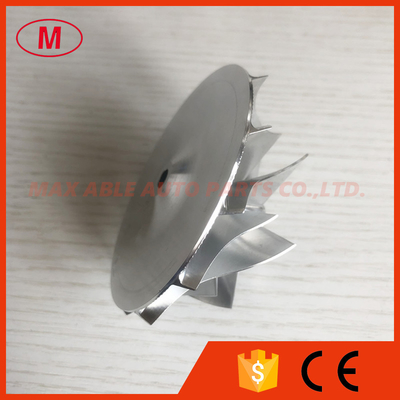

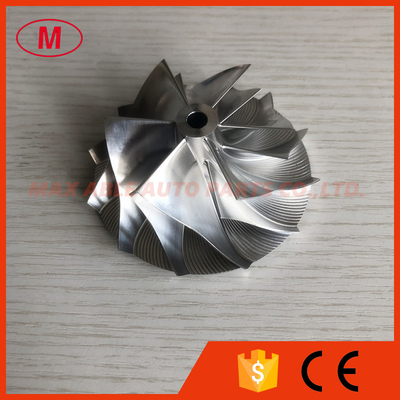

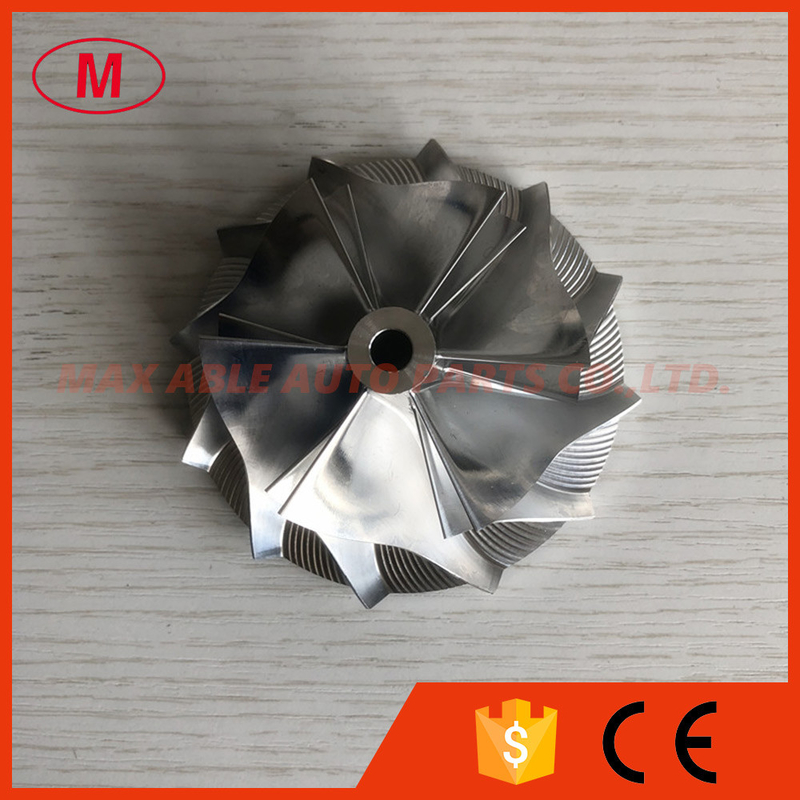

TD05H 61.33/82.00mm 6+6 blades Turbocharger Billet/aluminum 2618/milling compressor wheel

1. MODEL:TD05H forward

2.TD05H 61.33/82.00mm 6+6 blades Turbocharger Billet/aluminum 2618/milling compressor wheel

3.Size:

Nose diameter:13.72mm

inducer:61.33mm

Exduder:82.00mm

Tapered tip exducer:87.37mm

Tip height:5.65mm

Superback:2.90mm

Overall height:35.60mm

bore size :6.50mm

Trailing angle:60

Cutback:0.0

Blade height:30.98mm

SP height angle:-5.00

Splitter height:22.10mm

6+6 blades

Forward rotation

Tapered tip angle: 30 degree

It is custom size ,please check carefully before buying.

4.High quality and competitive price.

5.if you want more details, please send email to me.

We can produce as your requirement.

The more models we also have.
