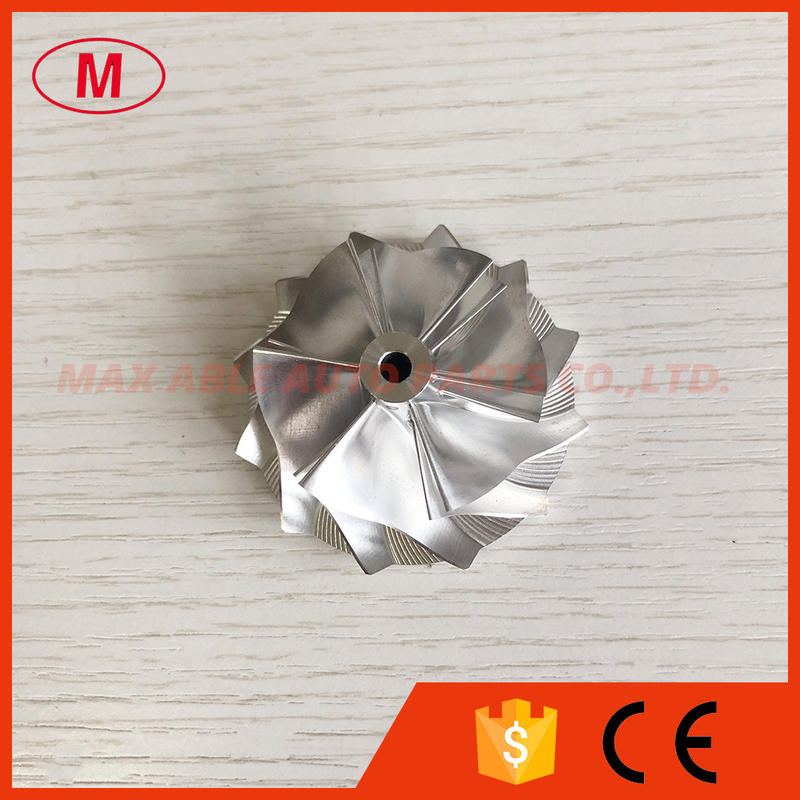

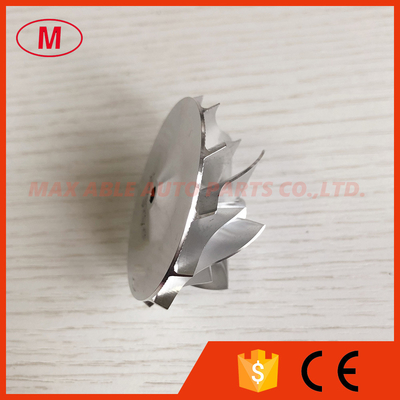

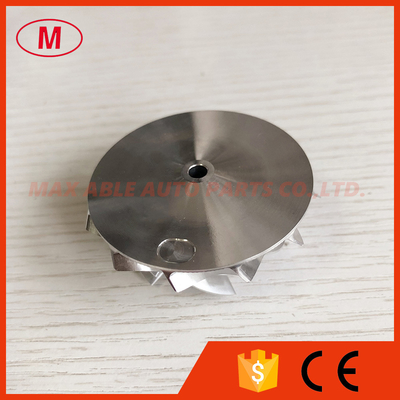

TD03 10T 6+6 blades 38.00/48.00mm high performance Turbo milling/aluminum 2618/billet compressor wheel

1. MODEL:TD03 10T FORWARD

2.TD03 10T 6+6 blades 38.00/48.00mm high performance Turbo Billet/milling/aluminum 2618 compressor wheel

3.Size:

Nose diameter:9.25mm

Inducer:38.00mm

Exducer:48.00mm

Tapered tip exducer:51.93mm

Tip height:4.40mm

Superback:1.68mm

Overall height:22.49mm

bore size :4.00mm

Bore type:through

Trailing angle:55 degree

Cutback:0.0mm

SP height angle:-5.30

blade height:18.79mm

Splitter height:13.55mm

6+6 Blades

forward rotation

Tapered tip angle:30 degree

It is custom size ,please check carefully before buying

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheels have been balanced

we can also produce as your requirement.
