| Markenname: | NO |
| Zertifizierung: | ISO |
| Model Number: | TD05H 16G reverse |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:TD05H 16G Reverse

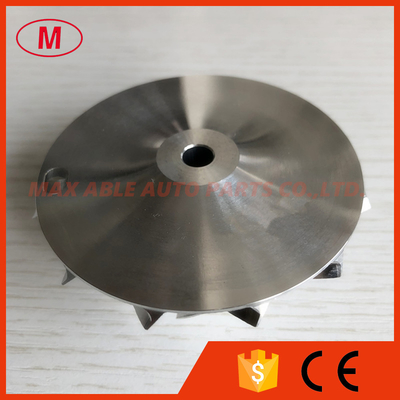

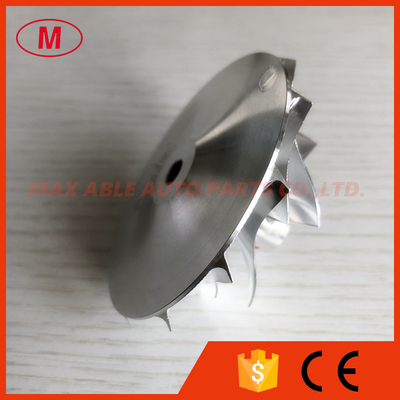

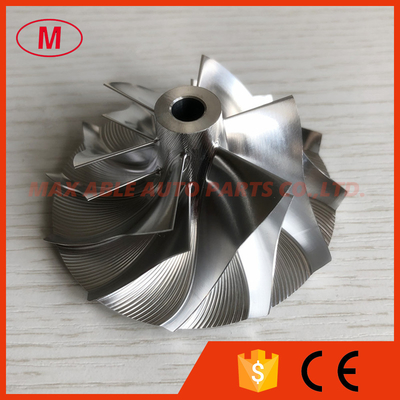

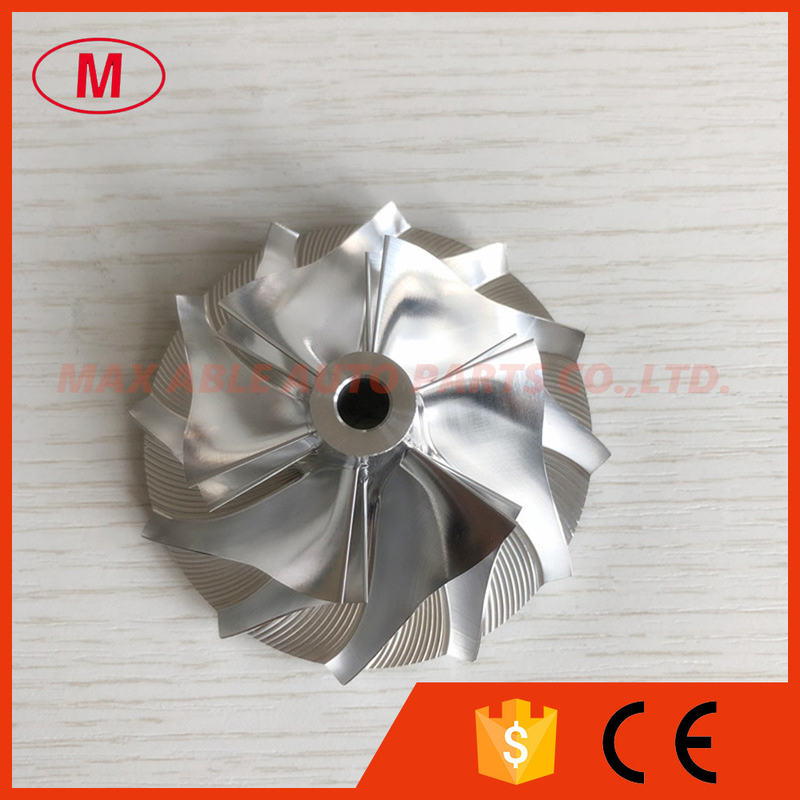

2.TD05H 16G 48.30/68.01mm 6+6 blades 49178-01560 reverse high performance standard blade Turbo Billet/milling/Aluminum 2618 compressor wheel
3.Size:
Nose diameter:13.72 mm
inducer:48.30mm
Inducer:68.01mm
Tapered tip exducer:72.18mm
Tip height:4.61mm
Superback:2.90mm
Overall height:31.50mm
bore size :6.50mm
Trailing angle:60
Blade height:23.60mm
Tapered tip Angle: 30 degree
Cutback:0.0
6+6 blades
Reverse rotation
It is for OE compressor housing
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the compressor wheel have been balanced.
