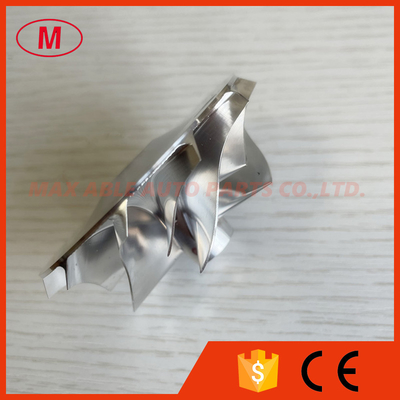

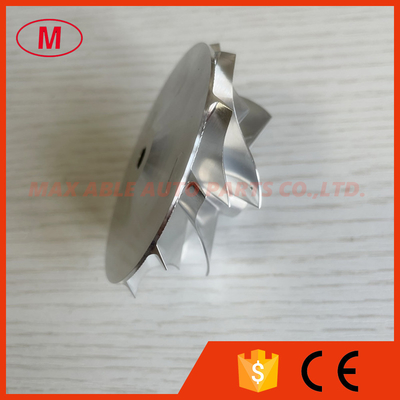

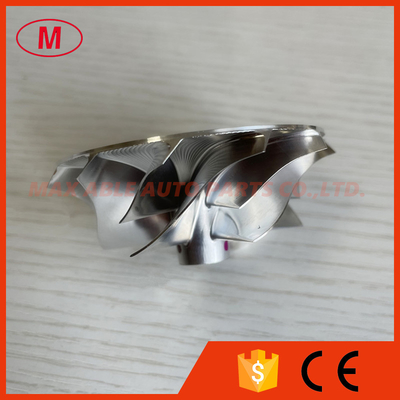

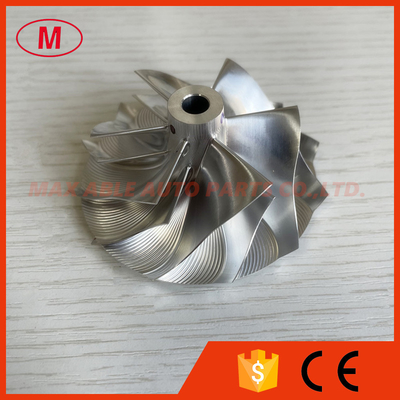

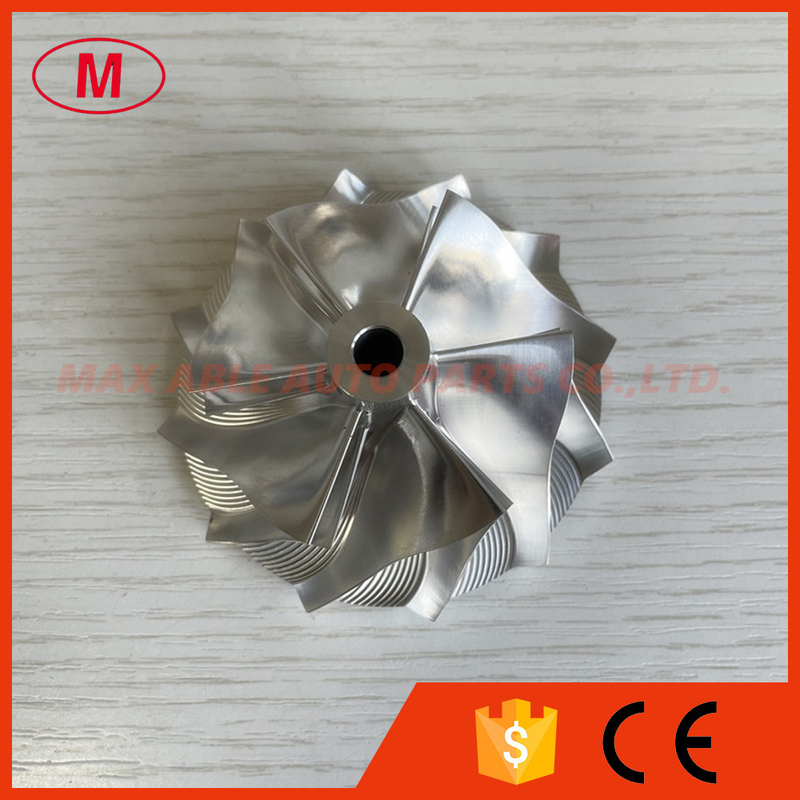

TD05H 20G reverse 52.56/68.01mm 49179-43400 6+6 blades high performance standard blade height Billet compressor wheel

TD05H 20G reverse 52.56/68.01mm 49179-43400 6+6 blades high performance standard blade height Billet compressor wheel

    • TD05H 20G reverse 52.56/68.01mm 49179-43400 6+6 blades high performance standard blade height Billet compressor wheel
    • TD05H 20G reverse 52.56/68.01mm 49179-43400 6+6 blades high performance standard blade height Billet compressor wheel
    • TD05H 20G reverse 52.56/68.01mm 49179-43400 6+6 blades high performance standard blade height Billet compressor wheel
    • TD05H 20G reverse 52.56/68.01mm 49179-43400 6+6 blades high performance standard blade height Billet compressor wheel
    • TD05H 20G reverse 52.56/68.01mm 49179-43400 6+6 blades high performance standard blade height Billet compressor wheel
    • TD05H 20G reverse 52.56/68.01mm 49179-43400 6+6 blades high performance standard blade height Billet compressor wheel
    • TD05H 20G reverse 52.56/68.01mm 49179-43400 6+6 blades high performance standard blade height Billet compressor wheel

    Produktdetails:

    Markenname: NO
    Model Number: TD05H 20G reverse

    Zahlung und Versand AGB:

    Minimum Order Quantity: 1PC
    Packaging Details: NEUTRAL PACKING
    Delivery Time: 3-7 DAYS
    Payment Terms: Western Union, MoneyGram, T/T,PAYPAL
    Supply Ability: 1000PCS
    Kontakt
    Ausführliche Produkt-Beschreibung

    1. MODEL:TD05H 20G reverse

    2.TD05H 20G reverse 52.56/68.01mm 49179-43400 6+6 blades high performance standard blade height Turbo Billet/milling/aluminum 2618 compressor wheel

    3.Size:

    Nose diameter:13.50mm

    Inducer:52.56mm

    Exducer:68.01mm

    Tapered tip exducer:73.05mm

    Tip height:5.37mm

    Superback:2.90mm

    Overall height:31.50mm

    bore size :6.50mm

    bore type:through

    Trailing Angle:50 degree

    Cutback:0.0mm

    Blade height :22.94mm

    Splitter height:15.65mm

    SP height angle:-4.00

    6+6 BLADES.

    Tapered tip angle: 30 degree

    FIT FOR OE compressor housing

    Reverse rotation

    4.High quality and competitive price.

    5.if you want more details, please send email to me.

    All the compressor wheels have been balanced.

    TD05H 20G reverse 52.56/68.01mm 49179-43400 6+6 blades high performance standard blade height Billet compressor wheel

    TD05H 20G reverse 52.56/68.01mm 49179-43400 6+6 blades high performance standard blade height Billet compressor wheelTD05H 20G reverse 52.56/68.01mm 49179-43400 6+6 blades high performance standard blade height Billet compressor wheelTD05H 20G reverse 52.56/68.01mm 49179-43400 6+6 blades high performance standard blade height Billet compressor wheelTD05H 20G reverse 52.56/68.01mm 49179-43400 6+6 blades high performance standard blade height Billet compressor wheelTD05H 20G reverse 52.56/68.01mm 49179-43400 6+6 blades high performance standard blade height Billet compressor wheelTD05H 20G reverse 52.56/68.01mm 49179-43400 6+6 blades high performance standard blade height Billet compressor wheel
