| Place of Origin: | CHINA |
| Markenname: | NO |
| Model Number: | RHF5 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT/western union/paypal |
| Supply Ability: | 1000 |

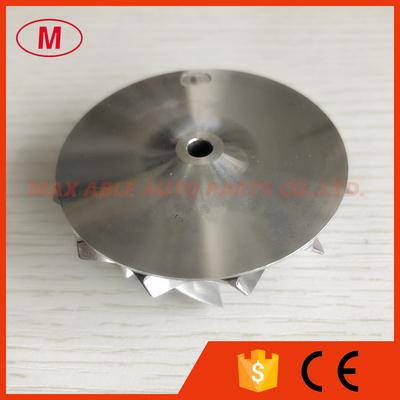

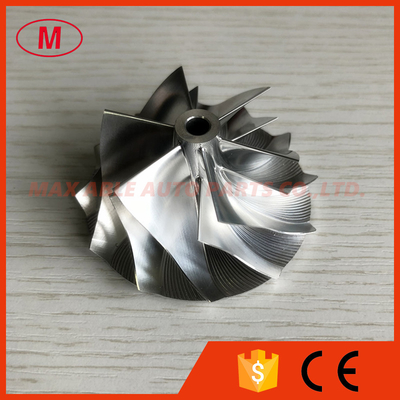

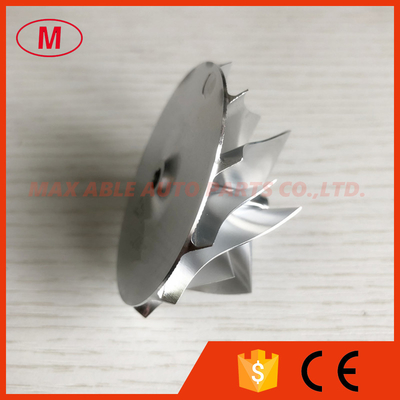

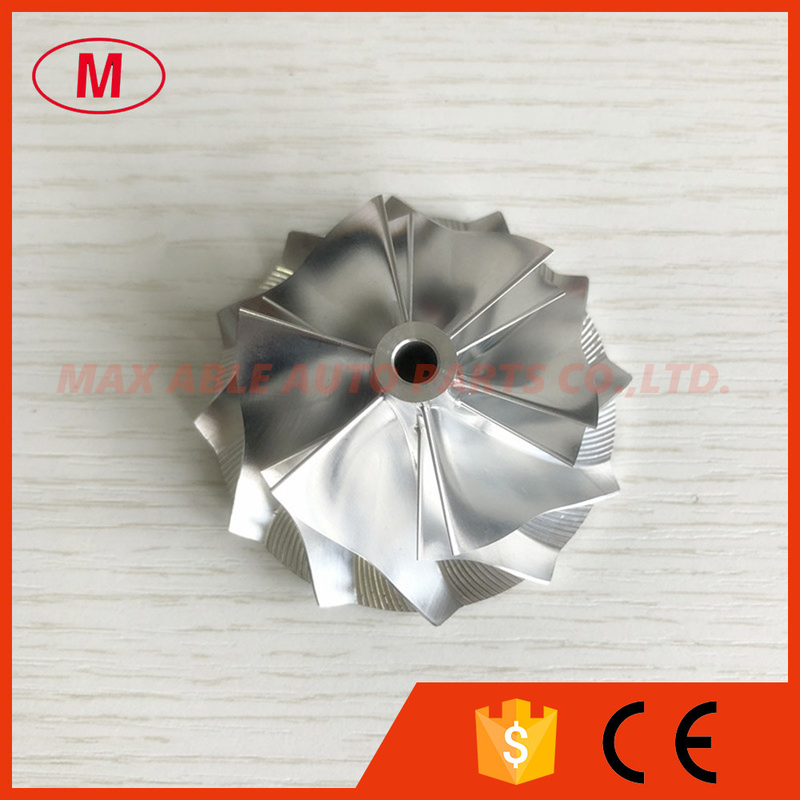

1. MODEL:RHF5 Forward
2.RHF5 44.90/58.00mm 6+6 blades high performance Billet/milling/aluminum 2618 compressor wheel for VF54
3.Size:
Nose diameter:10.11mm
Inducer:44.90mm
Exducer:58.00mm
Tapered tip exducer:61.83mm
Tip height:4.32mm
super back:1.53mm
overall height:28.30mm
bore size :5.10mm
Bore type:through
Trailing angle:60
Cutback:3.0
Blades height:24.88mm
Splitter height:17.05mm
SP height angle:-5.50
6+6 blades
forward rotation
Tapered tip angle:30 degree
It is for OE compressor housing
4.Application:
VF54
5.High quality and competitive price.
6.Any questions please send email to me.
All the compressor wheels have been balanced.
