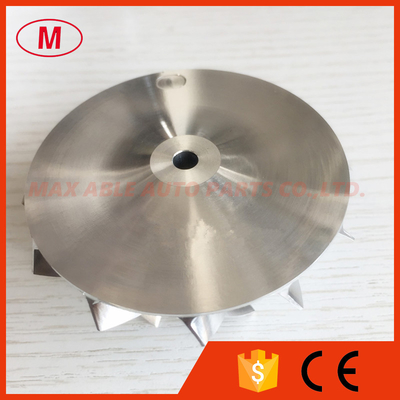

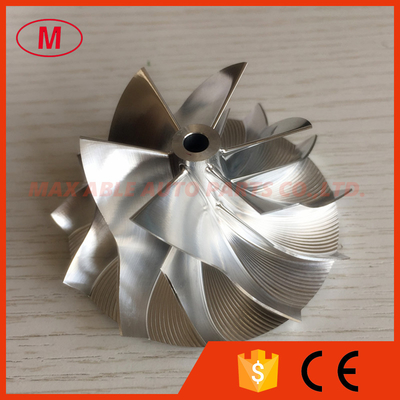

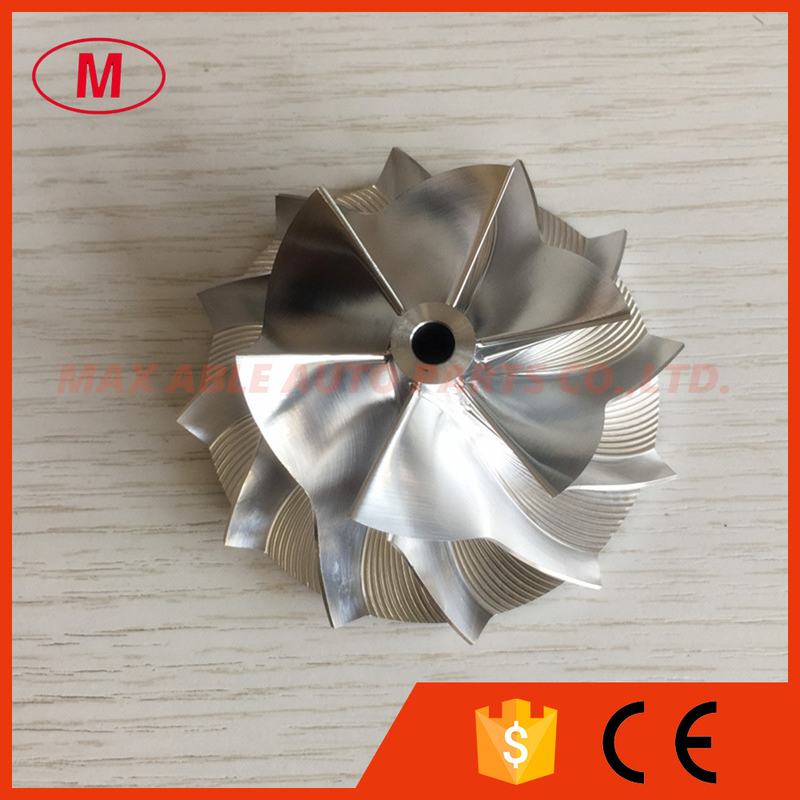

RHF5 6+6 blades 45.00/64.89mm high performance turbo turbocharger aluminum 2618/Billet/milling compressor wheel

1. MODEL:RHF5 forward

2.RHF5 6+6 blades 45.00/64.89mm high performance turbo turbocharger aluminum 2618/Billet/milling compressor wheel
3.Size:

Nose diameter:10.05mm

Inducer:45.00mm

exducer:64.89mm

Tapered tip exducer:70.86mm

Tip height :6.28mm

superback:1.85mm

Overall height:29.00mm

Bore size:5.10mm

Trailing Angle:60

Cutback:-19.3

SP height Angle:-8.50

Blade height:30.17mm

Splitter Height:15.00

6+6 blades

Tapered tip Angle:29.5 degree

It is Custom size,please check carefully before buying.

Forward rotation

4.High quality and competitive price.

5.Any questions please send email to me.

All the compressor wheel have been balanced.

We can produce as your requirement.
