| Markenname: | NO |
| Model Number: | K04 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | NETRUAL PACKING |
| Delivery Time: | 3-4 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000PCS |
1.Model:K04 forward

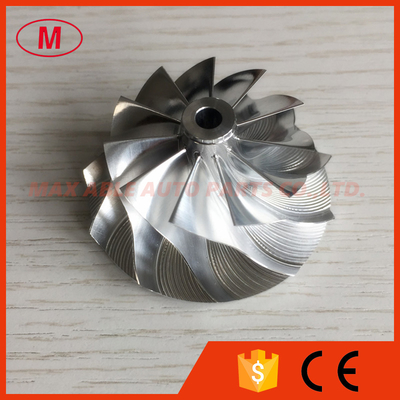

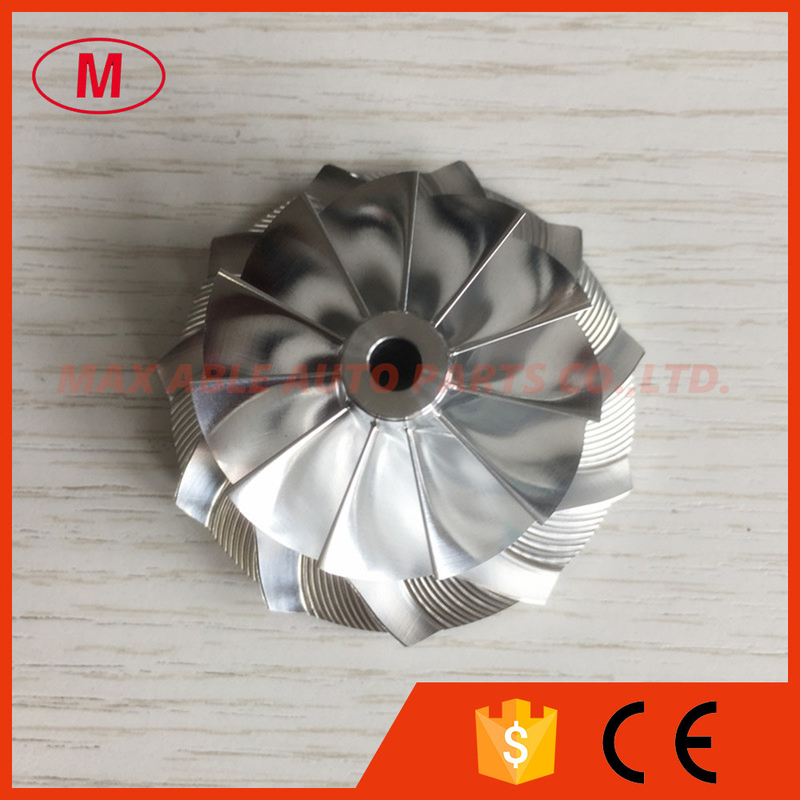

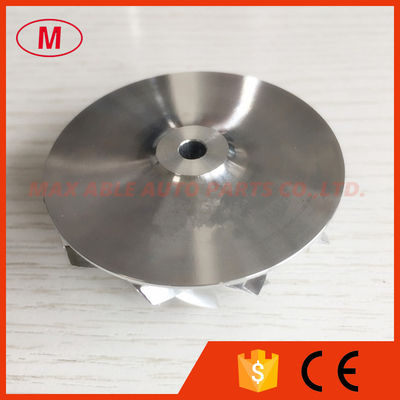

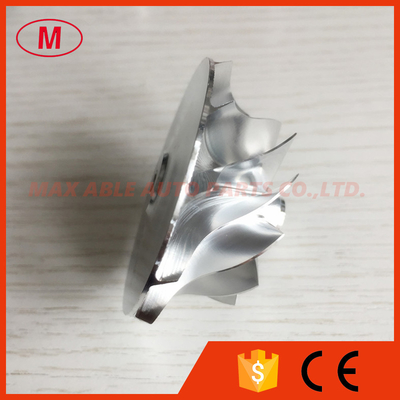

2.turbo Part no. :K04 37.84/50.96mm 5304-123-2209 11+0 blades turbo billet/milling/aluminum 2618 compressor wheel for 5303-988-0099/102/110/112/117/118/122/142/150/151/162, 5304-988-0057
3.SIZE:
Nose diameter:10.15mm
inducer:37.84mm
Exducer:50.96mm
Tapered tip exducer:53.00mm
Tip height:4.14mm
Superback:1.80mm
Overall height:25.67mm
bore size :4.61mm
bore type:through
Cutback:0.0
Trailing angle:45
Cutback:0.0
SP height angle:0.00
Blades height:19.39mm
Splitter height:0.00mm
11+0 blades
Forward rotation
Tapered tip angle: 18 degree
It is for OE compressor housing
4.Good quality and competitive price
5.Billet compressor wheel
6.Application:
5303-988-0099
5303-988-0102
5303-988-0110
5303-988-0112
5303-988-0117
5303-988-0118
5303-988-0122
5303-988-0142
5303-988-0150
5303-988-0151
5303-988-0162
5304-988-0057
7.Please send email to me or talk to me on online ,if you want to know more details.
All the compressor wheels have been balanced.
We can produce as your requirement.
